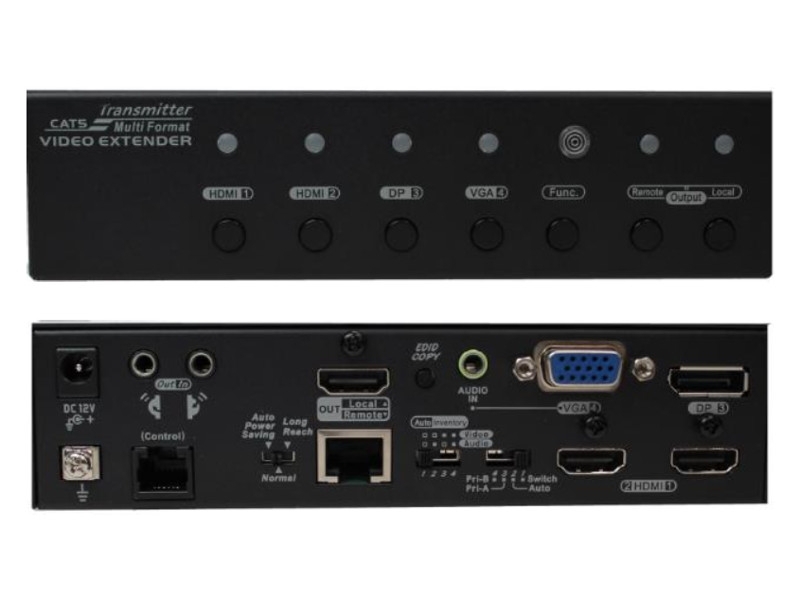

Rextron HDBaseT transmitter with four inputs (903.212)
The Rextron 903.212 HDBaseT transmitter with four inputs (2 x HDMI, 1 x VGA + Audio, 1 x DisplayPort) enables the loss-free transmission of the picture and sound signals via CAT cable up to 70 meters. Resolution up to UHD (4K) possible. Consits of Rextron transmitter and Bachmann control box.
Rextron HDBaseT transmitter switch set with four inputs 903.212
The plug-and-play solution for meeting points and meeting rooms - Use the Rextron HDBaseT 903.212 to share information from up to 4 devices (laptops) at a simple touch of a button. The buttons are already integrated into the appropriate Bachmann CUSTOM modules. The signals from the switch to the display or projector are either transmitted via HDBaseT or as an original HDMI signal.
Key features Rextron HDBaseT transmitter with four inputs (903.212):
- Input: 2x HDMI, 1x VGA + audio, 1 x DisplayPort
- Output: HDMI + HDBaseT via RJ45
- Max. video resolution:
UHD (3840 x 2160) for HDMI
Full HD (1920 x 1080) for VGA - Max. Cable length:
70m, Full HD (1920 x 1080)
35m, UHD (3840 x 2160) - Input voltage: 12V DC (from infeed adapter)
- Dimensions: 40 x 160 x 100 mm
- Housing: metal
- Accessories:
903.201 HDBaseT receiver
903.203 Mounting bracket
903.204 Custom module VGA + audio + button
903.205 Custom module HDMI + button
903.206 Custom module DisplayPort + button - Incl. Bachmann control box
Benefits Rextron HDBaseT at a glance:
- Zero-loss transmission of image and sound signals via CAT cable up to 70 metres
- Simple cabling
- Plug & Play
- No programming needed
- Resolution up to UHD (4K) possible
- Compatible with HDBaseT-capable displays and projectors
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
