Overview socket types / country connections

14 socket types are used worldwide, from type A to type N. The socket types differ in their shape and size, the contact pins and aspects such as protective contact or mechanical plug-in fuse. Different sockets are used in specific regions and countries. Which country has which connection or socket? The plug types M and N are missing in the graphic above. Type M is only rarely used in old devices in Great Britain and South Africa (replaced by type G). Type-N should become the international standard, but this has not (yet) become established. Type F (CEE 7/4) and Type C (CEE 7/16) are used in Germany. Type-C is also known as the Euro plug, as almost all European sockets can accept the plug. Only the United Kingdom and Ireland are exceptions.

Bachmann sockets / multiple sockets with country-specific connections

The different socket types of the countries or country-specific connections can be integrated into almost all Bachmann sockets and table connection panels (such as Bachmann Step, Desk, Casia, Conference, Power Frame, Coni). One country connection is possible for each socket strip. When ordered, the country connections are installed individually by Bachmann in the connection panels. By default, the connections are turned slightly for better usability (see the following list for exact degrees), but they can also be installed straight if required. Bachmann installs connections in almost all countries, a precise list and representation of the connections is provided in the following overview. Only the power connections for the USA have to be considered separately, as they require special certification. On customer request with a firmly defined purchase quantity, this is also possible!

Are you interested in a Bachmann socket strip with country connection? The country connections cannot be purchased as individual modules in the shop, but are offered separately. Feel free to send us an email or call us directly if you have any questions!

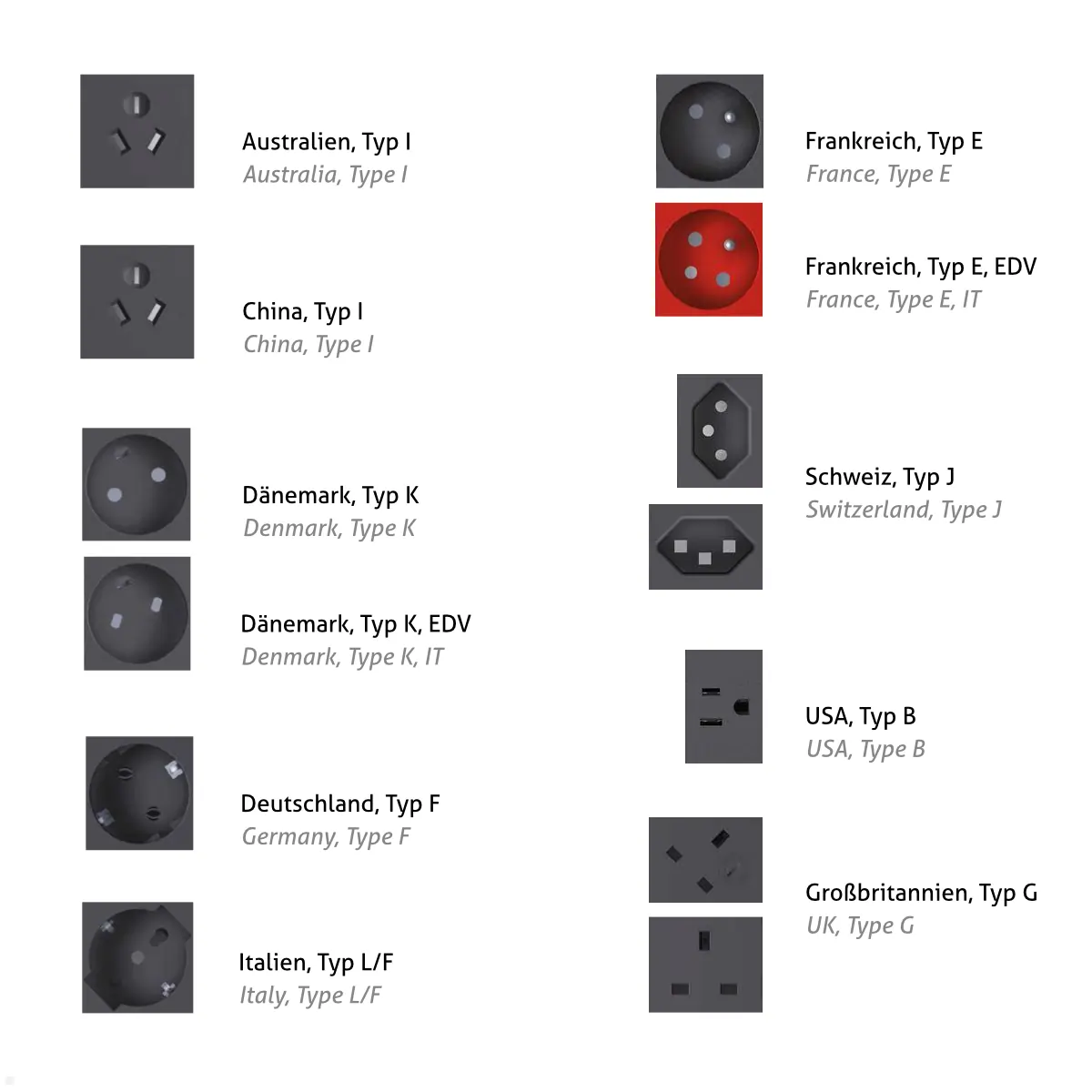

Australia - Bachmann socket strip with plug type I
M-AUS Typ I	Performance data: 10 A / 250 V Standard: AS, NZS 3112 Color: Black Alignment: rotated 90°	Module width: 44.8 mm
China - Bachmann socket strip with plug type I
M-CN Typ I	Performance data: 10 A / 250 V Standard: CPCS-CCC Color: Black Alignment: rotated 90°	Module width: 42.5 mm
Denmark - Bachmann socket strip with plug type K
M-DK Typ K	Performance data: 10 A / 250 V Standard: DS 107-2-D1 Color: Black Alignment: rotated 35°	Module width: 42.5 mm With increased contact protection (shutter)
M-DK EDV Typ K	Performance data: 10 A / 250 V Standard: DK 2-5a (DK IT) Color: Black Alignment: rotated 90°	Module width: 42.5 mm With increased contact protection (shutter)
Germany - Bachmann socket strip with plug type F
M-Schutzkontakt Typ F	Performance data: 16 A / 250 V max. 3500 W Standard: DIN VDE 0620-1, type DIN 49440, CEE 7/3 Color: black, red, white, gray Alignment: rotated 35° or 90°	Module width: 42.5 mm With increased contact protection (shutter)

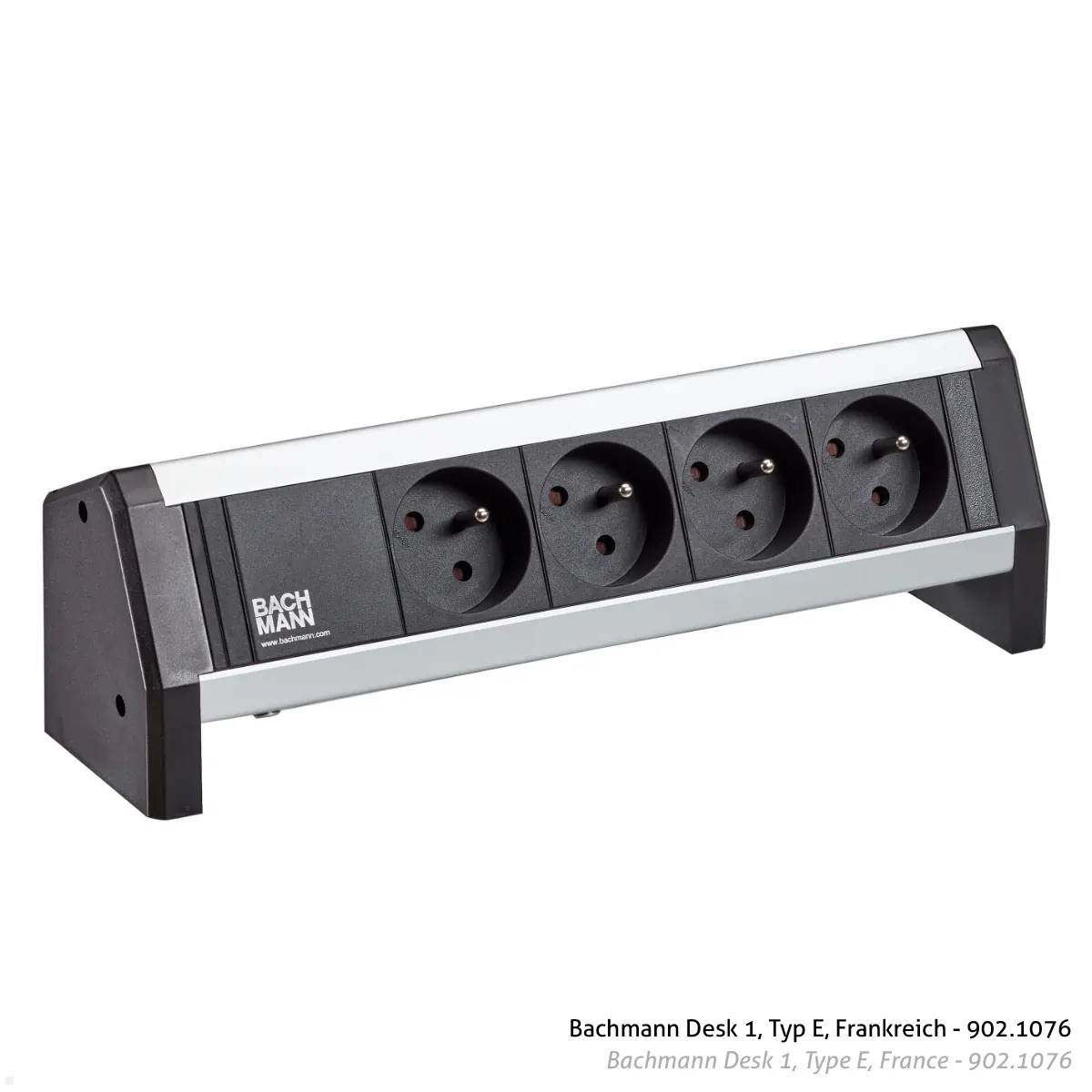

France - Bachmann socket strip with plug type E
M-UTE Typ E	Performance data: 16 A / 250 V max. 3500 W Standard: NF C 61-314, EEC 7/5 Color: black, red, white, gray Alignment: rotated 35°	Module width: 42.5 mm With increased contact protection (shutter)
M-UTE EDV Typ E	LPerformance data: 16 A / 250 V max. 3500 W Standard: NF C 61-314, EEC 7/5 Color: red Alignment: rotated 35°	Module width: 42.5 mm With increased contact protection (shutter) With additional mechanical plug-in fuse

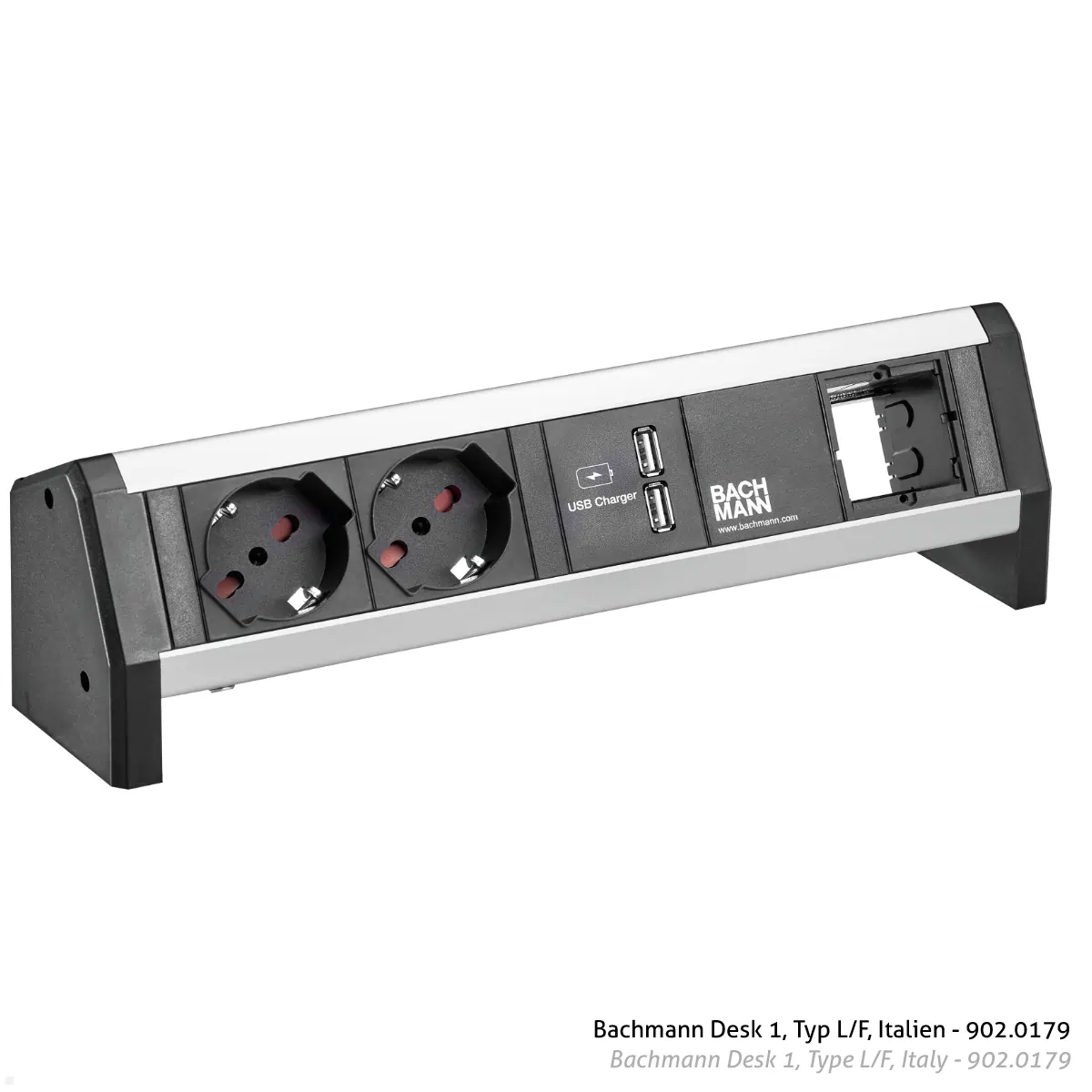

Italy - Bachmann power strip with plug type L / F
M-P40	Performance data: 16 A / 250 V Standard: CEI 23-50 Color: Black Alignment: rotated 35°	Module width: 45 mm With increased contact protection (shutter)
Switzerland - Bachmann socket strip with plug type J
M-CH T13 Typ J	Performance data: 10 A / 250 V max. 2300 W Standard: SEV 1011 Color: black, red Alignment: rotated 0°	Module width:35 mm With increased contact protection (shutter)
M-CH T23 Typ J	Performance data: 10 A / 250 V max. 2300 W Standard: SEV 1011 Color: black, red Alignment: rotated 90°	Module width: 42.5 mm With increased contact protection (shutter)
USA - Bachmann socket strip with plug type B
M-USA Typ B	Performance data: 15 A / 125 V Standard: NEMA 5-15r Color: Black Alignment: rotated 0°	Module width: 32 mm

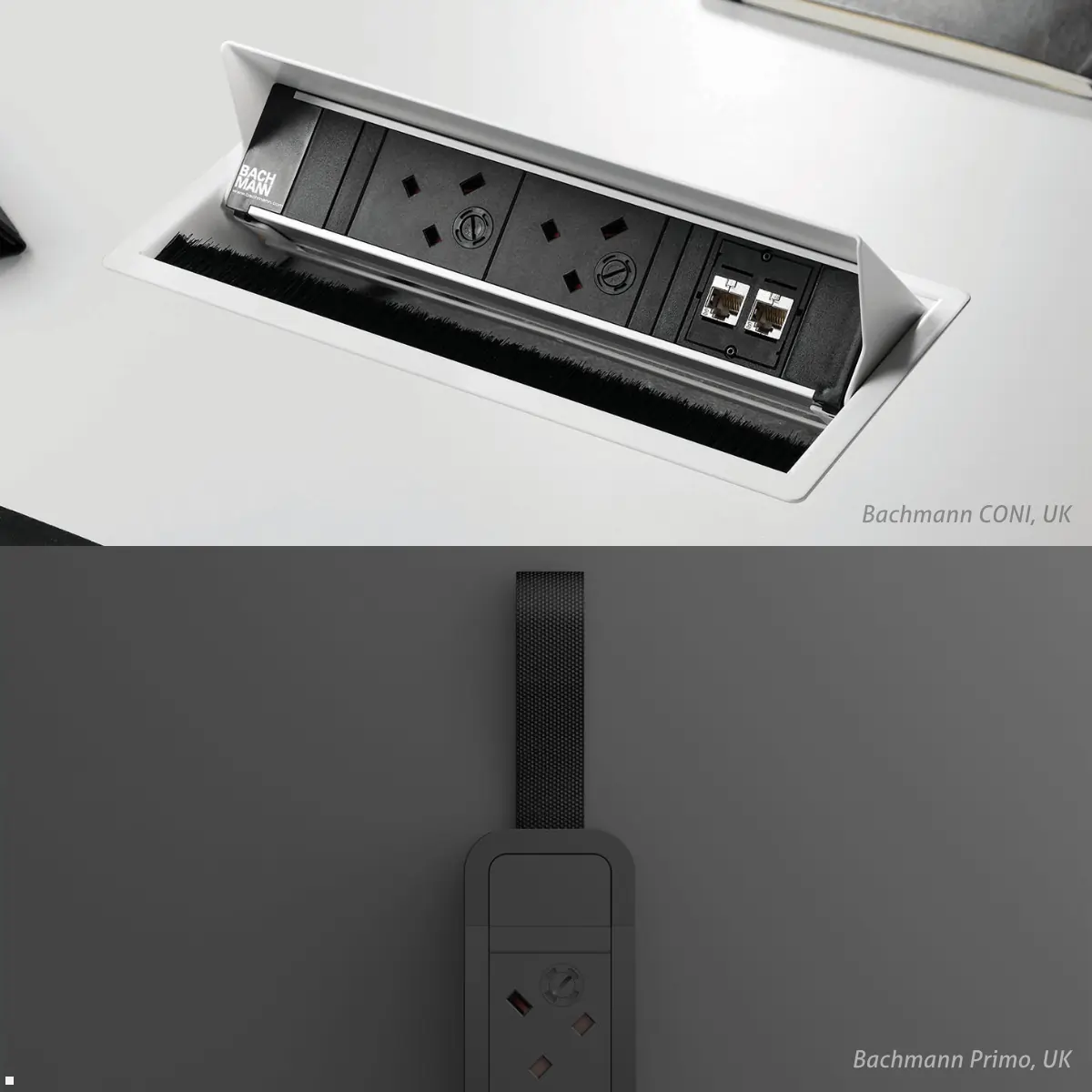

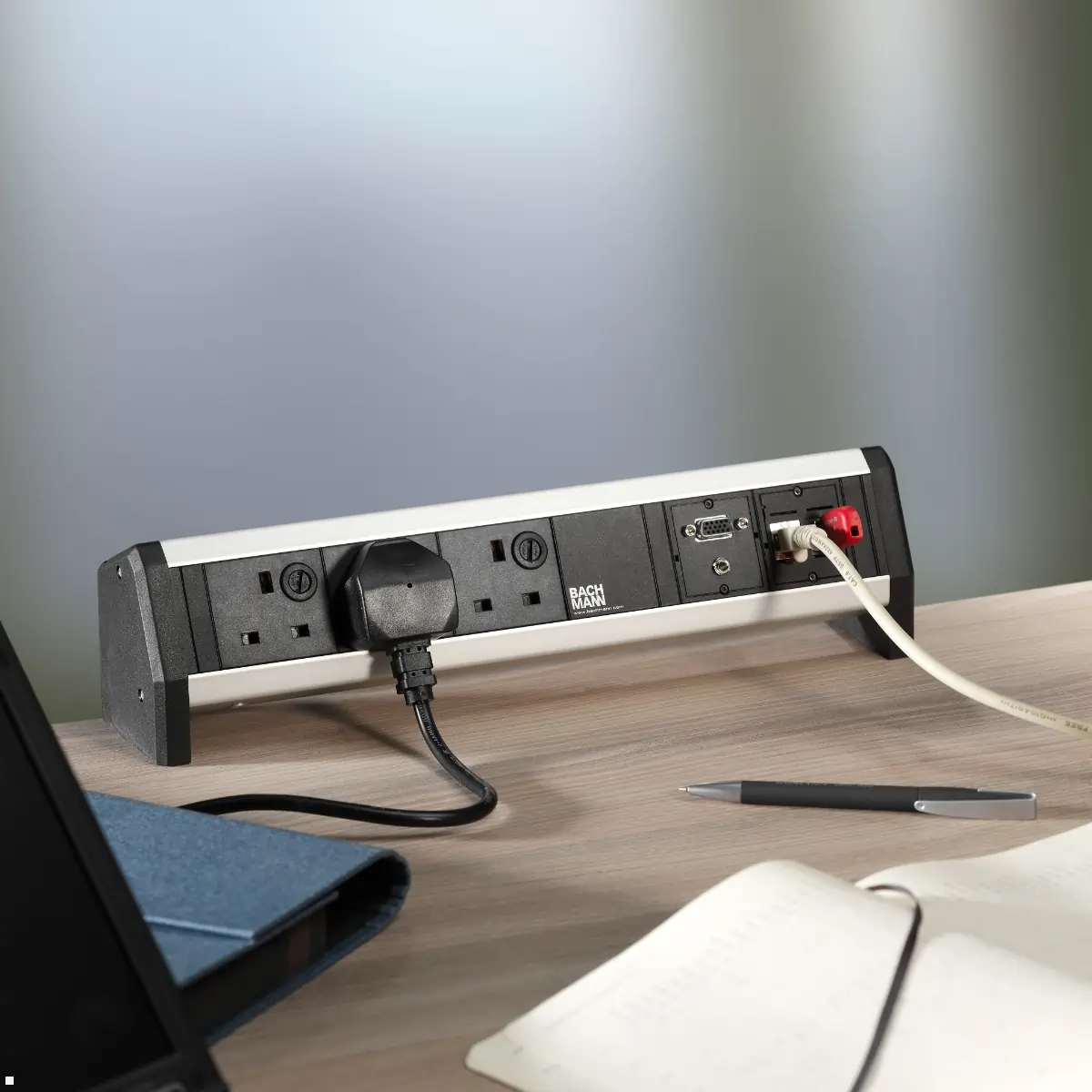

United Kingdom / England - Bachmann socket strip with plug type G
M-UK FUSE	Performance data: 13 A / 250 V Standard: BS 1363, fuse to BS 1362 Colour: black	With increased contact protection (shutter) Alignment 45° = 60 mm module width Alignment 90° = 52.5 mm module width
M-UK	Performance data: 13 A / 250 V Standard: BS 1363 Color: Black Alignment: rotated 90	Module width: 52.5 mm With increased contact protection (shutter)
