Bachmann ZG1 desk mount with clamp 17-34", black
The Bachmann ZG1 desk monitor mount in black impresses with ergonomics and easy adjustment. In terms of design, the screen table holder is a real highlight.
Desk display mount with clamp
The ZG1 945.001 desk monitor mount from Bachmann is functional and has a modern design. It mounts up large monitors up to 34 inches with a weight of 3 - 11 kg. Based on a spring force technology, the monitor arm can be adjusted flexibly and individually and scores with exceptional performance and durability. The 360° rotation with the smart 180° lock feature ensures an individual and safe setting. The ZG1 monitor arm can be conveniently installed behind the removable panels with its tool set. Concerning to the Clean Desk Policy, cables are simply covered by easily removable tabs. Magnetic panels complete the attractive and modern design look.
Key features Bachmann ZG1 swivel and tilt desk flatscreen mount
- Display sizes: 17 inches, 19", 21", 22", 23", 24", 26", 27", 28", 29", 30", 31", 32", 34 Zoll
- Capacity: min. 3 - max. 11 kg
- Installation: clamp
- Features: tilt, rotate and swivel
- Rotation: 360° landscape / portrait
- With 180° Lock Feature
- Height adjustable: 290 - 510 mm
- VESA compliant hole patterns: 75x75, 100x100 mm

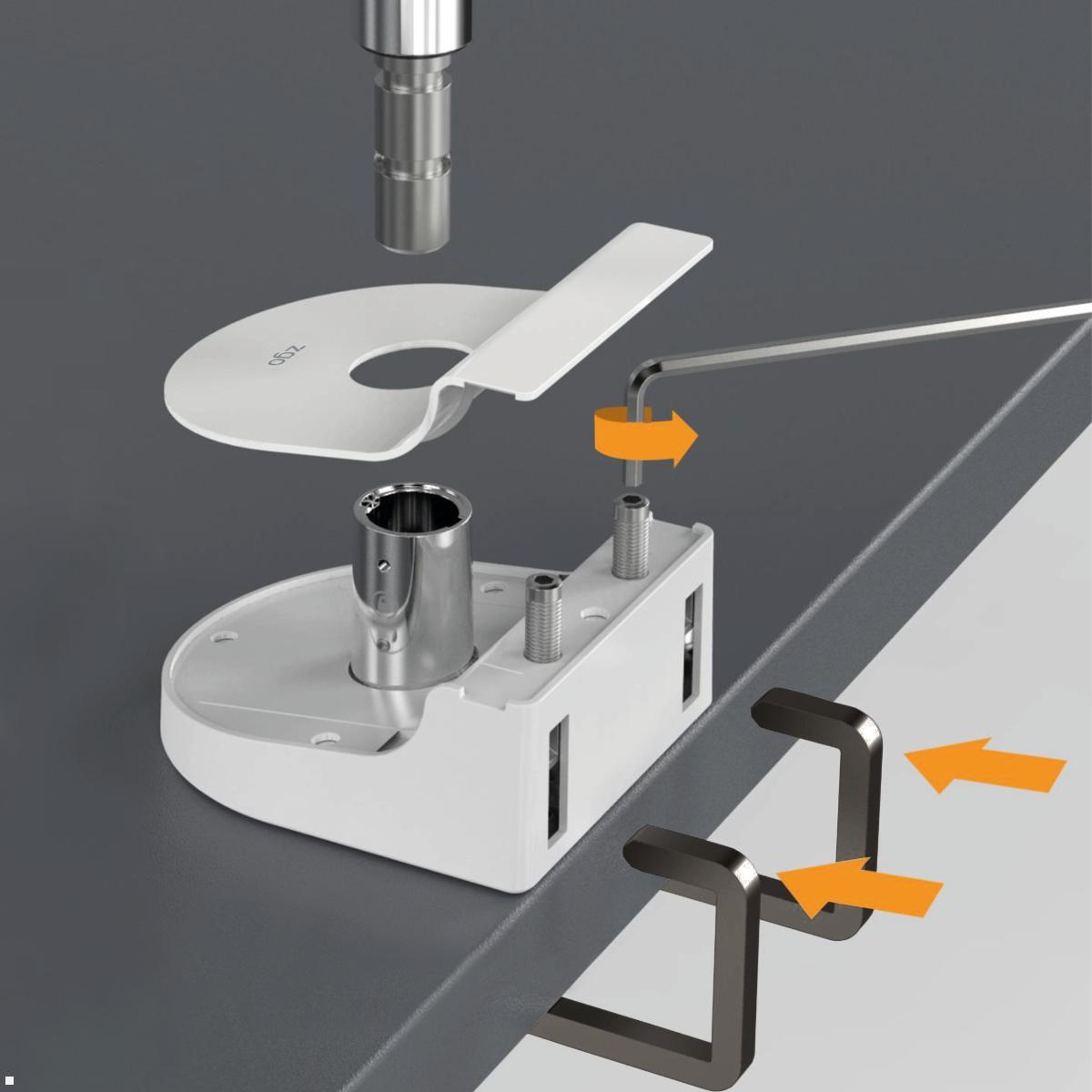

- Installation tools integrated in the arm
- Integrated cable management
- Finish: black
Does your display fit this VESA mount?
We will check whether your screen is suitable for this Bachmann ZG1 table holder in black. Please send us your model (manufacturer + model number) in the comment field at the end of the ordering process. We will check for you if your flatscreen, monitor or display fits and if not and contact you.
VESA standard - read more about VESA compliant monitor mounts!
| Product sheet: |  [pdf, 297 kb] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 3 kg |
| Capacity: | 11 kg |
| Tilt: | Vorwärts 20° / Rückwärts 35° |
| Rotate: | 360° |
| Height range (mm): | 290 - 510 mm |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 600 mm |
| Screen size: | 17 - 34" |
| Thickness of table (mm): | 16-33 mm / 33-50 mm |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 37 inch |
| Mobility: | height adjustable , rotatable, swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
