Bachmann TWIST 2 2x FR socket UTE, square (946.203) white
The square Bachmann TWIST 2 built-in socket (946.203), France in whiteß has two UTE sockets and can be installed in offices, lounges and kitchens. The low installation depth and the compact design enable space-saving integration into desks or kitchen worktops. Supplied with a mounting plug and a 2.0 m long cable with wire end sleeves and mounting plug.
TWIST 2 built-in socket with two UTE sockets in white, France
The Bachmann TWIST 2 built-in socket with two UTE sockets in white, France (946.203) is ideal for Kitchens, offices or lounges for the French power grid. With its angular shape, it can be integrated into desks or kitchen worktops to save space. The power line is routed close to the housing and the installation depth is only about 40 mm. This enables problem-free installation, even above drawers.
The white surface fits perfectly into modern or organically lively shape and color concepts. The closure can be opened automatically at the push of a button and the cover is closed by hand after use. The removable cover makes cleaning easier and the new anti-fingerprint coating minimizes signs of use.
Key features Bachmann Twist 2 (946.203)
- Cover in white
- 2x UTE socket, black

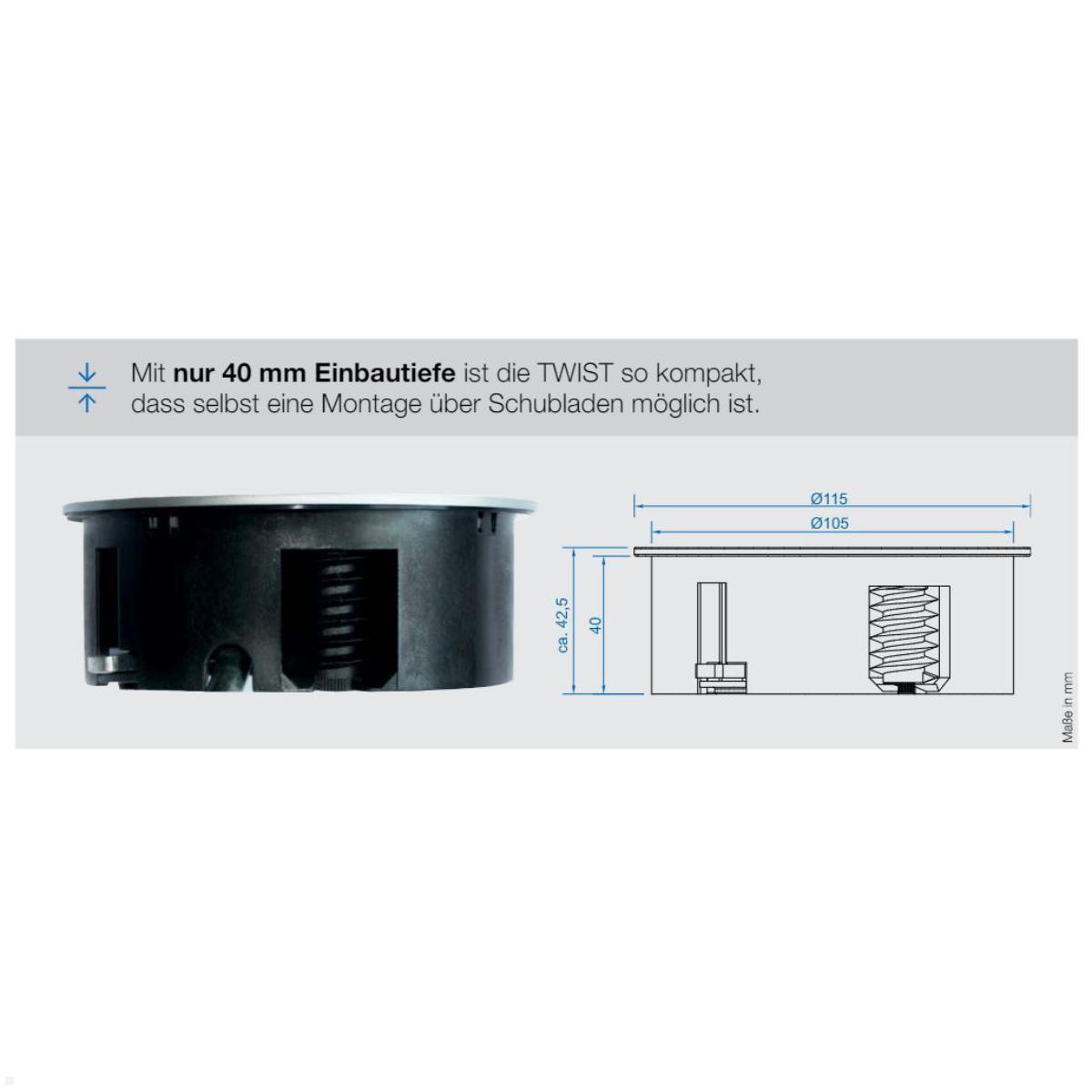

- Installation diameter approx. 104 mm, installation depth 40 mm
- For plate support; Marks from 6 mm to 40 mm
- Power input: 2.0 m cable black | H05VV-F |3G1.5mm²

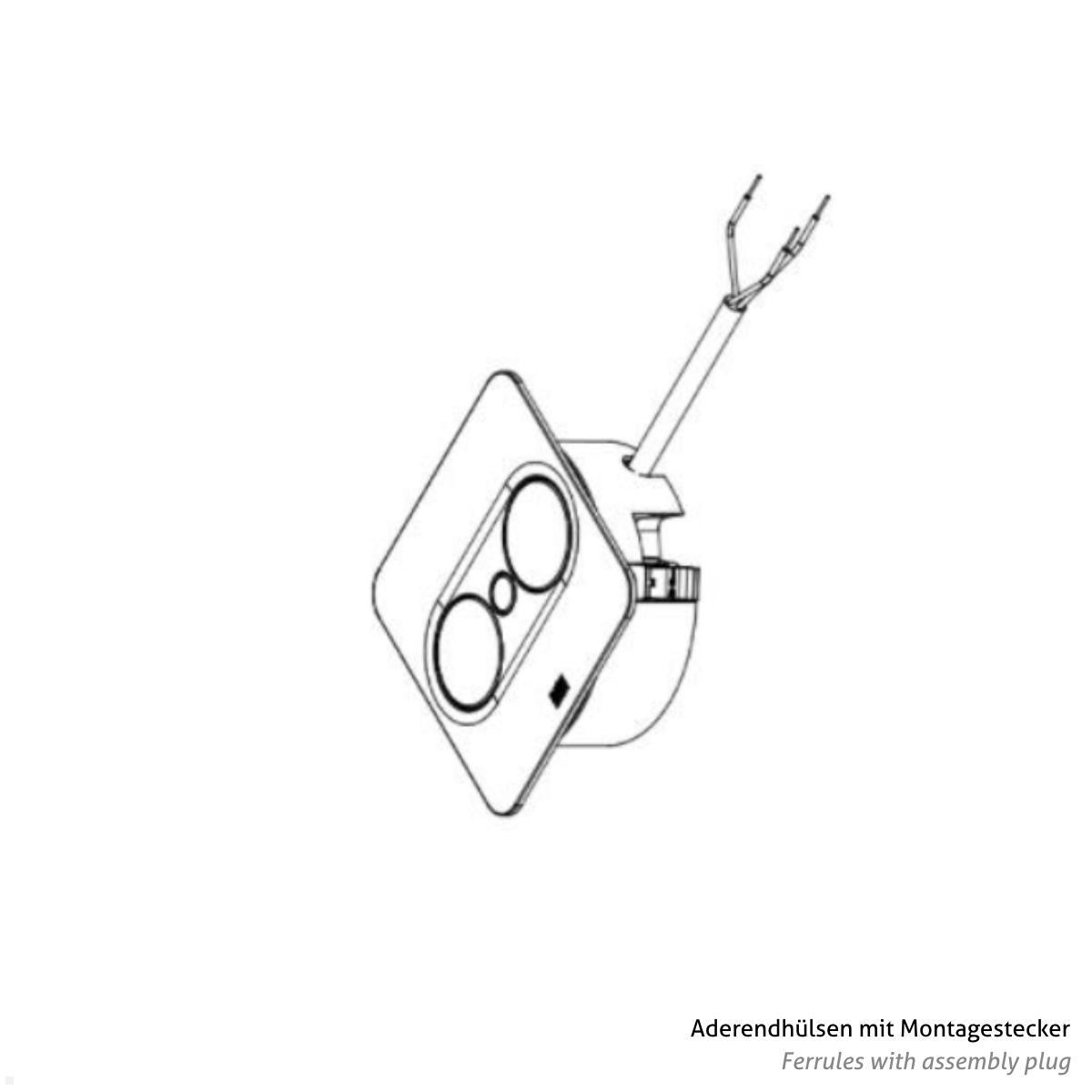

- With ferrules and assembly plug included
- Compact design (HxØ: approx. 42.5 x 115 mm)
- Space-saving cable routing
- Easy and quick assembly
- Protection class IP20
- Red Dot Product Design Award Winner 2022
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 185 x 185 x 95 |

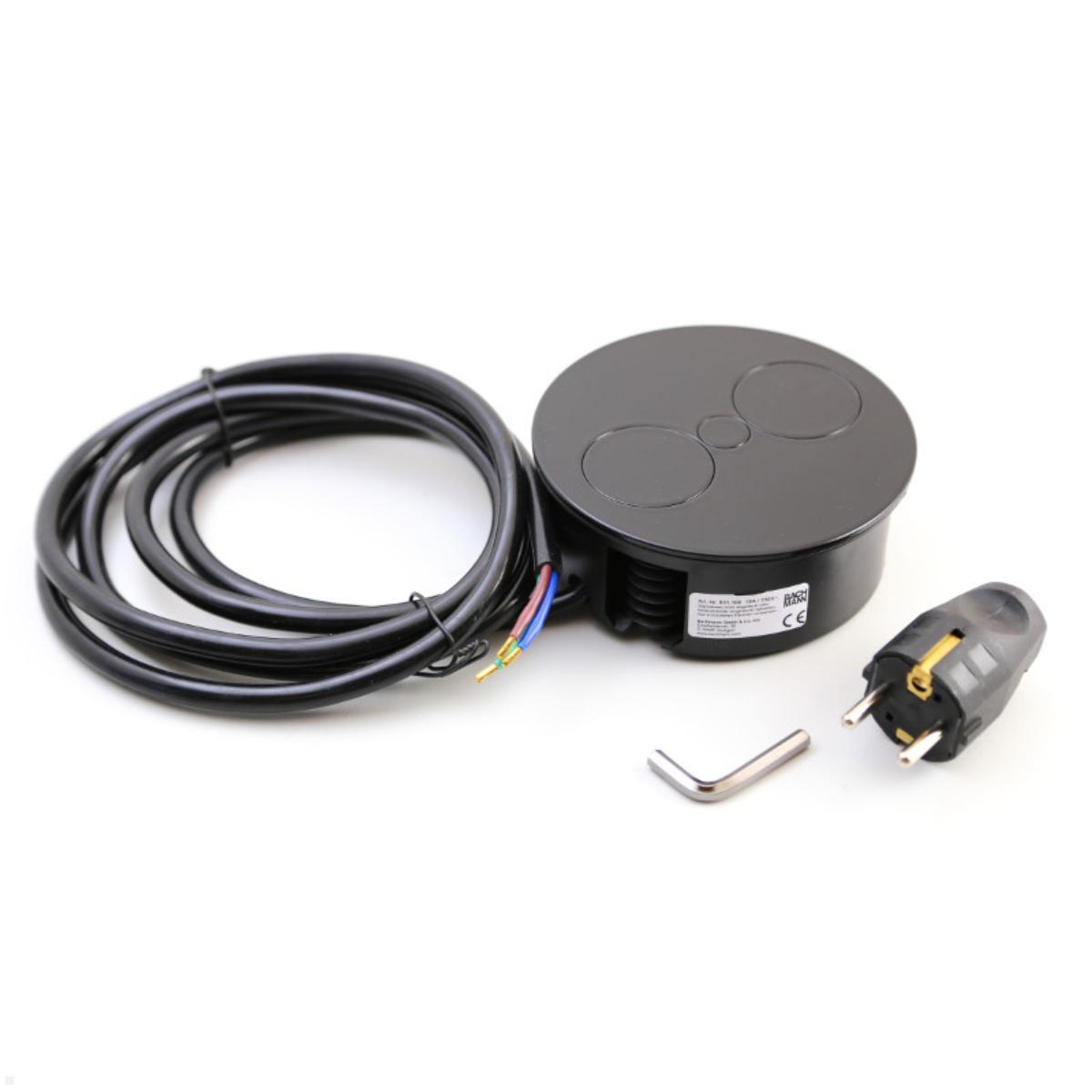

| Scope of delivery: | 1x TWIST2 incl. 2m cable with ferrules, 1x assembly plug, 1x assembly tool, 1x mounting plate for worktops from 6-24mm |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Weiß matt |
| Form: | eckig |
| Land: | France |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
