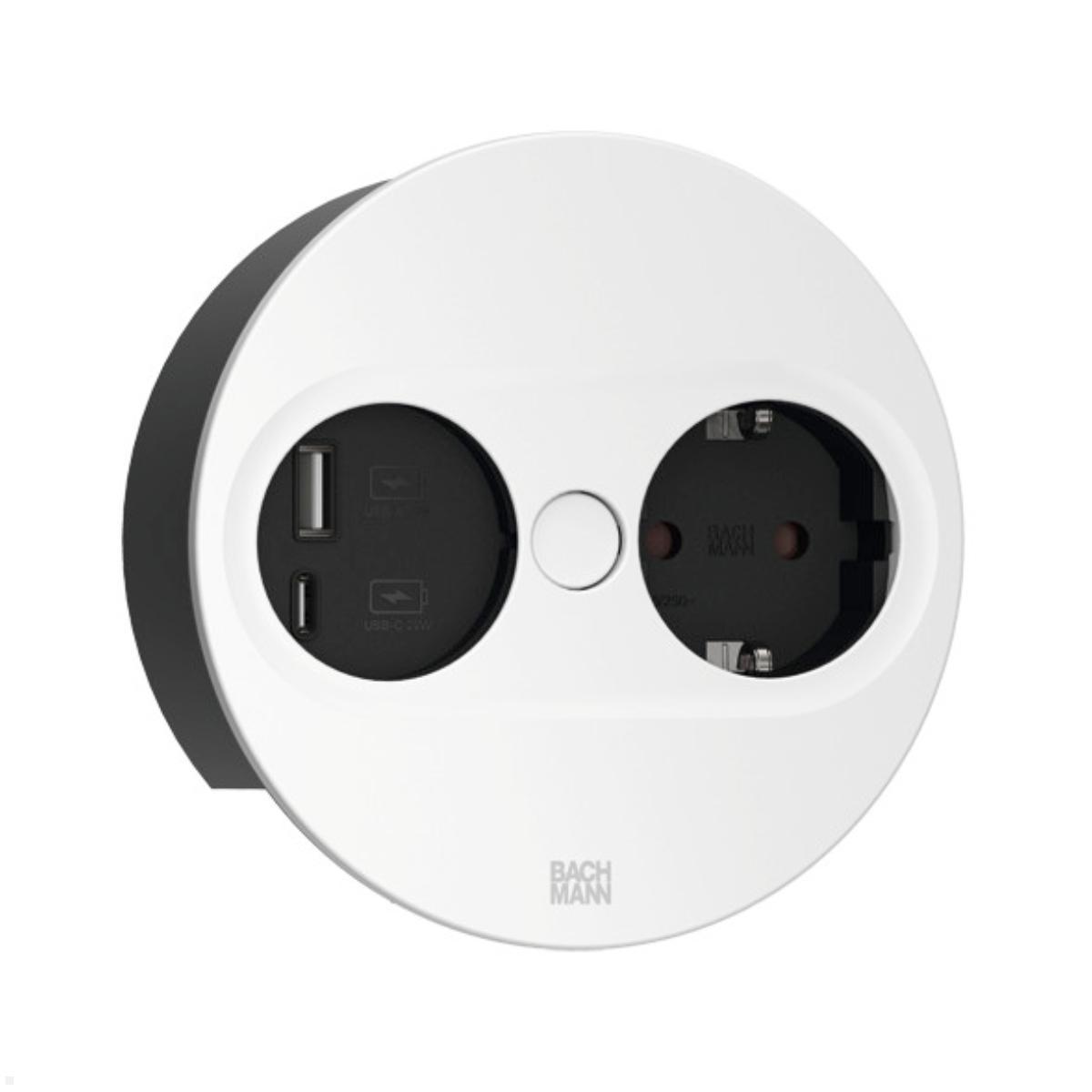

Bachmann TWIST 2 1x socket 1x USB charger A/C, round (946.204) white
The round built-in Bachmann TWIST 2 socket (946.204) in white is a practical solution for offices, lounges and kitchens. It offers a socket and a USB A/C charger and, thanks to its compact design and low installation depth, can be integrated into desks or kitchen worktops to save space. The socket is supplied with a 2.0 m long cable with wire end sleeves and the enclosed assembly plug.
TWIST 2 built-in socket with socket and A/C charger
The round Bachmann TWIST 2 built-in socket (946.204) in white has a socket and an A/C charger (22W) and is perfect for use in offices, lounges or Kitchen. Due to its compact design and low installation depth, it can be integrated into desks or kitchen worktops to save space. The power line is routed close to the housing, resulting in an installation depth of only approx. 40 mm. This enables problem-free installation above drawers.
Thanks to its white surface, the Bachmann TWIST 2 blends seamlessly into modern and organically lively shape and color concepts. The closure can be opened easily at the push of a button and closed by hand after use. The new anti-fingerprint coating minimizes user marks, while the removable cover makes cleaning even easier.
- Cover in white
- 1x socket, black
- 1x USB A/C Charger 22W
- Installation diameter approx. 104 mm, installation depth 40 mm
- Fü ;r panel thicknesses from 6 mm to 40 mm
- Power input: 2.0 m cable black | H05VV-F |3G1.5mm²
- With ferrules and assembly plug included
- Compact design (HxØ: approx. 42.5 x 115 mm)
- Space-saving cable routing
- Easy and quick assembly
- Protection class IP20
- Red Dot Product Design Award Winner 2022
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 185 x 185 x 95 |
| Scope of delivery: | 1x TWIST2 incl. 2m cable with ferrules, 1x assembly plug, 1x assembly tool, 1x mounting plate for worktops from 6-24mm |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Weiß matt |
| Form: | rund |
| USB-Charger: | USB A/C |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
