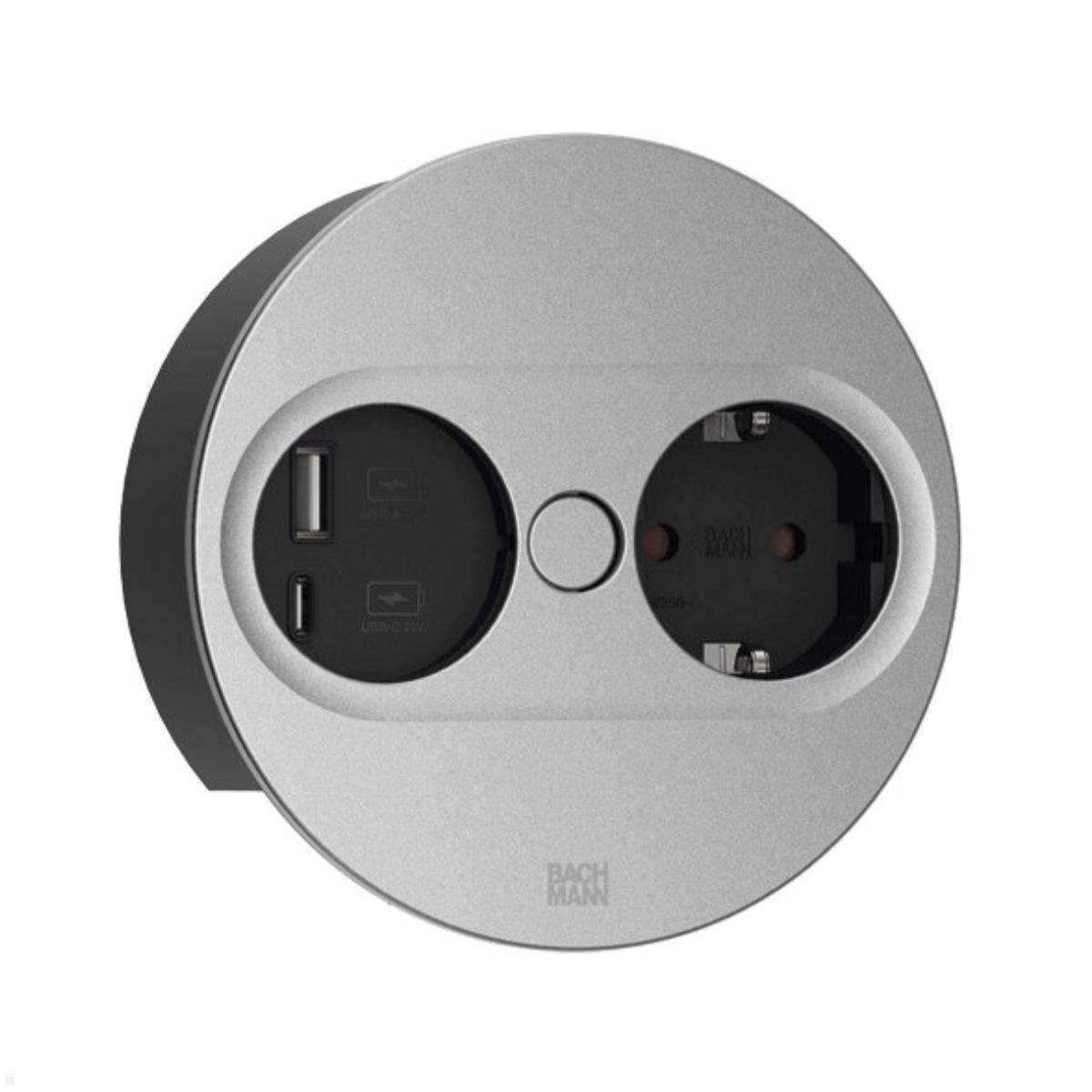

Bachmann TWIST 2 1x socket 1x USB charger A/C, GST18, round (946.012) silver
The Bachmann TWIST 2 built-in socket (946.012) in stainless steel look is a round built-in socket (1x socket, 1x USB A/C charger) for the office, living room and kitchen. Thanks to its compact design and low installation depth, it can be integrated into desks or kitchen worktops to save space. Supplied with 0.2 m lead H05VV-F3G1.5 mm² black with GST18 connector.
Built-in socket TWIST 2 socket A/C Charger and GST18
The Bachmann TWIST 2 with socket and A/C Charger and GST18 (946.012) is a round built-in socket for office, living room or kitchen. The compact design and the low installation depth enable space-saving integration into desks or kitchen worktops. Due to the narrow routing of the power cable and the installation depth of only approx. 40 mm, installation above drawers is possible without any problems.
Thanks to the matt silver surface the Bachmann TWIST 2 blends in with both modern and organically lively shape and color concepts. The closure can be opened automatically at the push of a button. After use, the cover is closed by hand. The new anti-fingerprint coating reduces signs of use and the removable cover makes cleaning even easier.
Key features Bachmann Twist 2 (946.012)
- Cover in matt silver (Inox)
- 1x socket, black
- 1x USB A/C Charger 22W
- Installation diameter approx. 104 mm, installation depth 40 mm
- For panel thicknesses from 6 mm to 40 mm
- Power input: 0.2 m supply line H05VV-F3G1.5 mm², GST18 plug black
- Compact design (HxØ: approx. 42.5 x 115 mm)
- Space-saving cable routing
- Easy and quick assembly
- Protection class IP20
- Red Dot Product Design Award Winner 2022
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 185 x 185 x 95 |
| Scope of delivery: | 1x TWIST2 incl. 2m cable with ferrules, 1x assembly plug, 1x assembly tool, 1x mounting plate for worktops from 6-24mm |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Silver |
| Form: | rund |
| USB-Charger: | USB A/C |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
