Bachmann TWIST 2 1x FR socket UTE 1x USB charger A/C, round (946.106) black
The black Bachmann TWIST 2 built-in socket (946.106), France, is a round built-in socket (1x UTE socket, 1x USB A/C charger) for the office, lounge and kitchen. Thanks to its compact design and low installation depth, it is integrated into desks or kitchen worktops to save space. Supplied with 2.0 m cable with wire end sleeves and assembly plug included.
Build-in socket TWIST 2 with UTE socket and A/C charger, France
The black Bachmann TWIST 2 with UTE socket and A/C charger, France 946.106 is a round built-in socket for office, lounge or kitchen in the French electricity network. Thanks to its compact design and low installation depth, it is integrated into desks or kitchen worktops to save space. The power line is routed close to the housing, so that the installation depth is only approx. 40 mm - installation above drawers is therefore possible without any problems.
With the surface in black, the Bachmann TWIST 2 fits into both modern and organically lively shape and color concepts. The closure can be opened automatically at the push of a button. After use, the cover is closed by hand. The new anti-fingerprint coating reduces signs of use and the removable cover makes cleaning even easier.
Key features Bachmann Twist 2 (946.106)
- 1x UTE socket, black
- 1x USB A/C Charger 22W
- Cover in black
- Installation diameter approx. 104 mm, installation depth 40 mm
- For panel thicknesses from 6 mm to 40 mm
- Power input: 2.0 m cable, black | H05VV-F |3G1.5mm²
- With ferrules and assembly plug included
- Compact design (HxØ: approx. 42.5 x 115 mm)
- Space-saving cable routing
- Easy and quick assembly
- Protection class IP20
- Red Dot Product Design Award Winner 2022
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 185 x 185 x 95 |

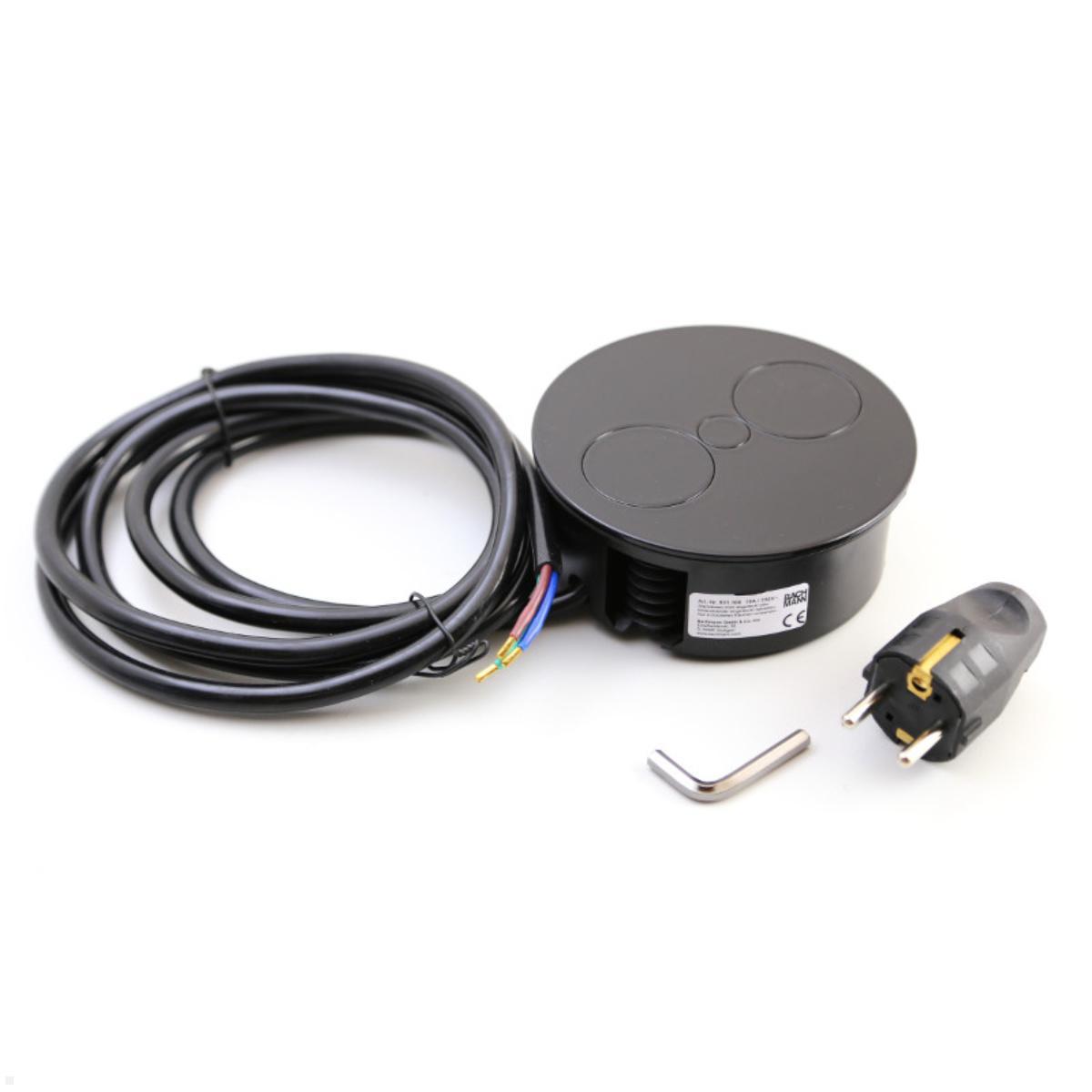

| Scope of delivery: | 1x TWIST2 incl. 2m cable with ferrules, 1x assembly plug, 1x assembly tool, 1x mounting plate for worktops from 6-24mm |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Schwarz matt |
| Form: | rund |
| USB-Charger: | USB A/C |
| Land: | France |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
