Bachmann STEP BASE 6x power strip, GST18 (906.12640)
The socket strip Bachmann STEP BASE (906.12640) is equipped with six protective contact sockets and GST18 connections. The STEP series is very suitable for installation in cable ducts, partitions or under desks.
6-fold power strip with GST18
The Bachmann STEP socket strip (906.12640) is equipped with Wieland GST18/3 for the power supply as standard and can therefore be fed in with different cable inputs. The multiple socket is equipped with 6 two-pole sockets, which are provided with a protective contact. The STEP socket units can be used in a variety of ways, for example for installation under tabletops, in cable ducts and partitions. Various attachment options are available as accessories for this purpose.
Key features Bachmann STEP BASE 6-way powerstripe 906.12640
- 6 x protective contact sockets
- Sockets: 2-pole with protective contact with increased protection against accidental contact, rotated 35
- 16A / 250V~ IP20
- Derivation/coupling: 1x Wieland GST18i3, 2-pin with protective contact
- 20A/V~ IP20

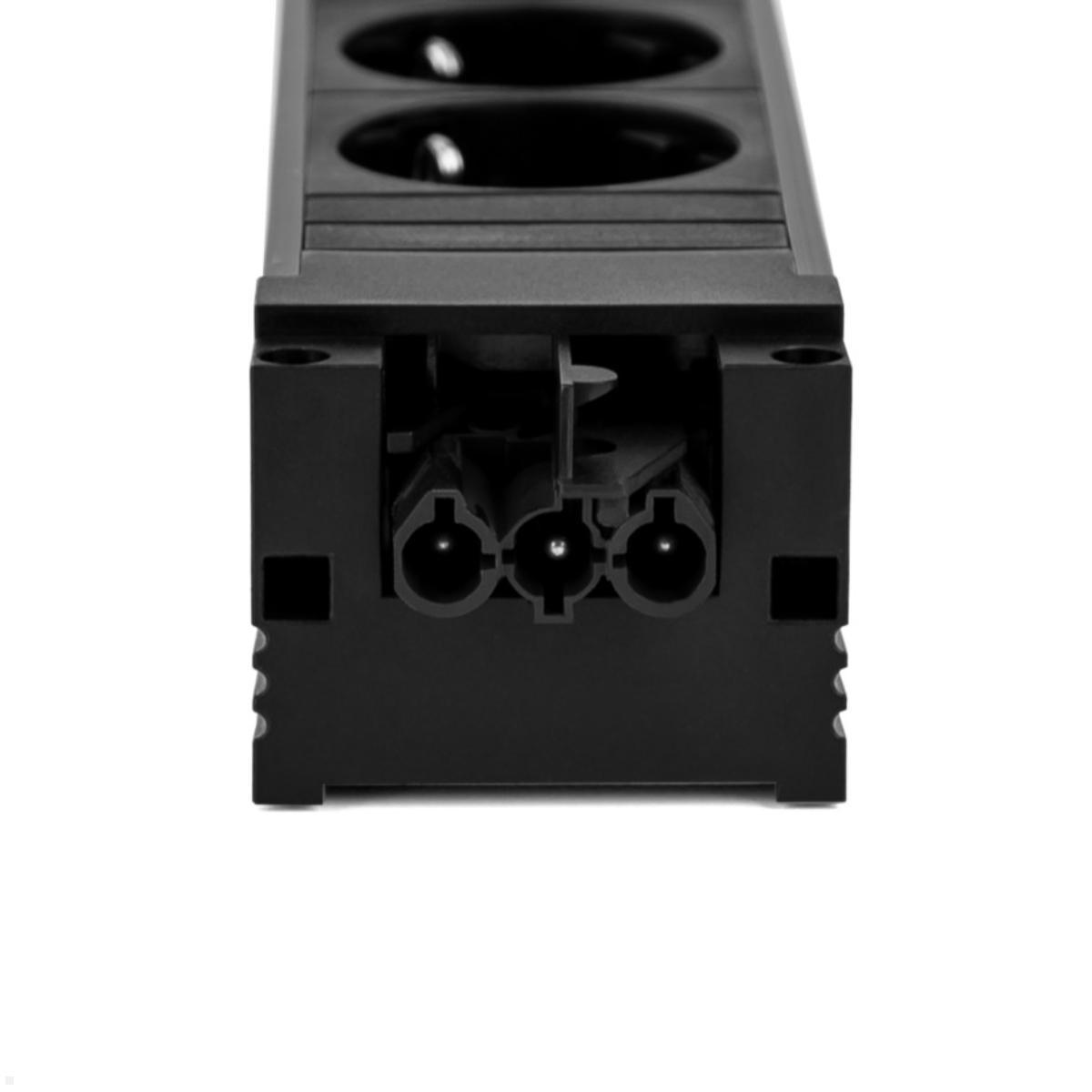

- Power input: plug GST18/3 plug black
- Power output: socket GST18/3 socket black
- Dimensions (WxHxD): 357.8 x 52 x 44 mm
- Incl. end caps
- Cascadable
- Locking tab inserted on both Wieland connections
- Colour: Black, similar to RAL 9005
- Successor model of 906.1264
Connecting / cascading Bachmann STEP power strips
Bachmann's STEP modular power strips have the appropriate coding and plug locking in accordance with EN 61535 and can therefore be installed in a fixed location and connected to each other. Bachmann uses gesis and GST18 from Wieland Electric as standard.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 906.1264 |
| Packaging dimensions (LxWxH in mm): | 480 x 96 x 96 |
| Scope of delivery: | 1x Bachmann 6-way power strip |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 6 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
