Bachmann STEP BASE 5-way power strip with GST18 (906.18821)
The Bachmann 5-way socket strip STEP BASE (906.18821) is equipped with five safety sockets and with Wieland GST18i3 as standard. It is perfectly suited for flexible energy and data supply at workplaces, in partition wall systems and double floors.
5-way power strip - multiple socket

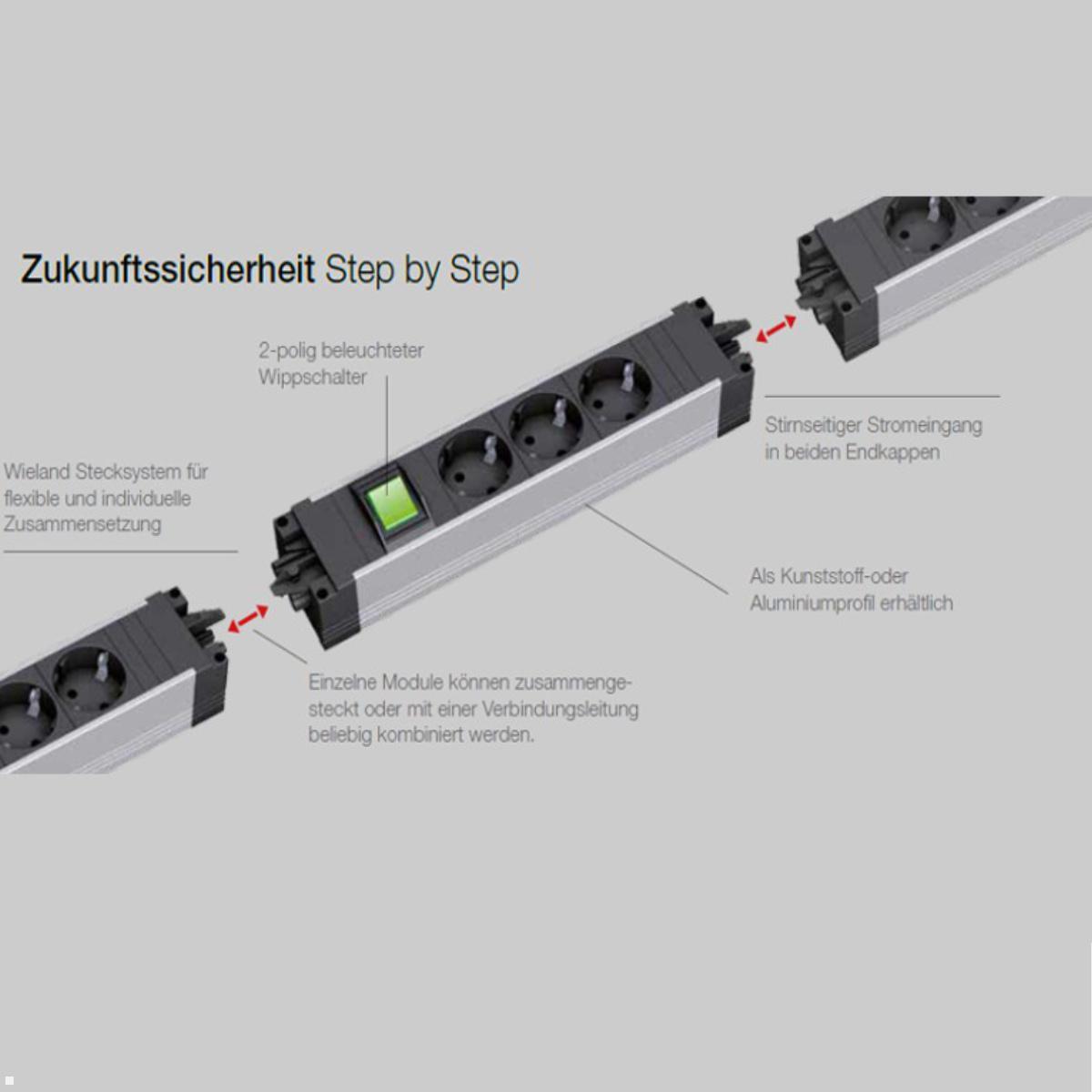

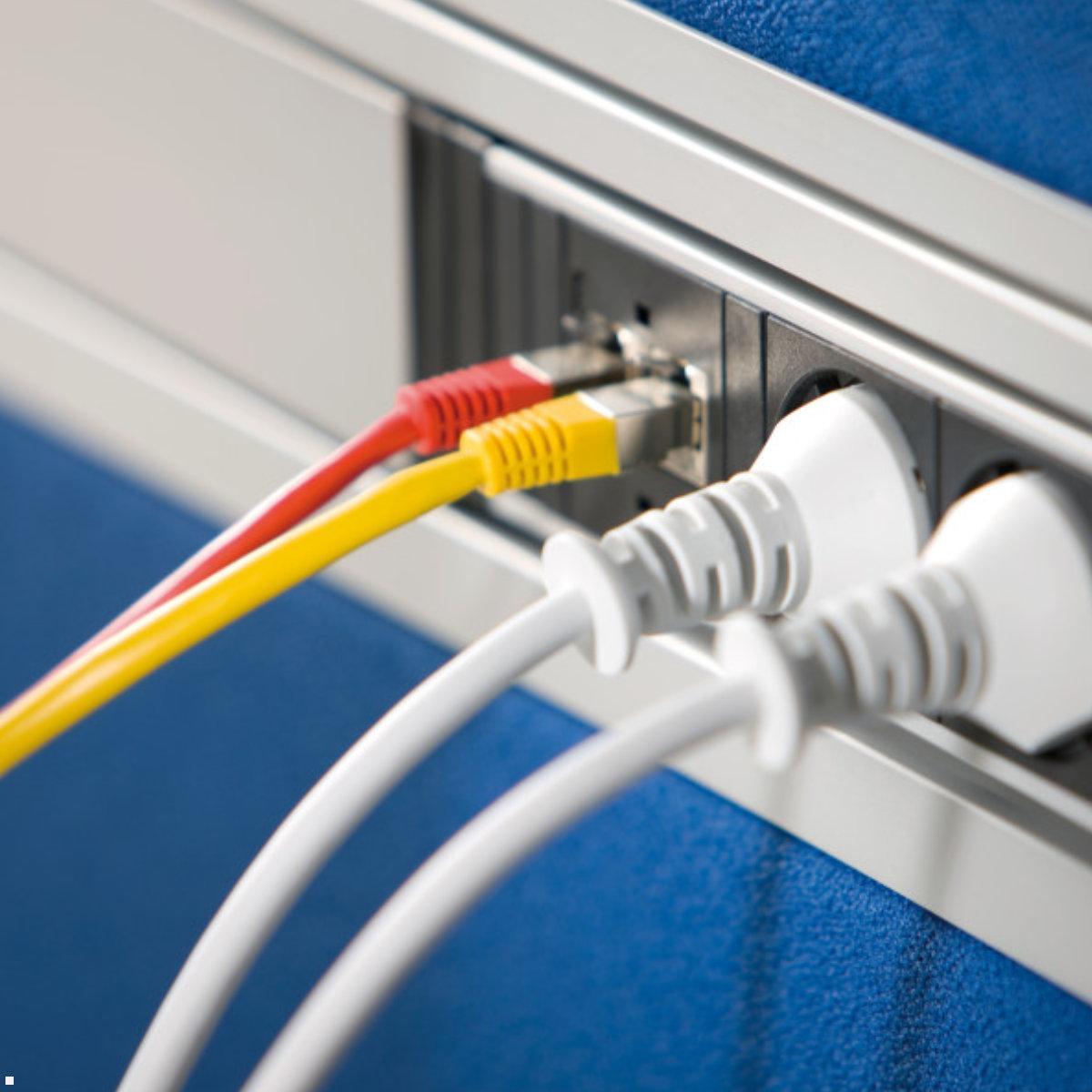

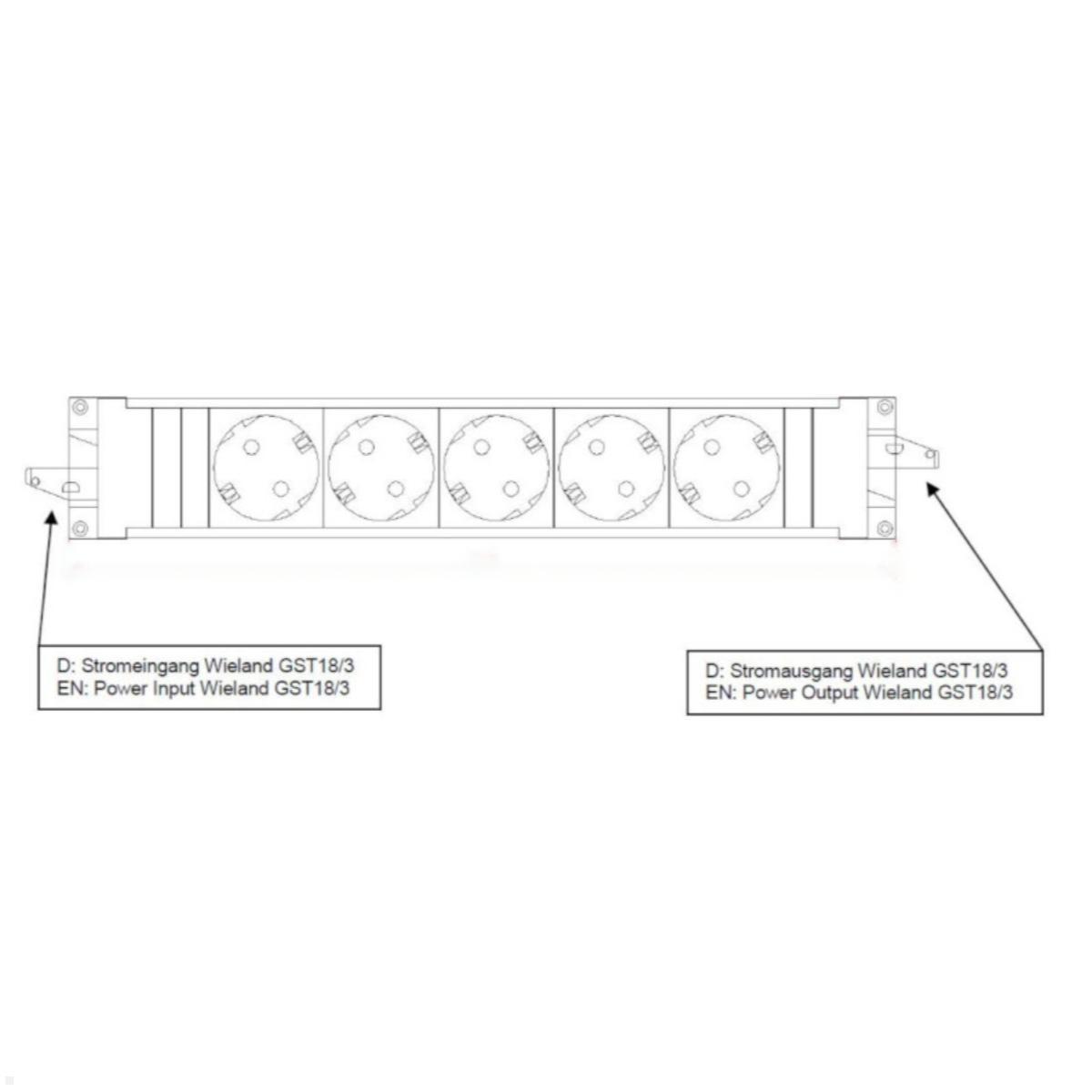

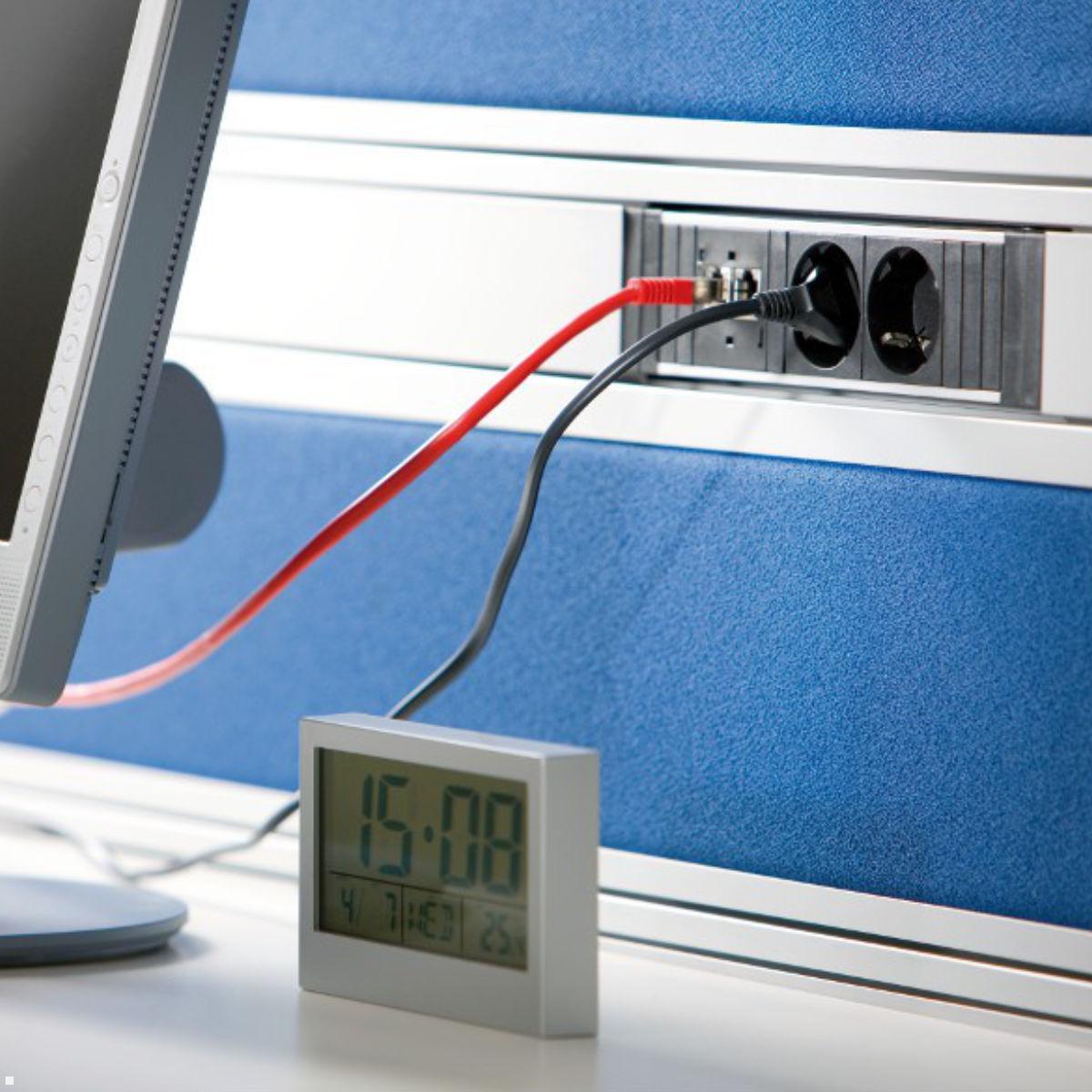

The modular multiple socket strip STEP BASE (906.18821) from the Bachmann STEP series implements the principle of adaptability with absolute consistency. The STEP system is ideal for flexible energy and data supply in partition wall systems, at workplaces, in double floors and other connection applications. Thanks to its modularity, the STEP socket strip offers almost limitless possibilities. It has a power input and a power output, which are each integrated into the end caps on the front. For the power supply, it is equipped with a Wieland GST18i3 plug and a GST18i3 coupling as standard. The device cable can be purchased separately to allow for different cable entries. The multiple sockethas 5 sockets with earthing contact and the central insert of the strip is rotated by 35 degrees to make it easier to insert wide plugs. Permanently installed devices such as a PC, monitor, printer, etc. can be connected to the socket bar.
Key features STEP BASE socket strip
- 5x protective contact sockets
- 2-pin with protective contact
- Socket orientation: 35°
- 16A / 250V
- Frequency: 50Hz
- IP20 protection (protection against contact, dust, water)

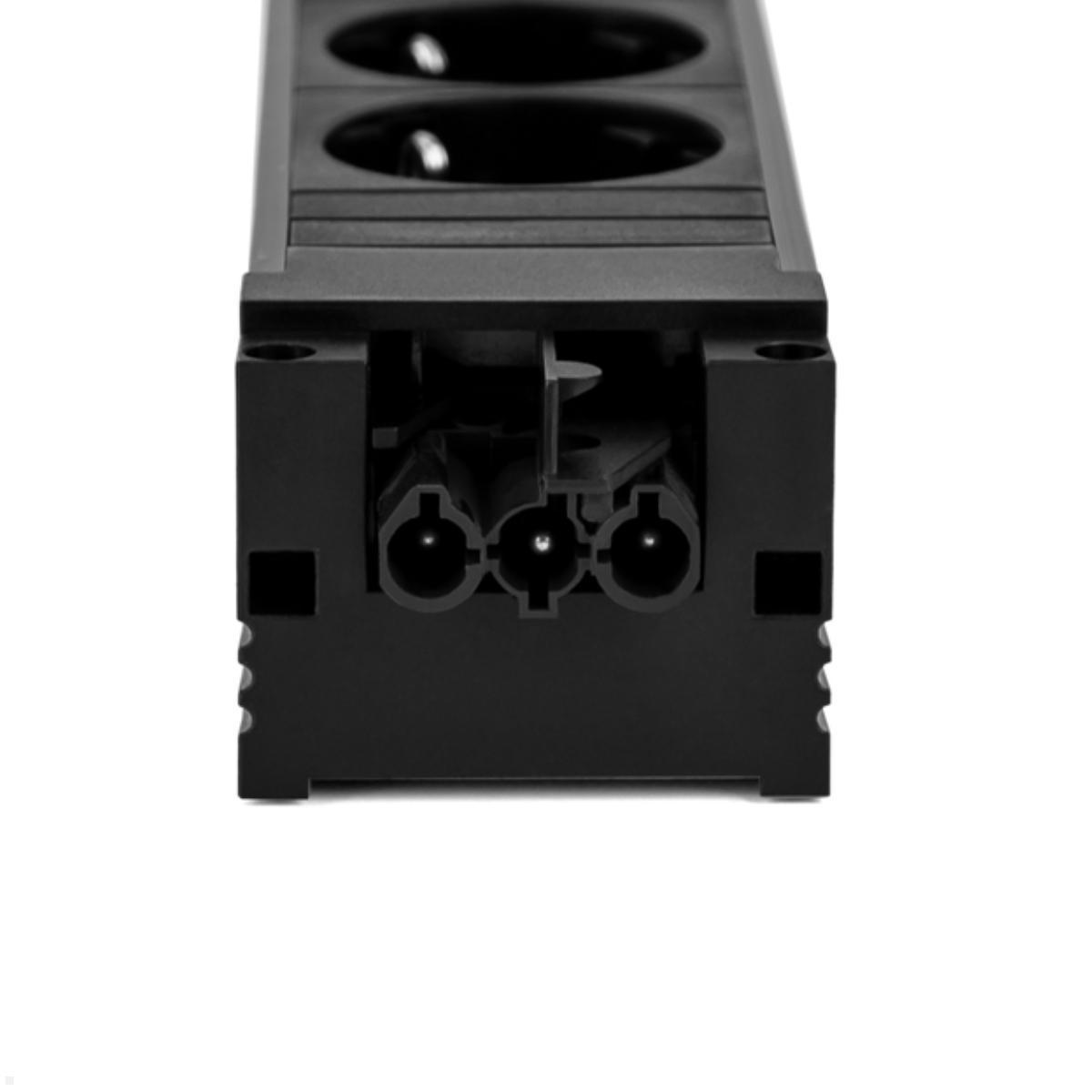

- Power input: GST18i3 plug black
- Power output: GST18i3 socket, black
- Dimensions (WxHxD): 315 x 52 x 44 mm
- Incl. end caps + locking tabs
- Incl. Connector latching

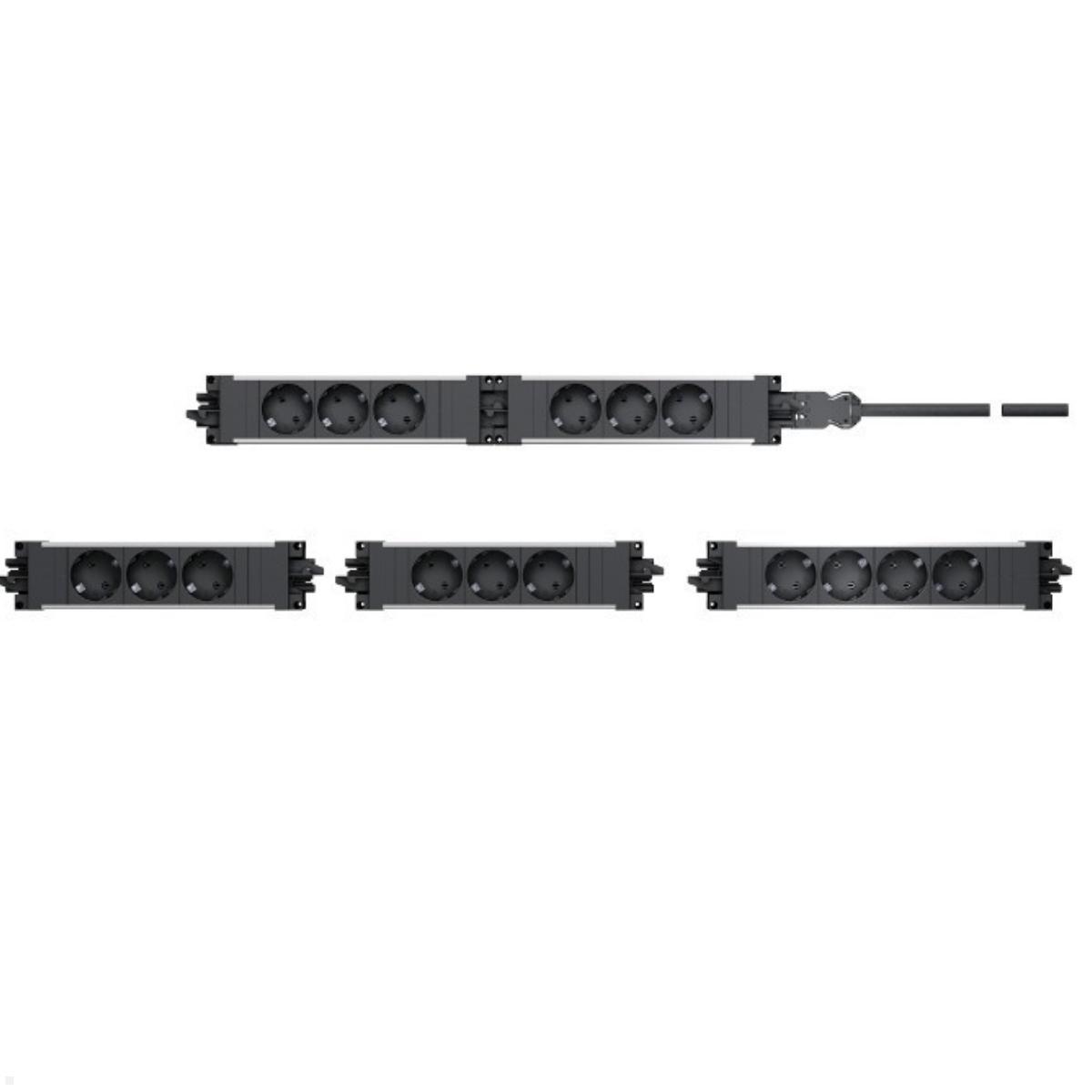

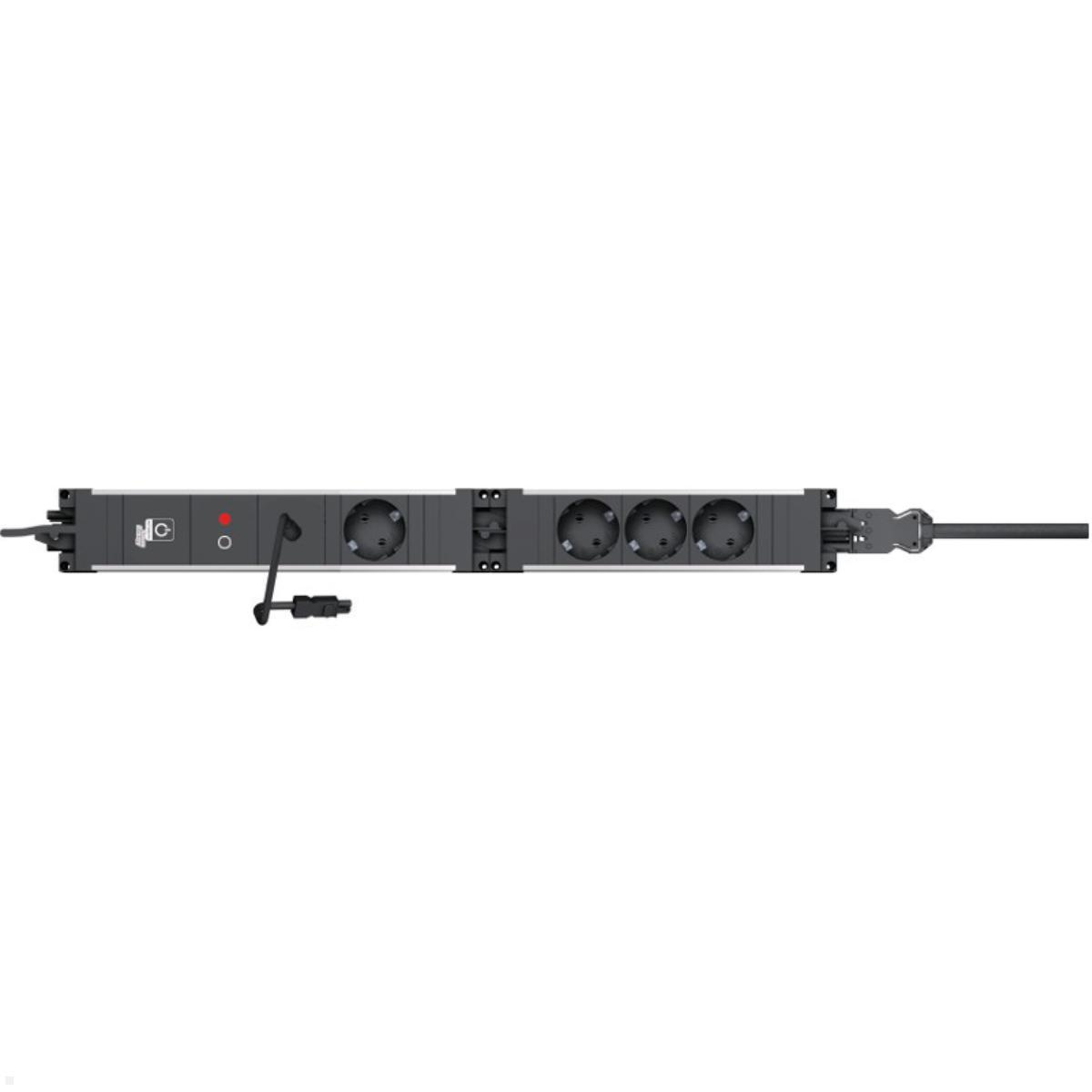

- Cascadable
- Mounting on T-slot profiles and stand profiles possible
- Linking of the power strips to one another using devices; extensions
- Colour: black
- Included in delivery: 1x Bachmann Step Base socket strip
- A GST18 device The cable is not included in the scope of delivery, it is available in various lengths in our shop.
- Successor to Bachmann Step Base: 336.626
| Product sheet: |  [pdf] |
|---|---|

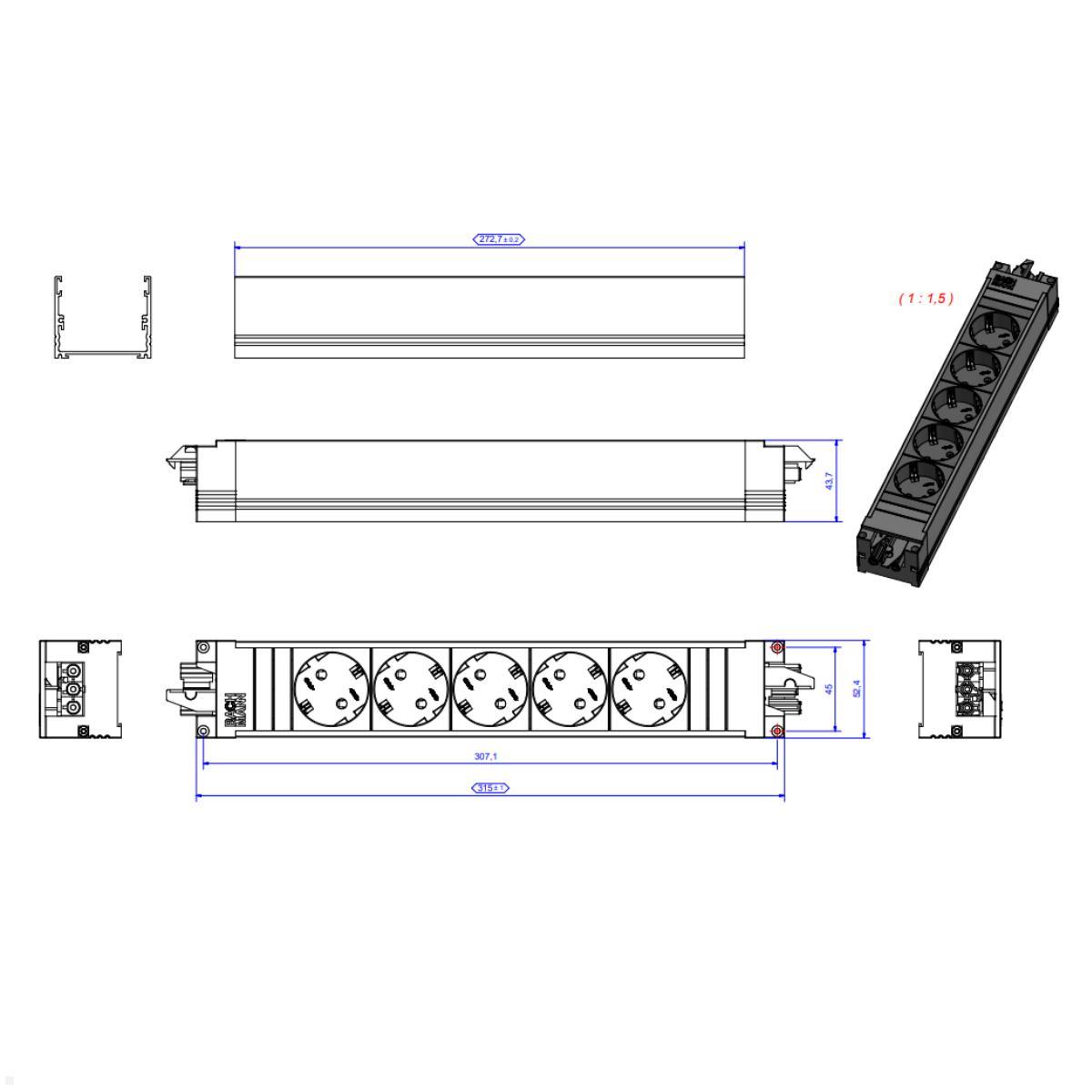

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 336.626 |
| Packaging dimensions (LxWxH in mm): | 350x50x40 |
| Scope of delivery: | 1x Step Base Steckdosenleiste |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 5 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
