Bachmann STEP ALU 1x RCD 10mA with GST18 (906.10752)
Bachmann STEP ALU FI switch 10mA with GST18 (906.10752) is a modular socket unit with FI switch. Individual modules can be plugged together or combined as desired with a connecting cable. Successor to 906.067.
Socket line with FI switch
Bachmann socket strip STEP ALU with residual current circuit breaker 16A/10mA (FI switch) in an aluminum profile (52 mm wide) as a simple, modular electrification set. Compact dimensions and stable housing and mounting option on T-slot profiles and stand profiles from different suppliers. Power input and output with Wieland GST18 plug-in system. Chaining of the power strips to one another using device extensions. Feed-in directly at the power connection with device cable or via feed-in modules
Key features Step Alu:
- Length approx. 240 mm
- Width approx. 52 mm
- Height approx. 44 mm
- With FI switch 16A/10mA
- Response current: 10mA
- Rated voltage: 250 V
- Protection class: IP20
- Power input: GST18i3 plug, black
- Power output: GST18i3 socket, black
- Incl. Connector catch
- Silver aluminum profile, black sockets
- Successor to 906.067
Many mounting options
Bachmann STEP socket units are versatile. For example for mounting under tabletops, in cable ducts and partitions. Various fastening options are available for assembly for the different applications.
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|

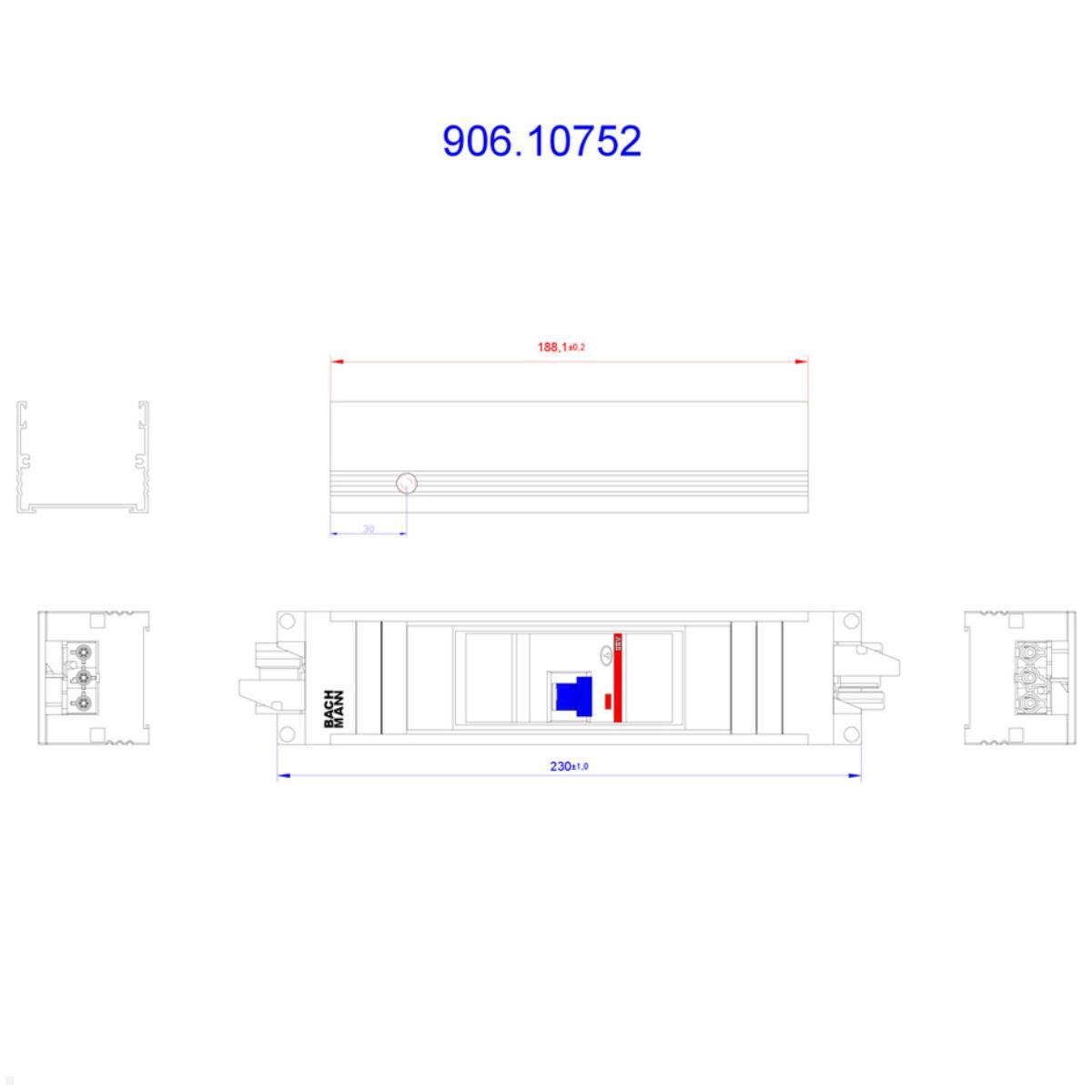

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 906.067 |
| Packaging dimensions (LxWxH in mm): | 250x60x50 |
| Scope of delivery: | 1 x Bachmann Step Alu |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| FI switch: | Yes |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
