Bachmann STEP ALU 1x overvoltage protection with GST18 (906.2060)
Socket strip with overvoltage protection

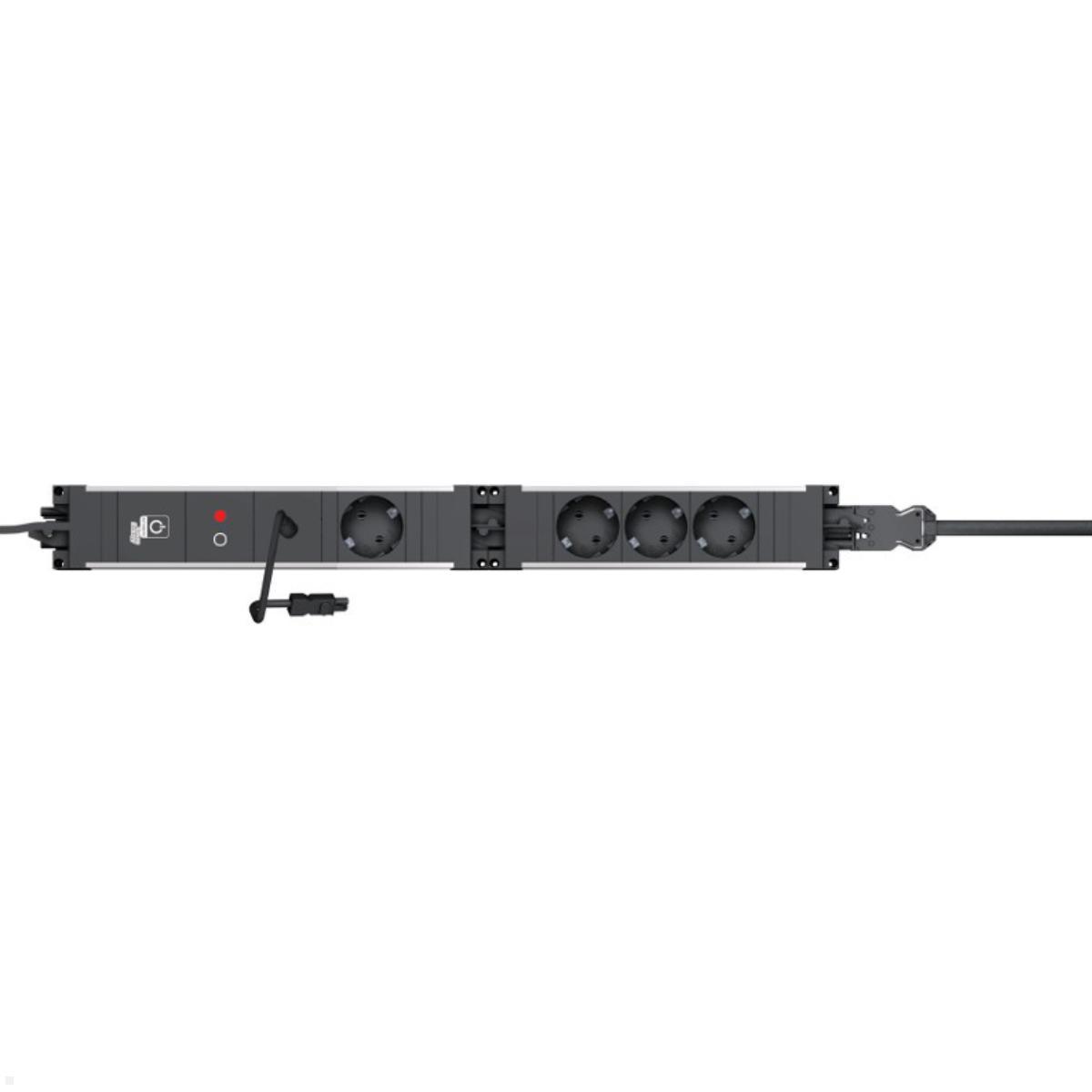

The Bachmann Step Alu with overvoltage protection (906.2060) is a reliable socket strip designed to protect electronic devices from power surges and spikes. The Bachmann STEP series implements the principle of modularity with absolute consistency. The STEP system is ideal for flexible energy and data supply in partition systems, at workplaces, in double floors and other connection applications . With its robust aluminum housing, the integrated overvoltage protection and the function and failure display, it is an ideal choice. STEP socket units have a power input and a power output, each integrated in the end caps on the front. The built-in GST18 connectors from Wieland are particularly tried and tested connectors for office use and have the appropriate coding and connector latching in accordance with the applicable standard.
Key features Bachmann STEP ALU:
- Overvoltage protection
- Short-circuit strength 6.5kA
- Protection level Up 1.5kV (2.0 kV, L-N )
- Max. No-load voltage Uoc: 6kV
- Uc 255V: 50 Hz
- Function and failure display

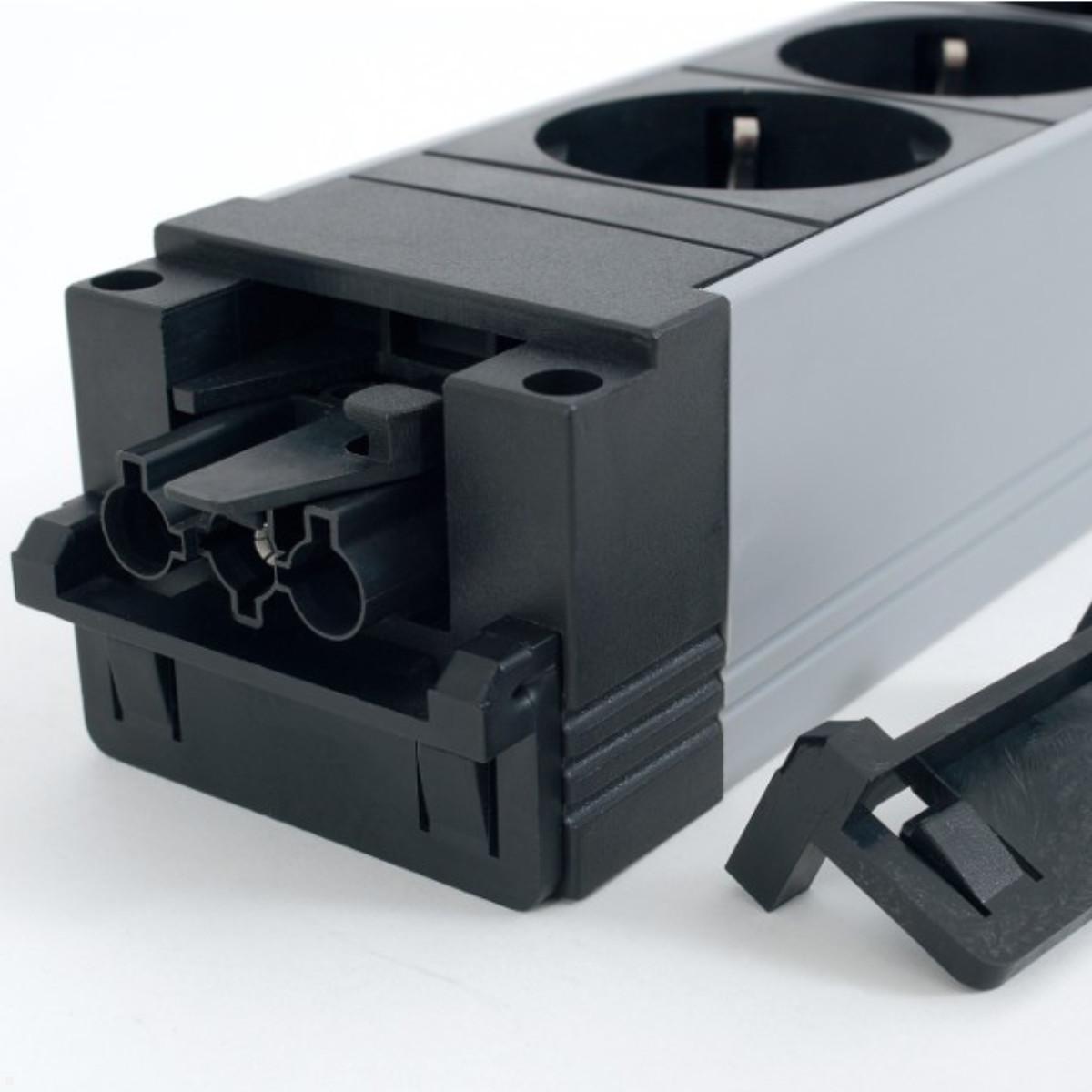

- Power input: GST18/3 plug black
- Power output: GST18/3 socket, black
- Width: 157 mm

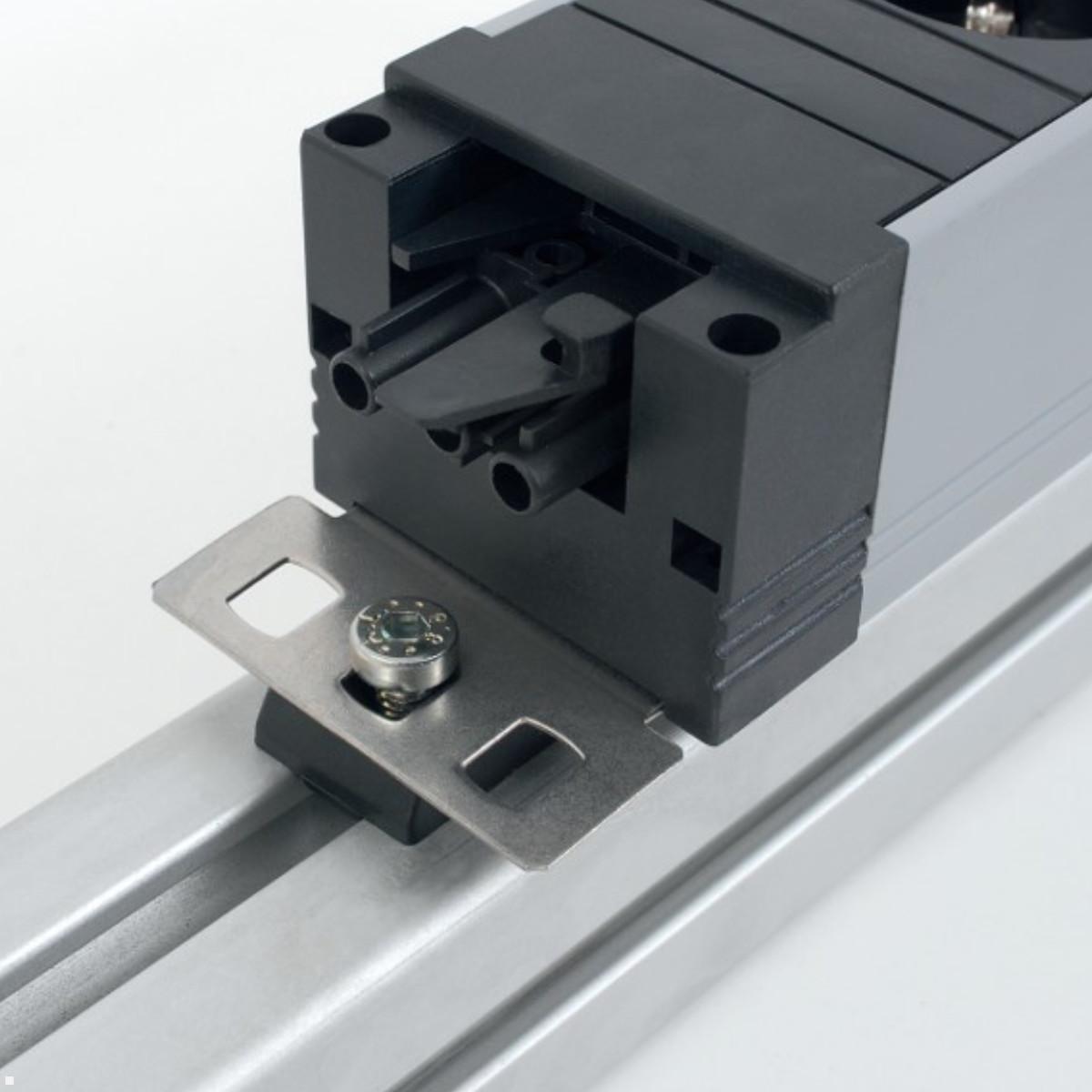

- Mounting on T-slot profiles and stand profiles is possible
- Linking of the power strips to one another using devices; tever extensions
- Plastic profile light gray
- Incl. End caps + locking tabs and 2 brackets
- Successor to 336.003

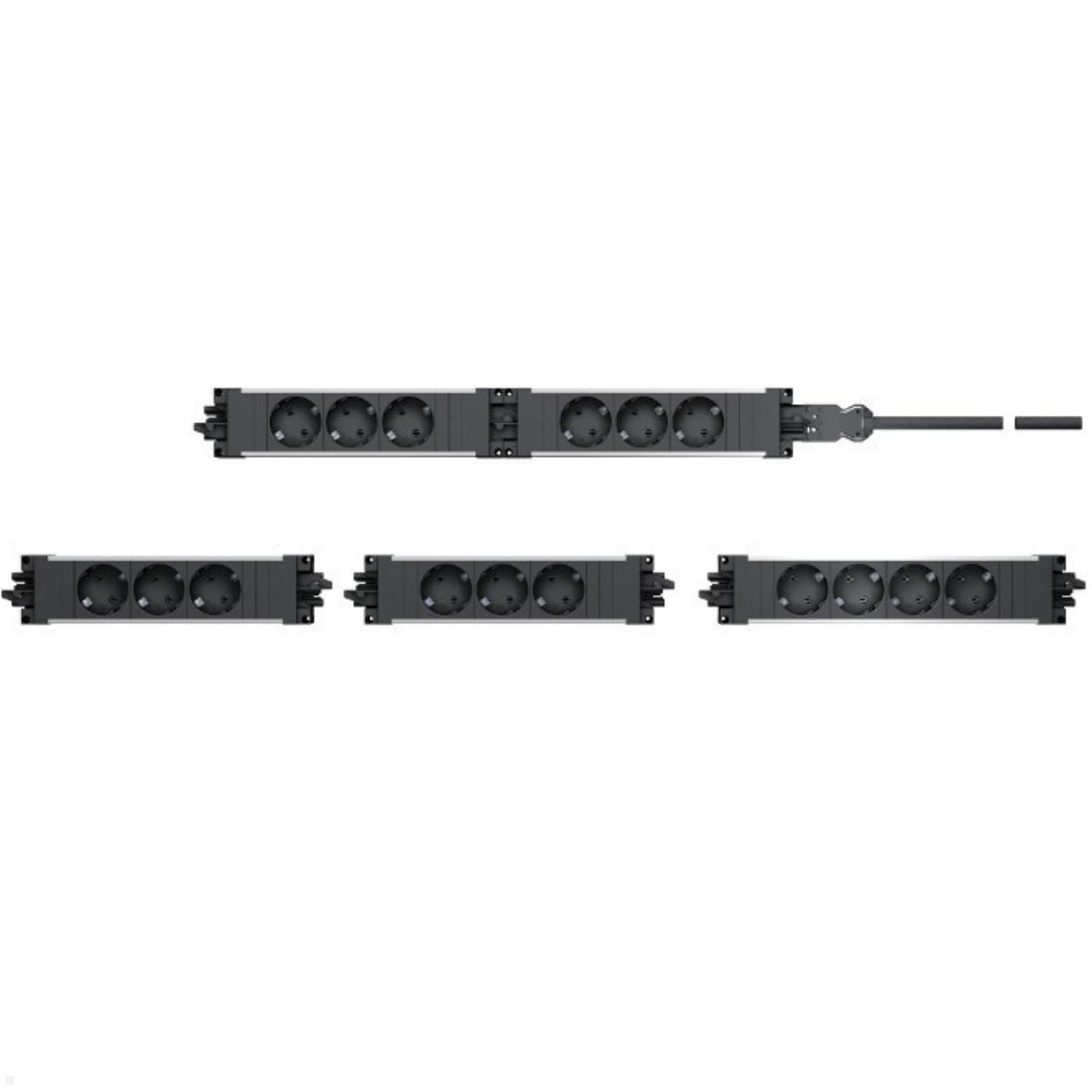

Bachmann STEP connect / cascade socket strips
The modular socket units STEP from Bachmann have the appropriate coding and connector latching according to EN 61535 and can therefore be installed in a fixed location and connected to one another. Bachmann uses gesis and GST18 from Wieland Electric as standard.
| Product sheet: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 336.003 |
| Packaging dimensions (LxWxH in mm): | 50 x 150 x 40 |
| Scope of delivery: | 1x Step Alu with surge protection, 2 brackets |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Overvoltage protection: | Yes |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
