Bachmann Power Frame 1x socket 1x USB charger 2x custom (916.0041)
The Bachmann Power Frame 4-way power strip with 1x power socket 1x USB doueble charger 2x custom modules (916.0041) has been built specifically for Bachmann Power Frame built-in frame and can be installed easily. Bachmann Power Frame, the perfect connector panel!
POWER FRAME is an easily accessible unit for supplying electricity to workstations. The power strip clicks into the built-in frame and can be interchanged or fitted with custom modules as required.
Bachmann Power Frame 4-way 1x power socket 1x USB double charger 2x custom modules 916.0041
POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. They can be either factory fitted or supplied for retrofitting.
Combining compact dimensions with high-quality timeless design, Bachmann POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. Such as in sales showrooms and display windows and at trade fair and demonstration stands.

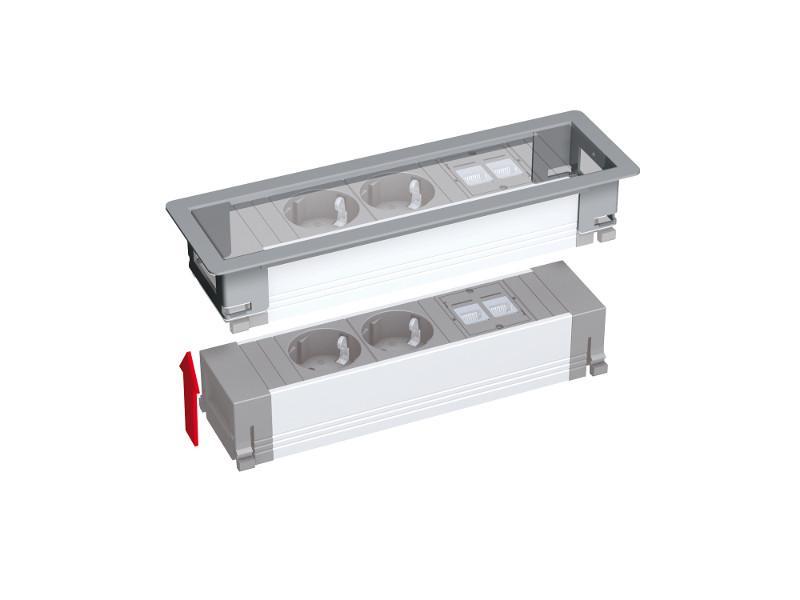

In short, wherever secure and rapid connections are the order of the day. Your chosen power strip simply plugs into the built-in frame from below without tools - a stroke of perfection. POWER FRAME, for a more compact and more efficient solution.
Key features Bachmann Power Frame 4-way power strip 916-0041
- Length: approx. 261,9 mm
- Anodised aluminium profile
- 1x socket outlet with earthing contact, shuttered, black, set at 35°
- 1x USB double charger (5.2 V/2.15 A)
- 2x custom modules
- Power input: 0.1 m cable and GST18i3 plug
Does your Bachmann Power Frame power strip fit?
We will gladly check if your Bachmann product is suitable for your application. Simply send us at the end of the ordering process in the comment box your model (Manufacturer + model no.). We then check for you whether the Bachmann power strip fits completely and if not, we will contact the team for you.
| Product sheet: |  [pdf, 171 kb] |
|---|---|

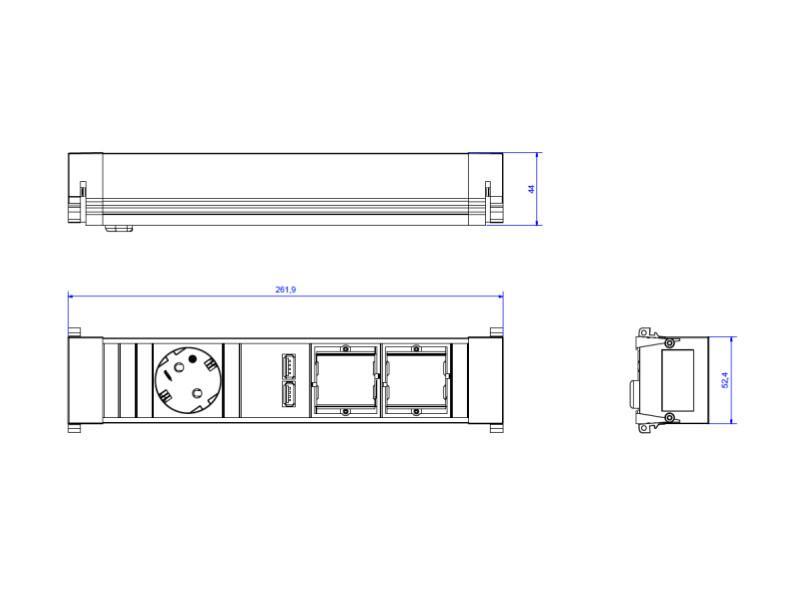

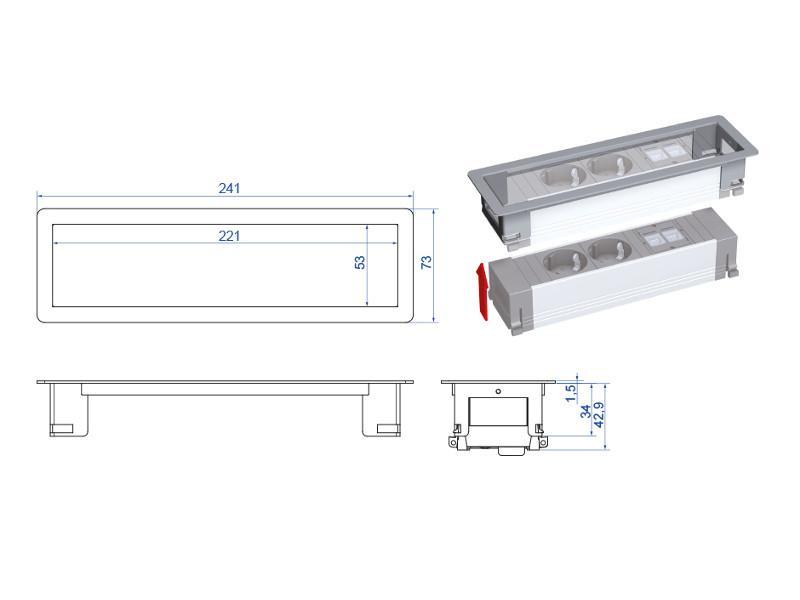

| Technical drawing: | [pdf, 150 kb] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf, 223 kb] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann Power Frame built-in frame |
| Accessories: | Bachmann Custom Module Bachmann Power Frame Cover |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Silver/Anthracite |
| USB-Charger: | USB A/A |
| Land: | Germany |
| screw-on: | No |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
