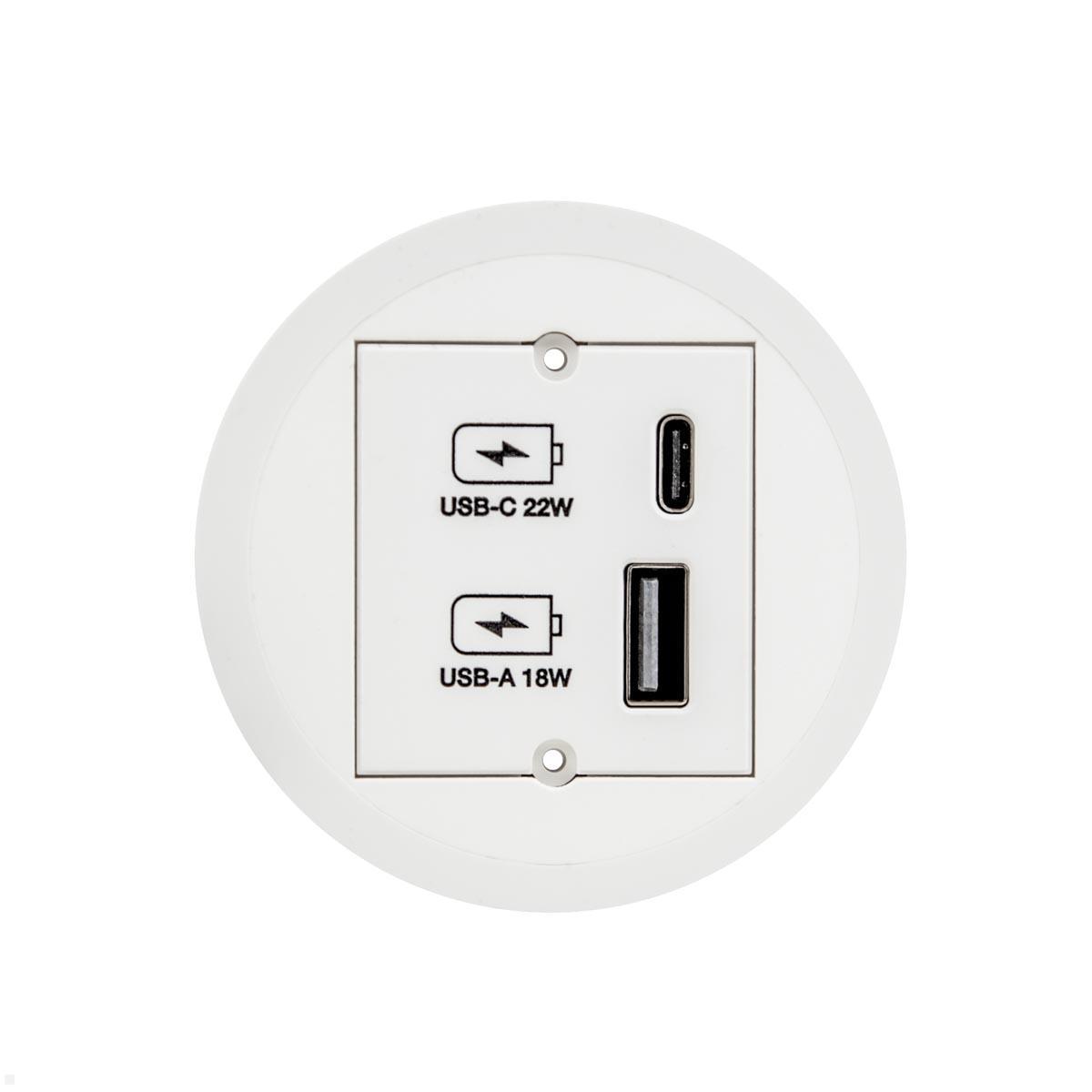

Bachmann PIX built-in USB-A / USB-C charger (926.330)
The Bachmann furniture socket with USB A and USB C charger is a practical charger in white for mobile devices such as smartphones or tablets. The clean look of the Pure White series and the restrained round shape make the Bachmann PIX the ideal socket for built-in furniture.
Furniture built-in PIX with USB chargers
The furniture installation socket with USB chargers PIX from Bachmann from the Pure White series is suitable for charging all common smartphones and tablets such as Apple iPads or Samsung Galaxy Tabs with USB-A (18W) or USB-C (22W) technology and all without the hassle of external power supplies. Thanks to integrated USB Power Delivery (PD) and Qualcomm® Quick Charge™ Fast Charging is no longer a problem. The Bachmann USB Charger Module draws power from the Wieland GST18i3 device connector system. The USB charger offers protection against overcharging, overvoltage, short circuit and overheating.

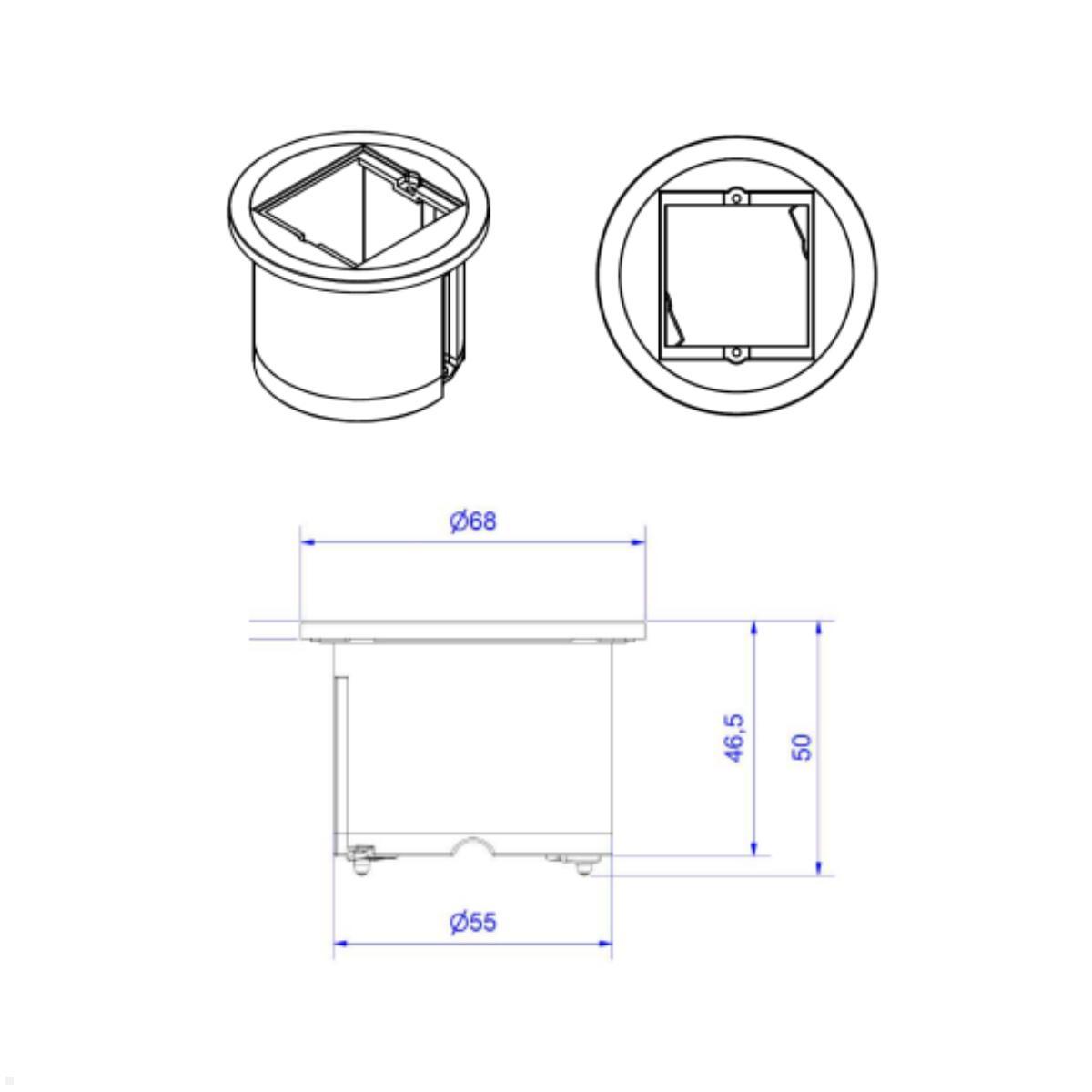

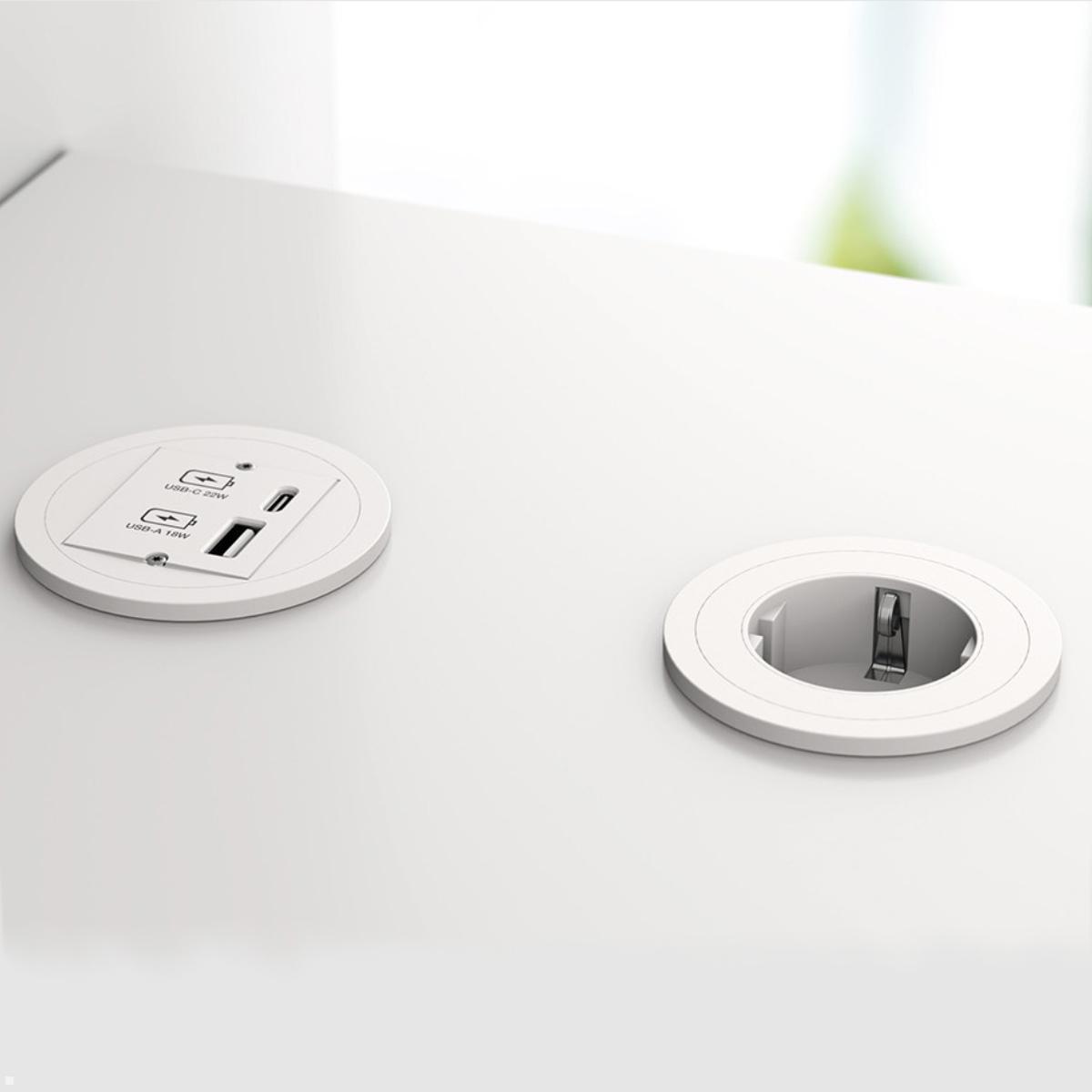

The design series of the built-in socket PIX includes a collection of filigree, round socket and connection units that can be used as you wish. With its round, flat shape and minimalist exterior, the Bachmann PIX with USB C and USB A charger in white 926.330 gets to the heart of the design requirements. The decorative rings can be used individually or in combination, can be selected in different colors and interchanged. A sophisticated, swiveling cover that protects against dust and dirt is optionally available for the Bachmann PIX 926.330 and can also be added later. The compact design (HxØ: approx. 50 x 68 mm) and low installation depth (approx. 45 mm) ensure space-saving installation directly from above or from the front, which is also possible at a later date. Whether on the desk in the office, in the kitchen, in the bathroom, in the lounge element or other living room scenarios, PIX offers a world of connections that can be individually designed.
The furniture built-in PIX with USB chargers consists of the following items:
1x Bachmann PIX with custom module, empty, white (926.310)
1x Bachmann CM USB charger with USB-A and USB-C, white (917.2271)

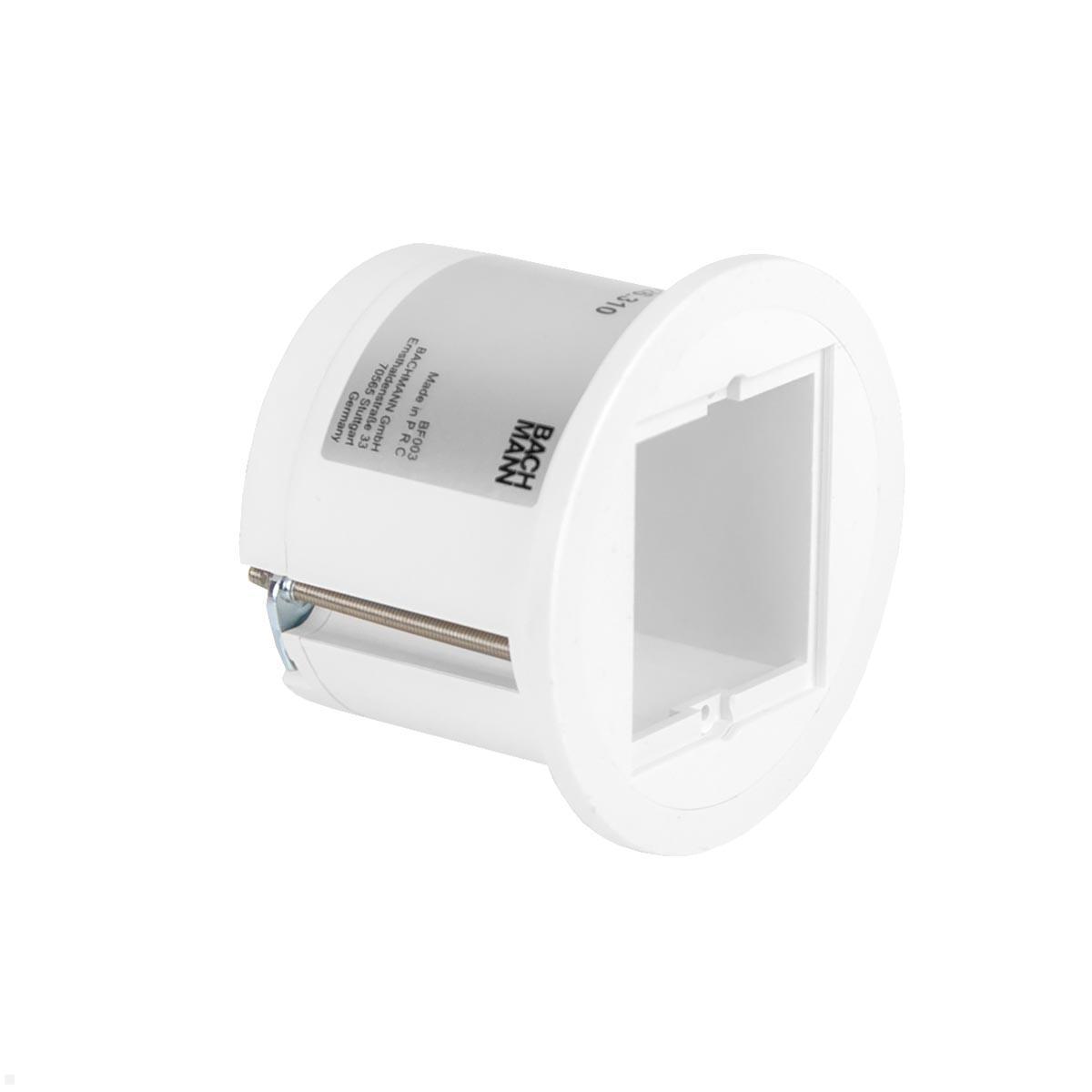

Key features Bachmann PIX furniture installation socket (926.310)
- Housing white plastic
- 1x custom module without cable

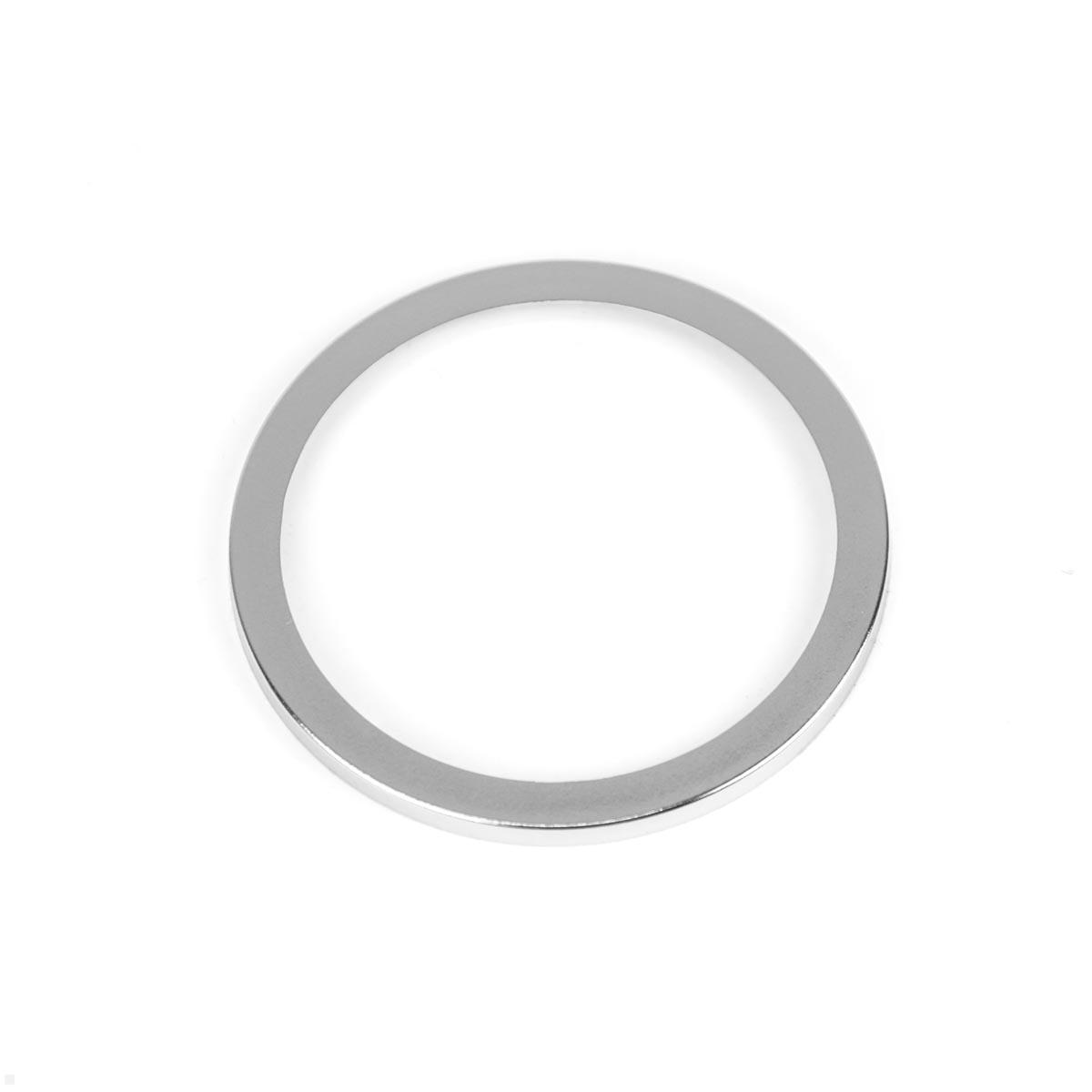

- Interchangeable decorative rings in stainless steel look (aluminium) and white
- Small installation diameter of 56 mm

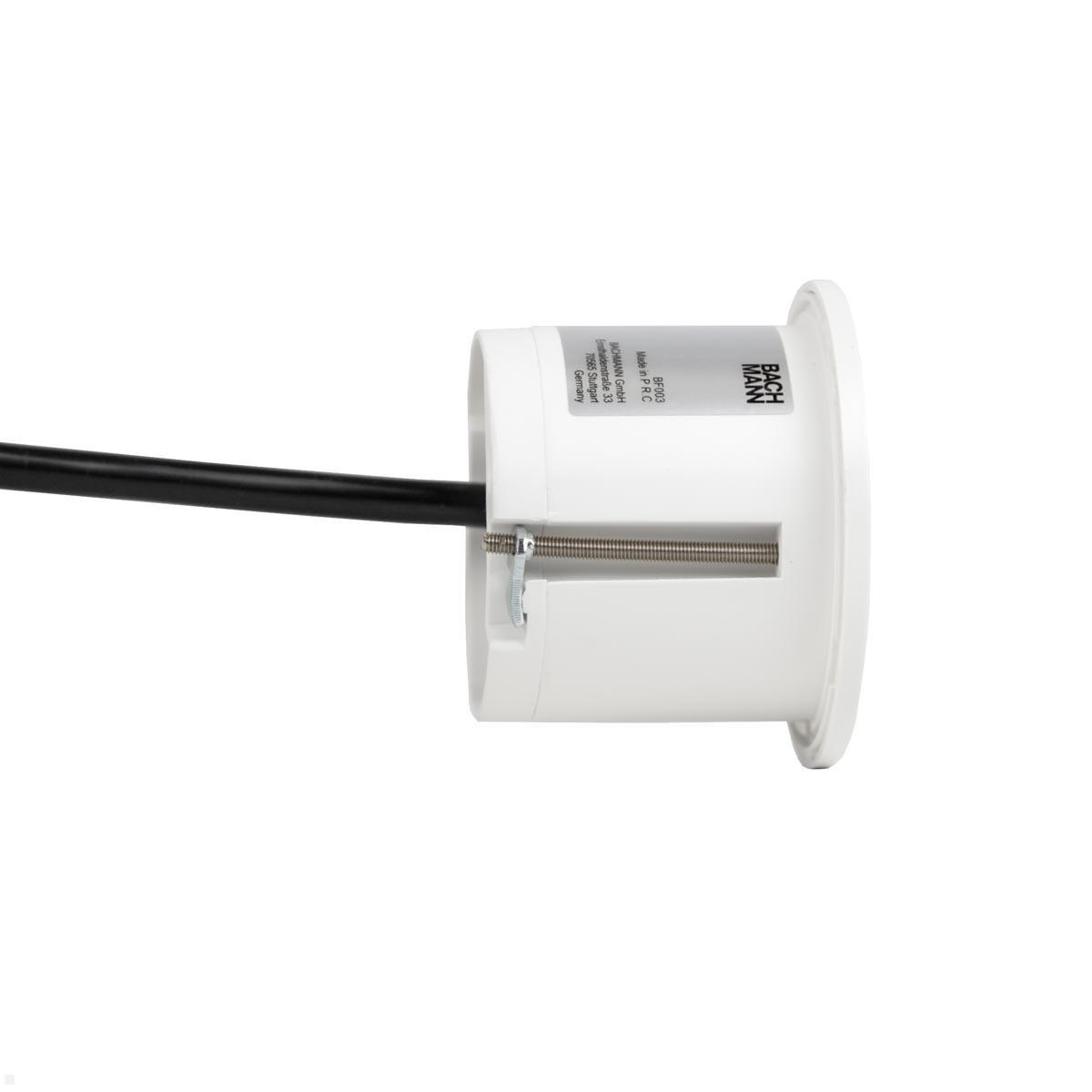

- Installation depth 45 mm

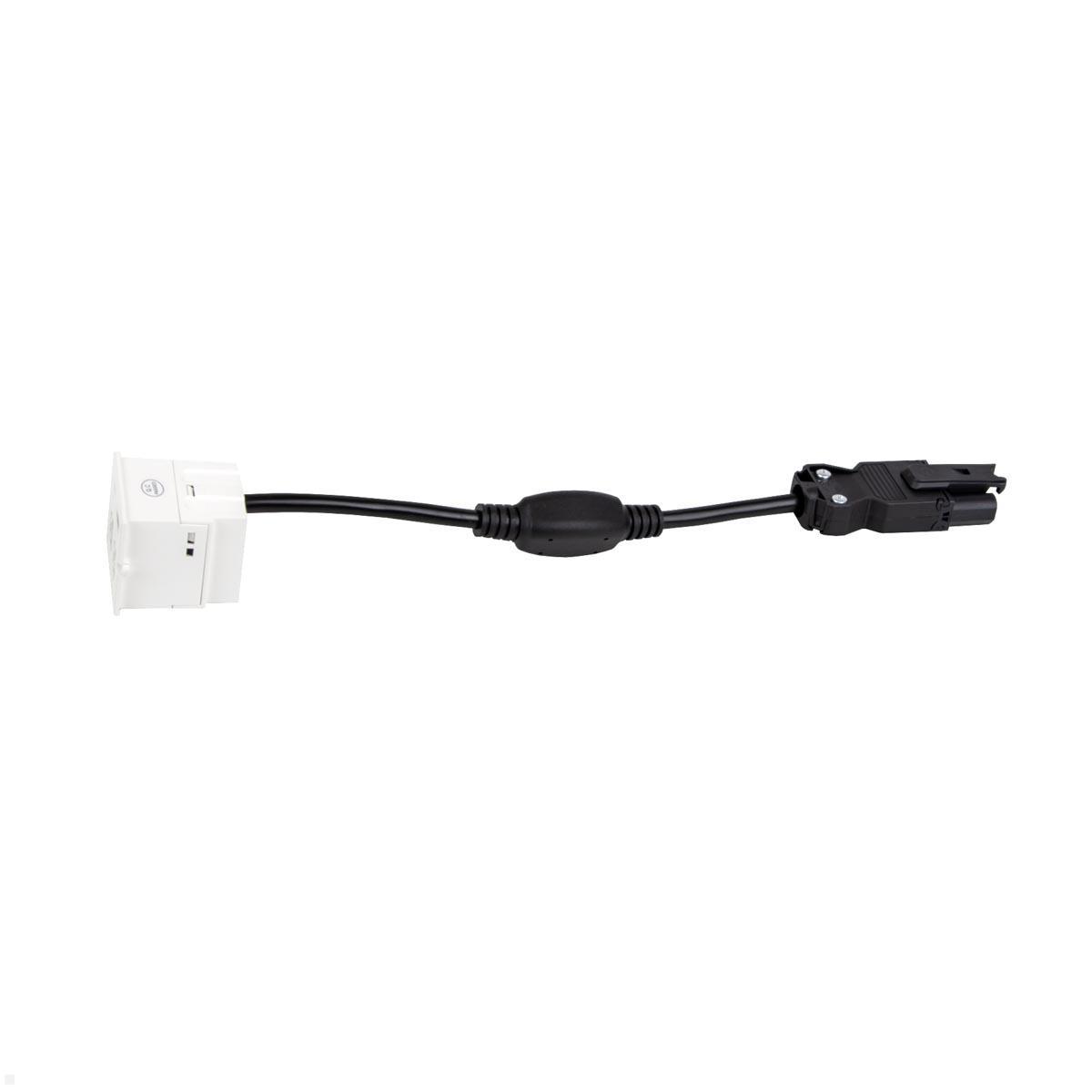

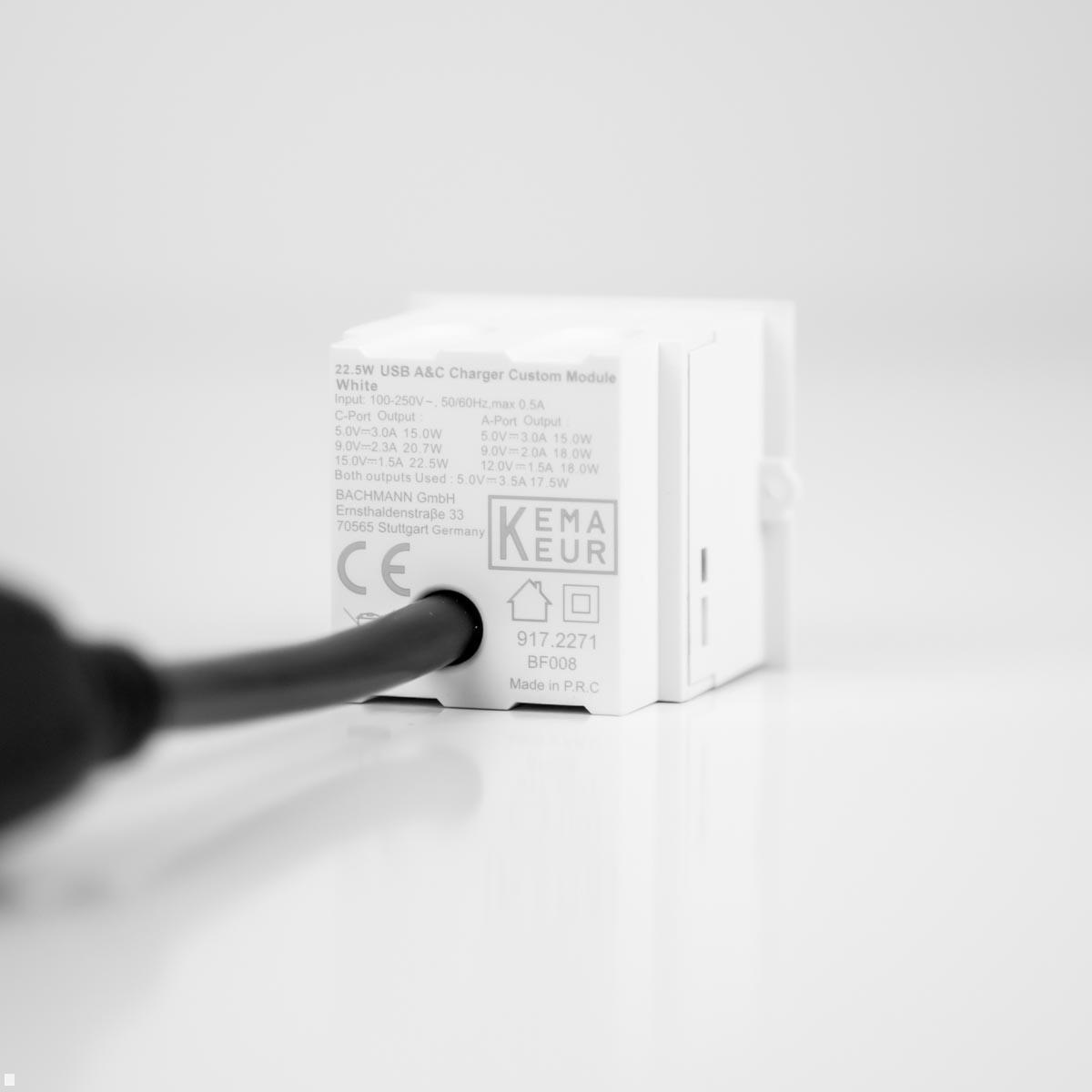

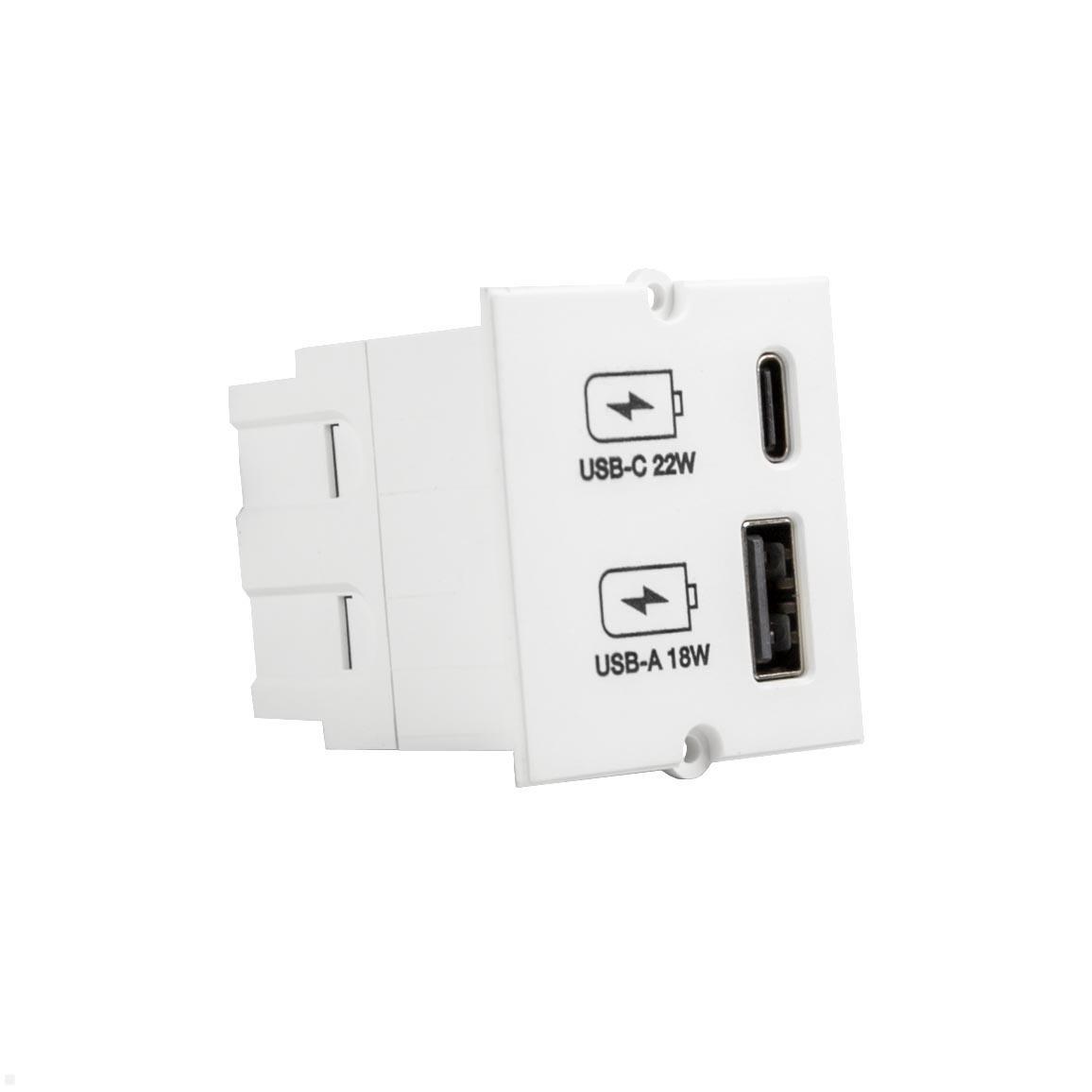

Key features Bachmann Custom Module (917.2271)
- Color: white (black cable)
- Front:
- 1x USB-A socket 18W
- 1x USB-C socket 22W
- USB-A socket: 5V DC/3,0A; 9VDC/2.0A; 12V DC/1.5A
- USB-C socket: 5V DC/3.0A; 9VDC/2.3A; 15V DC/1.5A
- C+A socket: 5V/3.5A
- Input voltage: 250 V

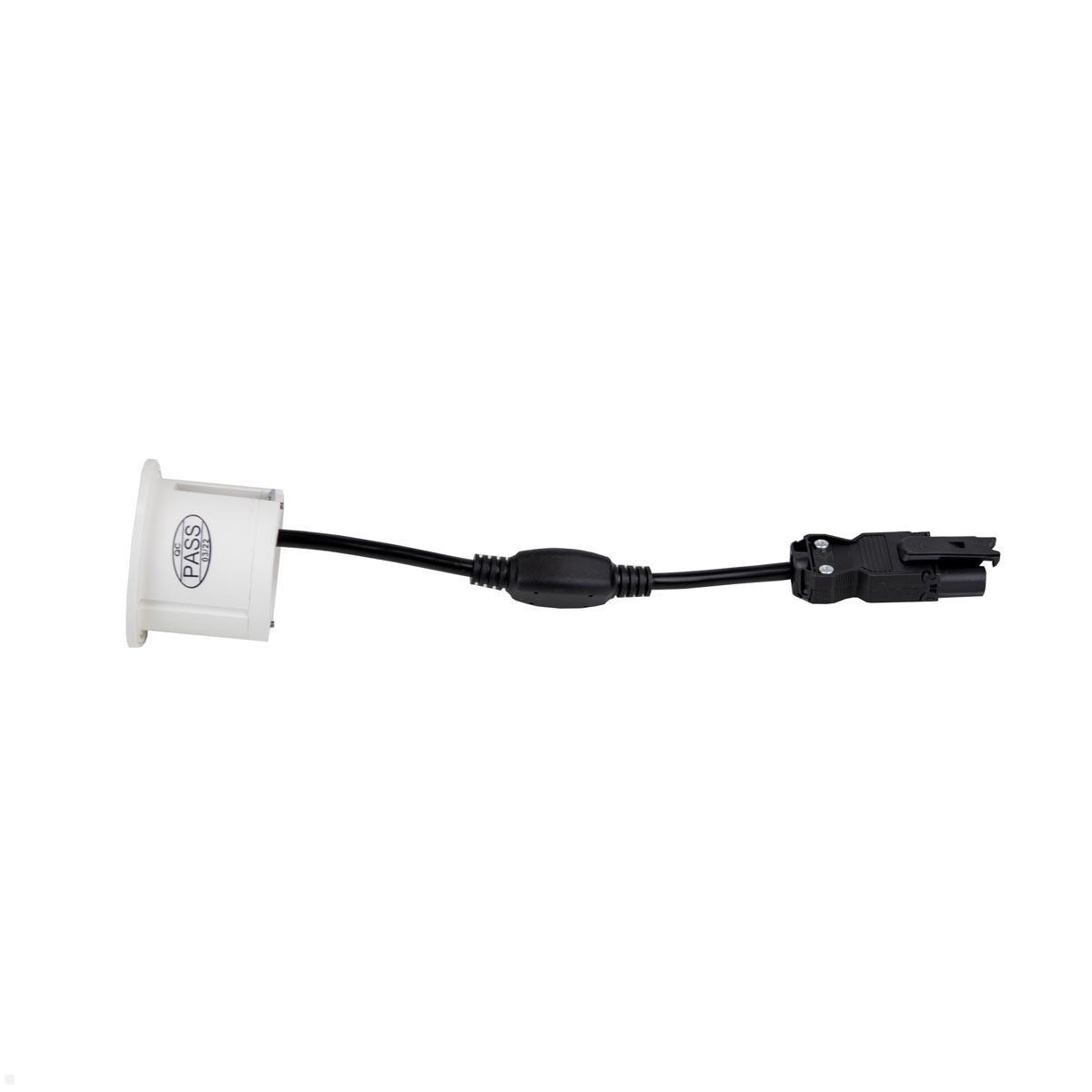

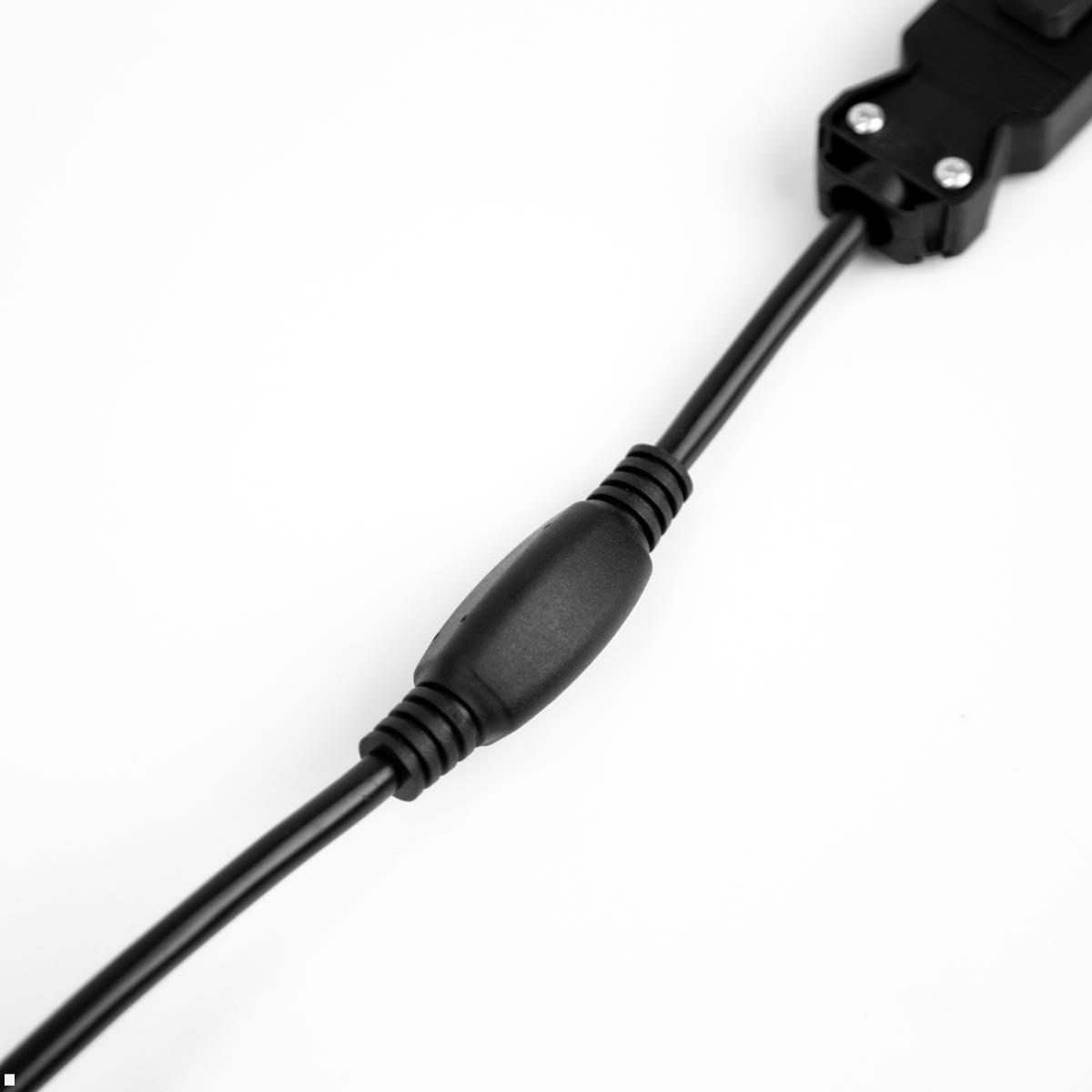

- Rear: GST18i3 plug with approx. 0.2m cable
- Charging standards: Power Delivery USB 3.1 PD, Qualcomm Quick Charge USB QC 3.0
- Integrated current limitation
- Integrated overtemperature protection
Optionally available

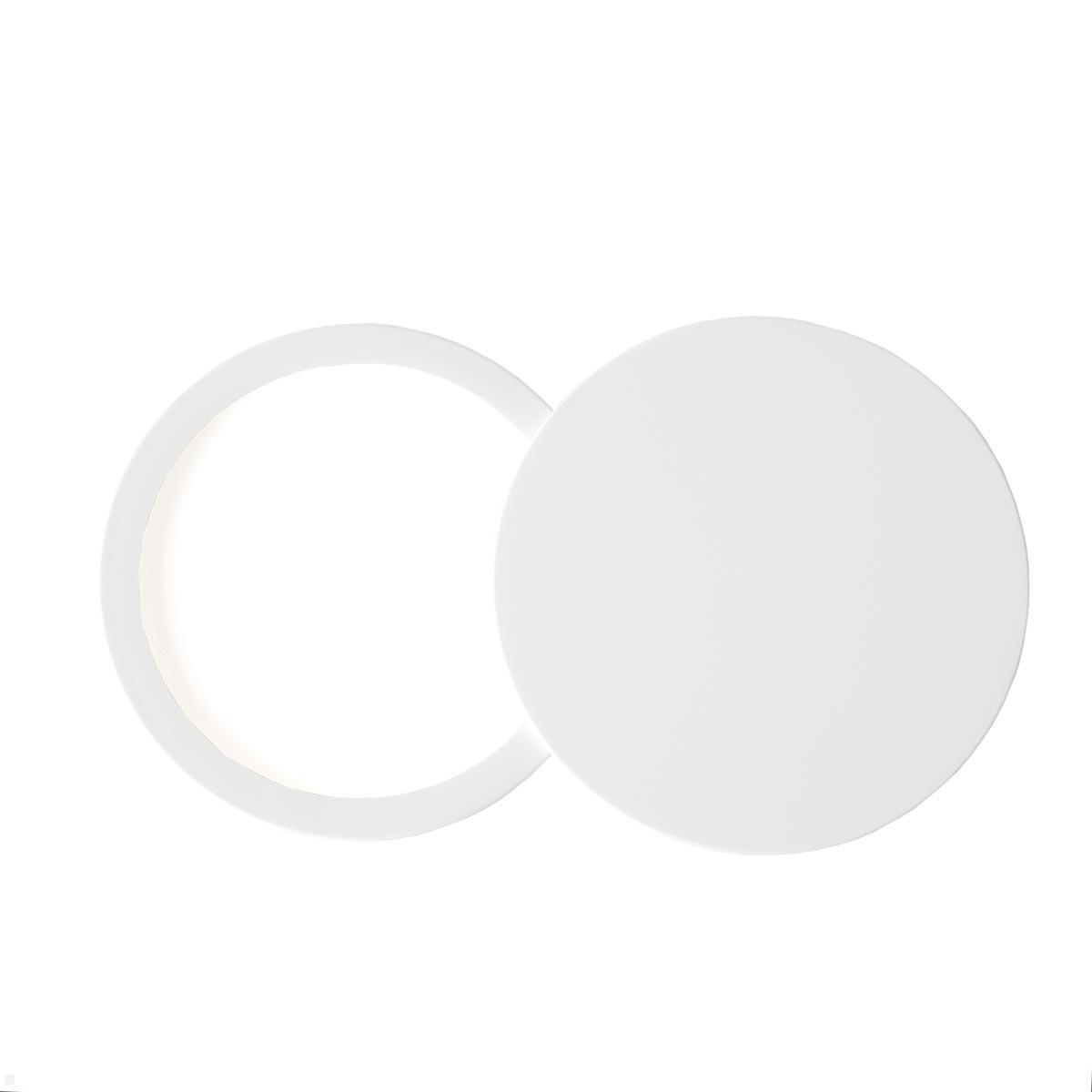

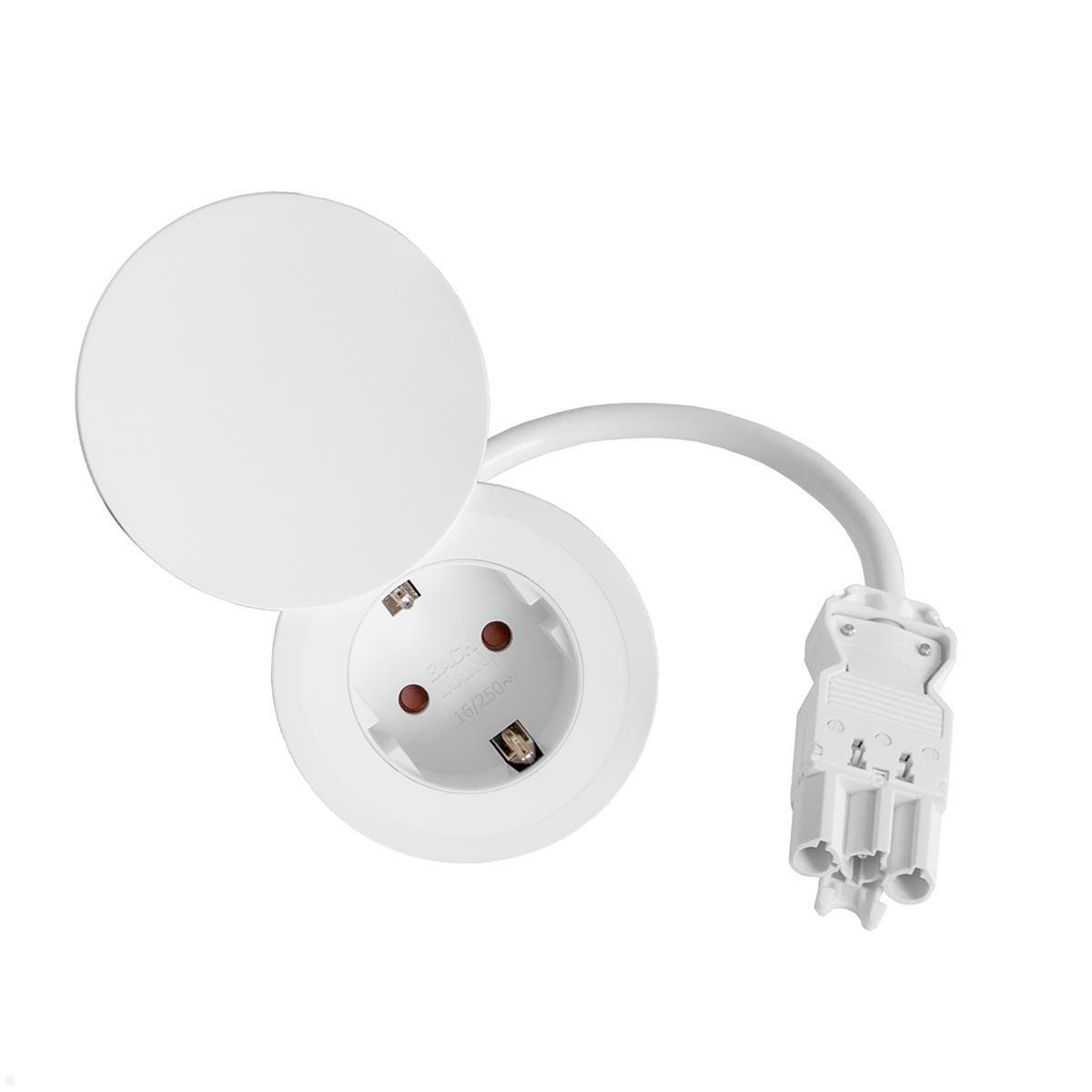

Bachmann PIX accessory cover set (926.103)
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|

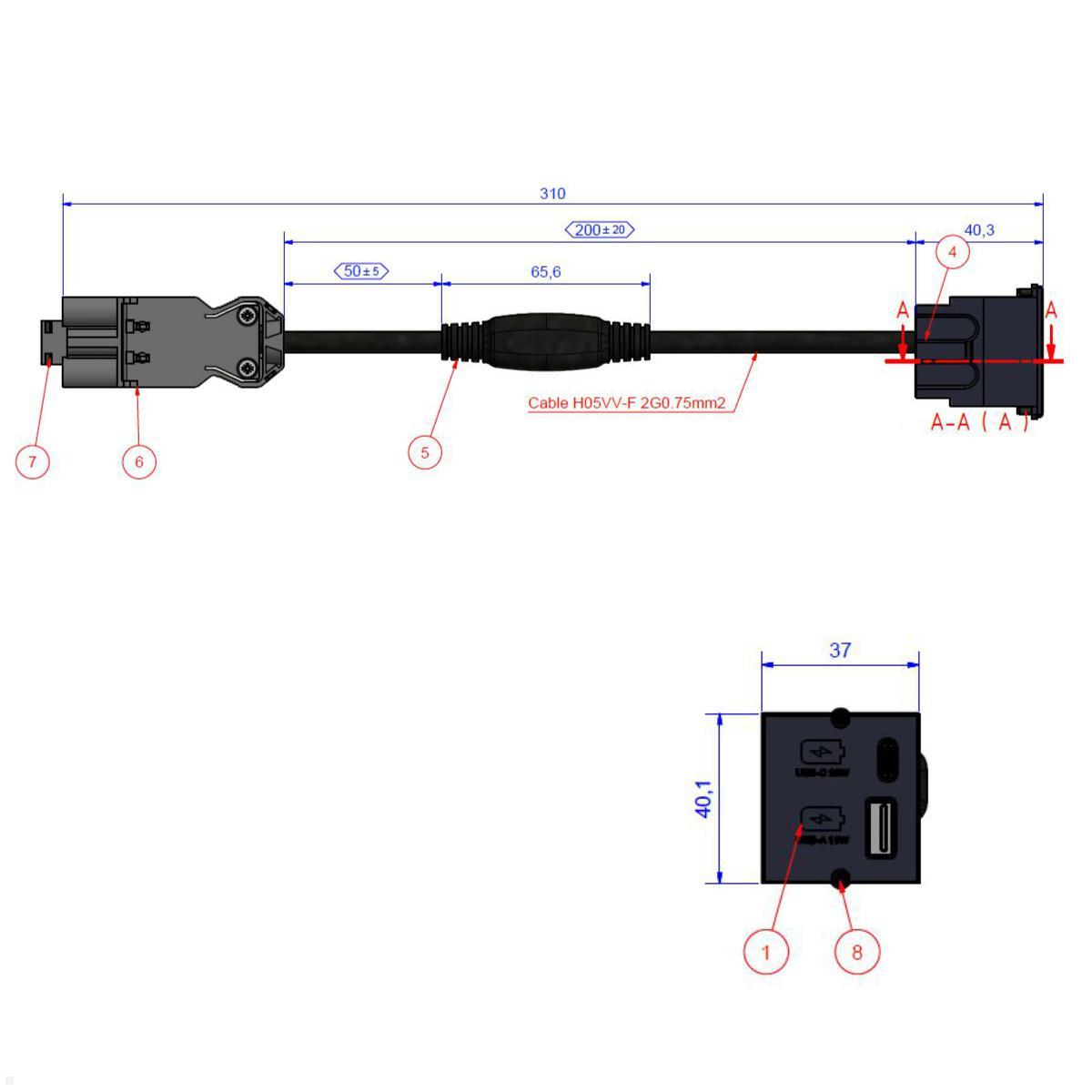

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 126 x 126 x 116 |
| Scope of delivery: | 1x Bachmann 926.310 | 1x Bachmann 927.2271 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Weiß |
| USB-Charger: | USB A/C |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
