Bachmann KAPSA S 2xsocket 1xcustom GST18 (927.052)
A low installation depth of approx. 45 mm and a solid design characterise Bachmann KAPSA 2x Power socket outlets and 1 x custom module GST18i3 (927.052) and confirm the well-worn saying: less is more. The cover – which can be lipped open and interchanged – provides protection against external influences and is available in several versions.

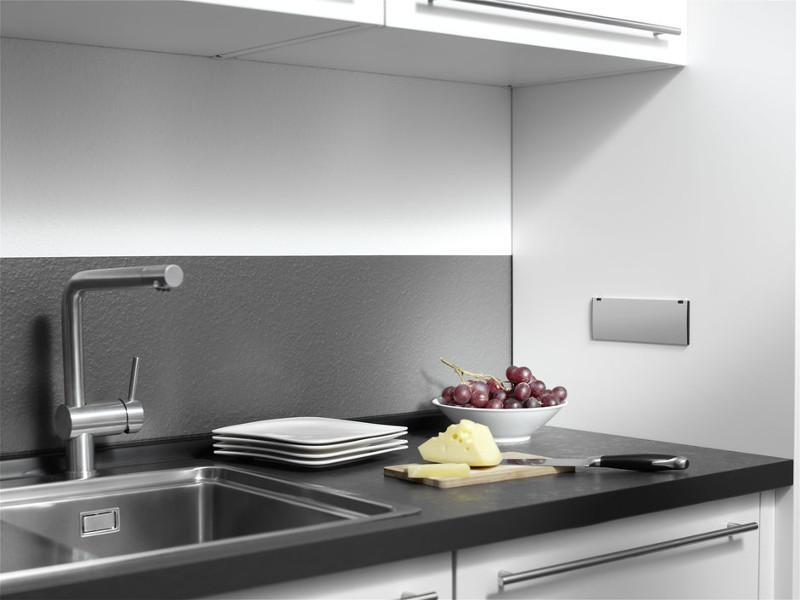

KAPSA's classical, reduced lines make it a power strip that is both design-orientated and space-saving – designed for the kitchen, office and many other areas.
Bachmann KAPSA 2 x power sockets, 1 x custom module GST18i3 (927.052)
The cover – which can be lipped open and interchanged – provides protection against external influences and is available in several versions. Three-way, modular equipment options, thereby allowing flexible coniguration.
Installation from above guarantees simple mounting – also optionally available as a retroitted solution. A low installation depth of approx. 45 mm and a solid design characterise KAPSA and confirm the well-worn saying: less is more.
Key features Bachmann KAPSA 927-052
- 2 x socket outlets with earthing contact, shuttered, black, set at 35°
- 1 x custom module
- Power input 0.2 m cable with GST18i3, black
- Length: approx. 204 mm
- Aluminium profile, anodised
- Covers can be easily interchanged and are available in several versions
- Three-way, modular equipment options
- Aluminium cover with high-quality feel
- Low installation depth (approx. 45 mm)
- Simple mounting from above, retroitting possible too
- Note: Housing only, cover must be ordered separately
| Product sheet: |  [pdf, 136 kb] |
|---|---|
| Technical drawing: | [pdf, 103 kb] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf, 325 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 3 |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
