Bachmann IT PDU Vertical power strip 12x C13 6x sockets 1U (800.0109)

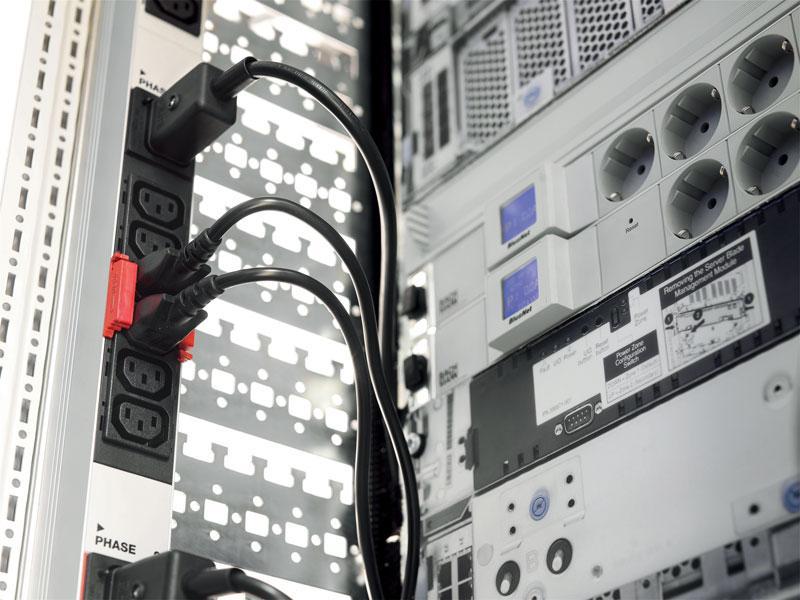

The Bachmann power strip 800.0109 is a IT PDU power strip Vertical with 1U Alu-Profile for an efficient power distribution in the datacenter, server rack, or network rack. The power distribution unit contains 12x C13 socket outlets as well as 6x socket outlets, identified by colour and divided into 3 phases.
Bachmann IT PDU Vertical power strip 12x C13 6x sockets (800.0109)
With its IT PDU Basic BACHMANN provides a huge choice of PDUs in a high-quality aluminium profile. The size of the high-quality and very stable aluminum profile of the Bachmann IT PDU Vertical 800.0109 is compact 44 x 47 mm. The space-saving design thus provides room for data cabling and airflow for the air-conditioning of the server rack.
Key features Bachmann PDU power strip 12x C13 6x sockets 1U (800.0109)
- PDU Basic ALU 1U VM (16A / 400V / 50 Hz)
- 12x IEC C13 socket outlets lockable
- 6x german type socket outlets identified by colour
- Divided into 3 phases with labeling of the phases
- Power supply: 3,0m 5G2,5mm² with CEE plug 16A 5-pol. red
- Dimensions (WxHxD): 821 x 44 x 47 mm
- Incl. Mounting bracket with screws
- Profile: Aluminium anodised
- Space-saving and modularly expandable integration of the PDU into the server rack
| Product sheet: |  [pdf, 1,2 MB] |
|---|---|
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 6 |
| color: | Others |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
