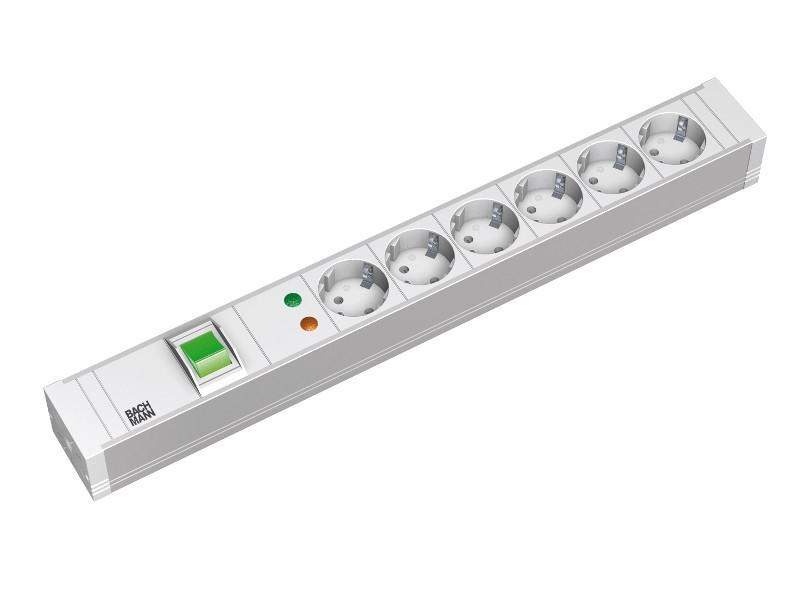

Bachmann IT PDU power strip 6x sockets 1x switch OVP PVC (333.605)
The Bachmann power strip 333.605 is a 19 inch PDU power strip with 1,5U PVC-Profile for an efficient power distribution in the datacenter, server rack, or network rack. The power distribution unit contains 6x german type socket outlets with overvoltage protection Type III, a switch and a 2,0m power supply cable with right-angled earthing contact plug.
Bachmann PVC power strip 1,5U 6x sockets 1x switch with OVP (333.605)
BACHMANN offers a huge range of socket outlets in a high-quality PVC profile for a future-oriented, highly efficient power distribution in the datacenter, server rack, or network rack with the IT PDU Basic and Vertical. With their extremely compact size of just 1,5 height units the Bachmann PDU 333.605 can be easily integrated into your IT rack. Their multi-functional mounting brackets allow the units to be easily mounted in various ways (e.g. inwardly recessed).
Key features Bachmann IT PDU 6x power strip 1x switch OVP (333.605)
- IT PDU Basic 1,5U (230V / 50Hz)
- Torsionally rigid profile made of PVC
- Plug: right-angled earthing contact plug
- 6x german type socket outlet 35° twisted, white
- 1x switch, 2-pole, illuminated
- Overvoltage protection Type III (OVP)
- Dimensions: 440 x 52,4 x 43,7 mm
- Power supply: 2,0m H05VV-F 3G 1,50 mm²
- Rated voltage: 230V

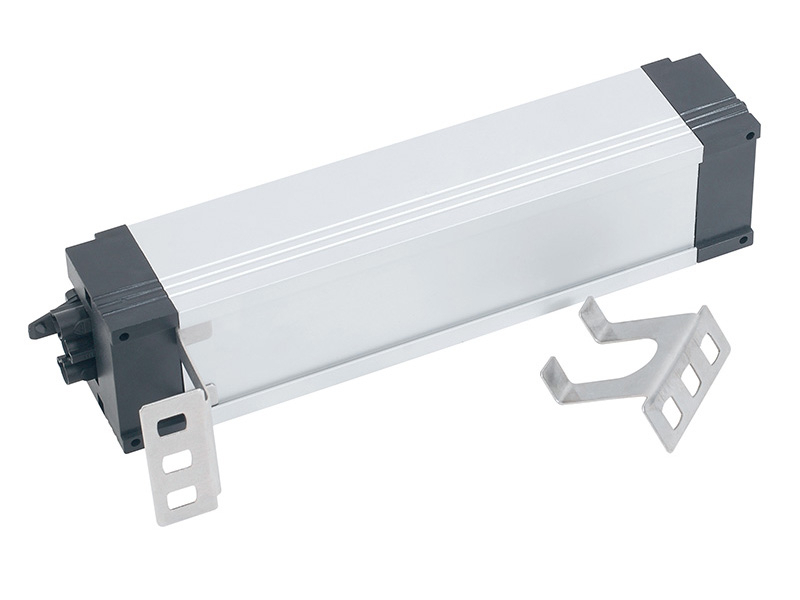

- Incl. mounting brackets
- End caps riveted, not openable
- Finish profile: grey Pantone cool grey 2U
| Product sheet: |  [pdf, 1,2 MB] |
|---|---|

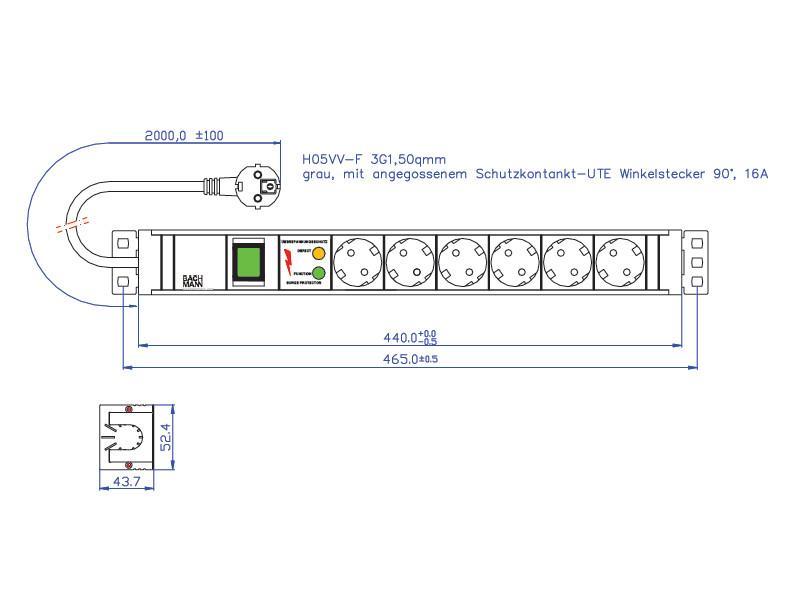

| Technical drawing: | [pdf, 45 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 6 |
| Overvoltage protection: | Yes |
| color: | Grey |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
