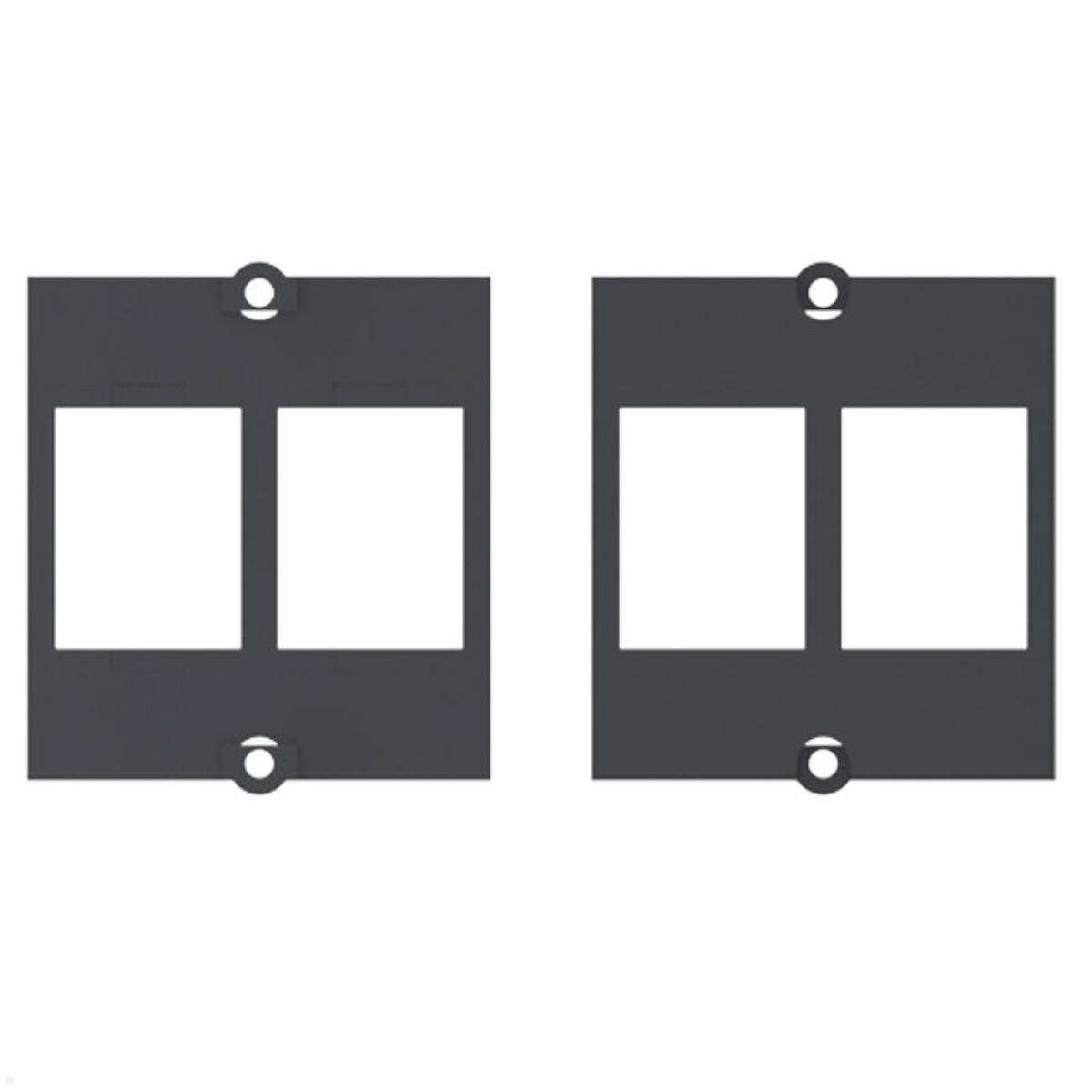

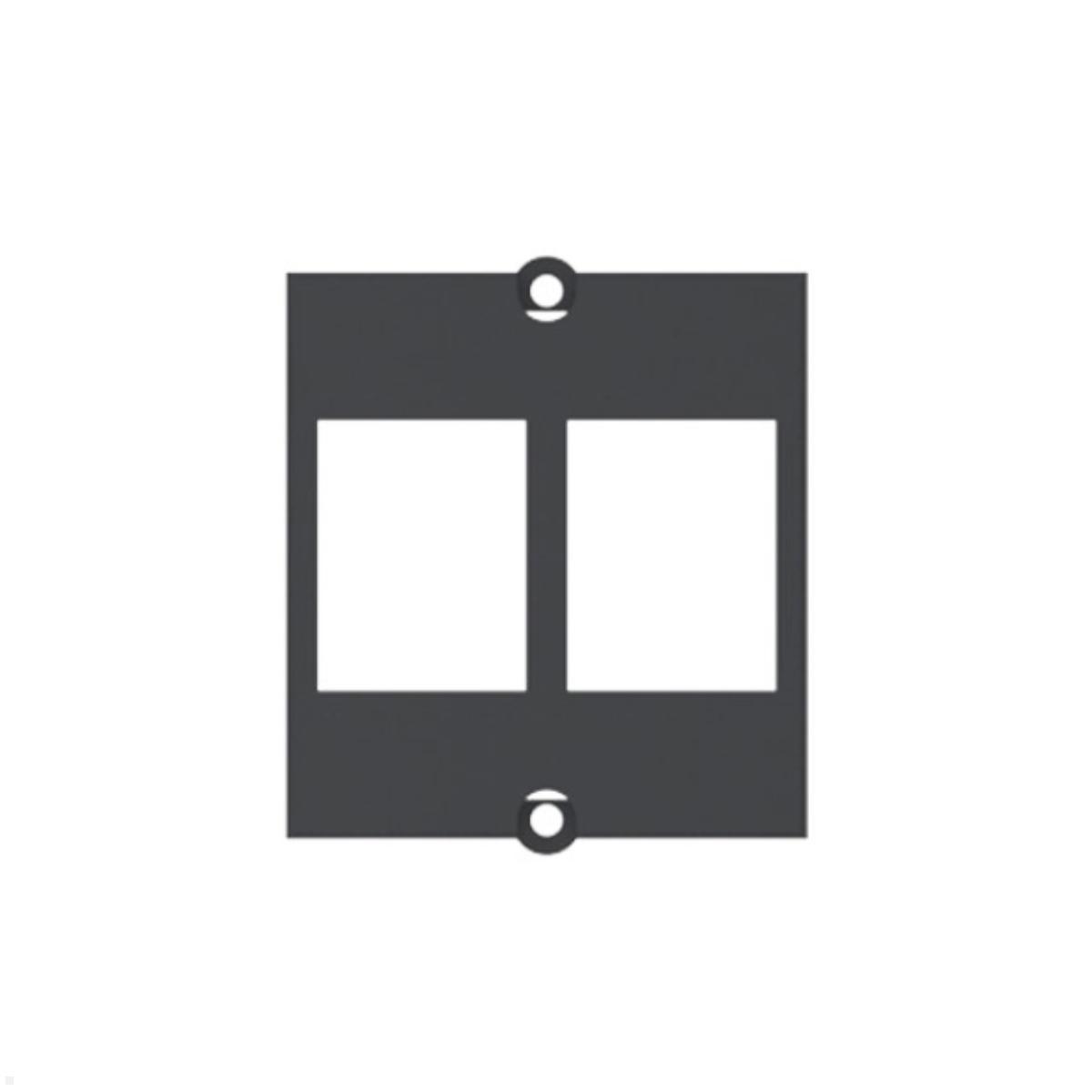

Bachmann frame for 2x Tera CAT7 module (917.039)
The Bachmann 917.039 module frame is designed for mounting a 2x Tera CAT7 module. This frame is part of the Bachmann system for designing cable and network installations.
Module frame for Tera CAT7 Keystone
The Bachmann frame 917.039 is a custom module for Keystones, suitable for installing 2x Tera CAT7 modules (not included). This frame is part of the Bachmann system for arranging cable and network installations in offices or other commercial environments. Due to their structure, they enable you to install them easily and flexibly in the areas of facility systems, rack and electrical installations.
Key features keystone module
- Frame for 1x Tera CAT7 module keystone mount (not included)
- Module frame with cutout and mounting module
- Incl. 2 Torx T6 screws supplied
- Colour: black/grey
| Product sheet: |  [pdf] |
|---|---|

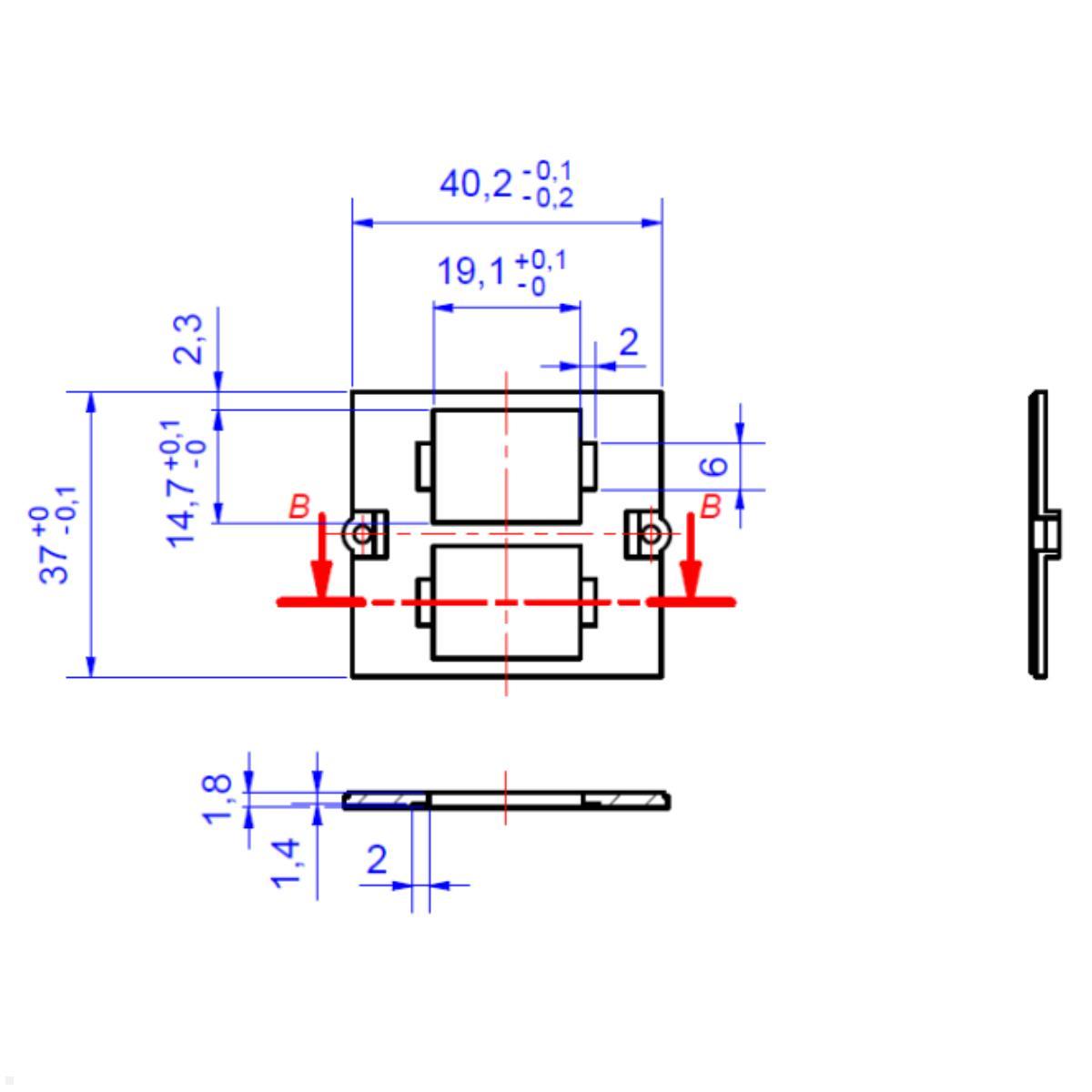

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann connection panel with CM inserts |
| Packaging dimensions (LxWxH in mm): | 40 x 40 x 20 |
| Scope of delivery: | 1 x custom module frame for keystones |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Grey/Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
