Bachmann ELEVATOR 1x socket 2x euro (928.003)

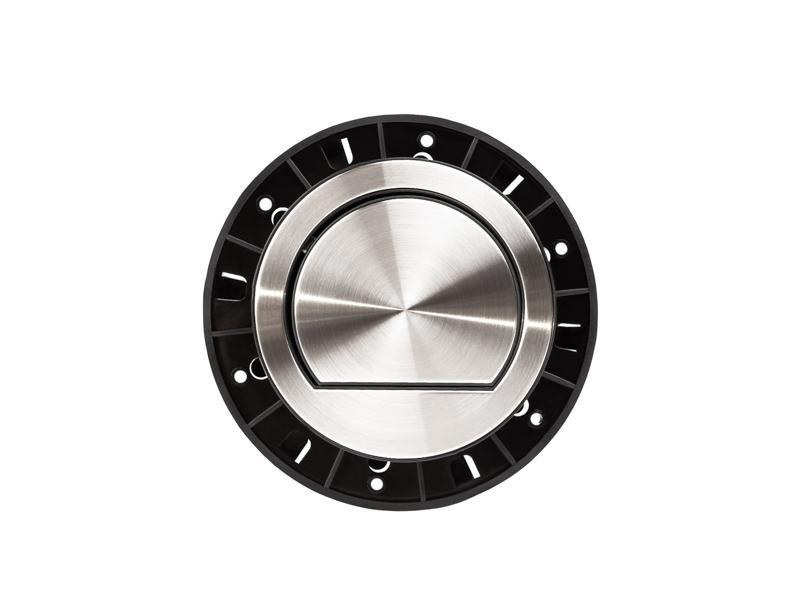

The power strips Bachmann ELEVATOR 1x socket 2x euro (928.003) is a tiny yet impressive powerhouse. Simply press down with your thumb to open ELEVATOR. It is simply lowered again after use.
Bachmann ELEVATOR 1x socket 2x euro (928.003)
Bachmann ELEVATOR – The elevator is powered straight away

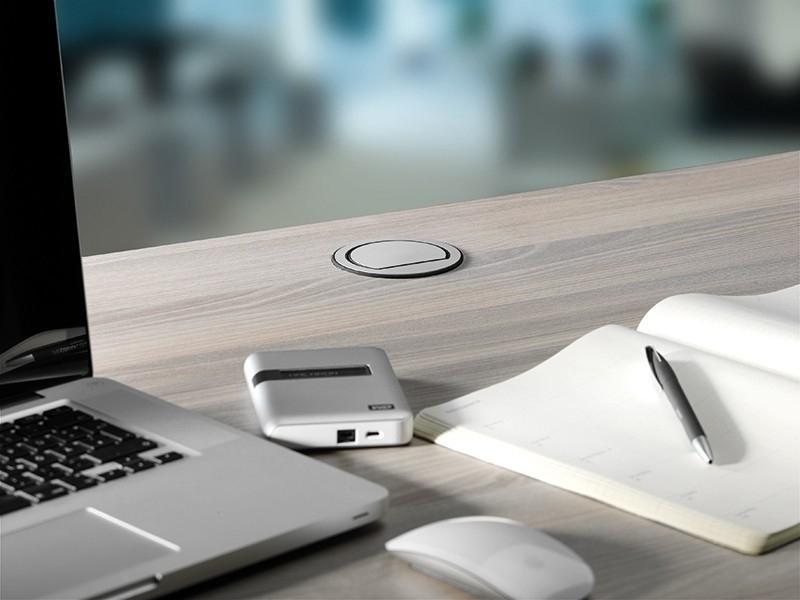

Bachmann ELEVATOR fits perfectly in any working environment. At 79 mm in diameter, Bachmann ELEVATOR is ideal for integrating power and data connections in tiny spaces.

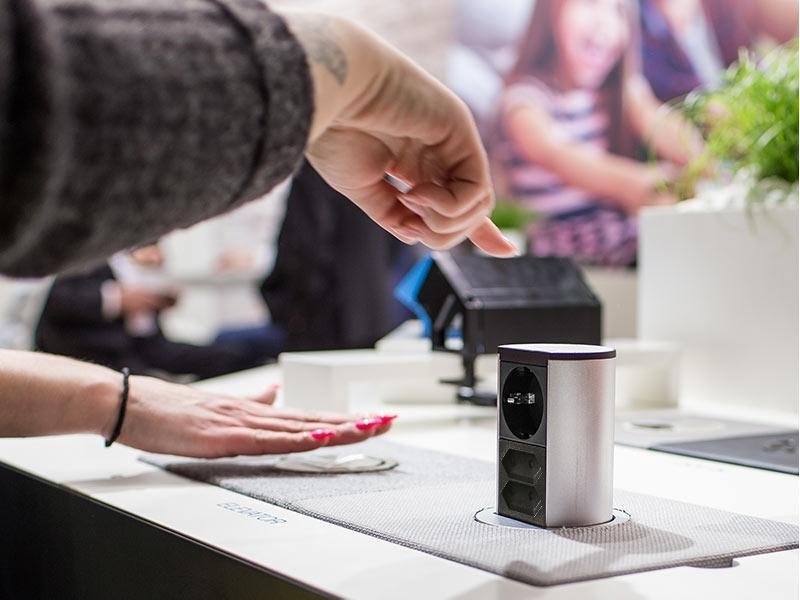

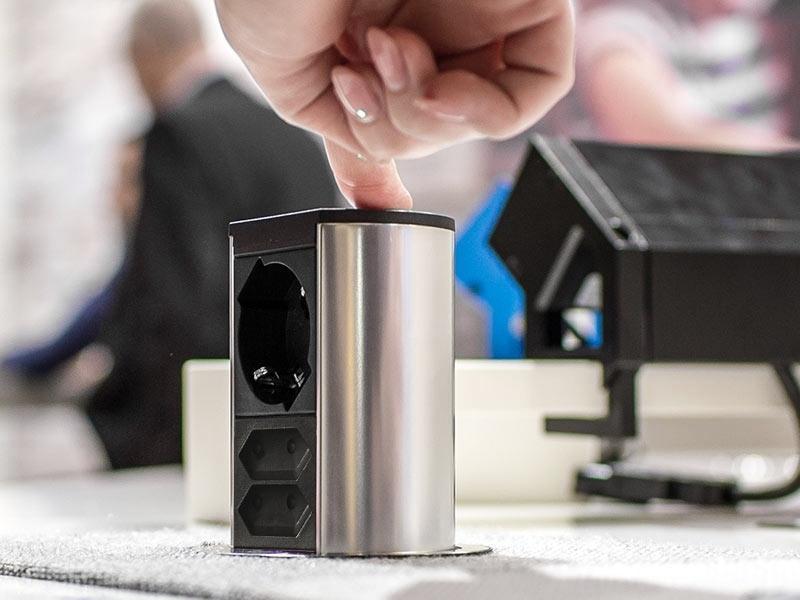

Simply press down with your thumb to raise and lower.

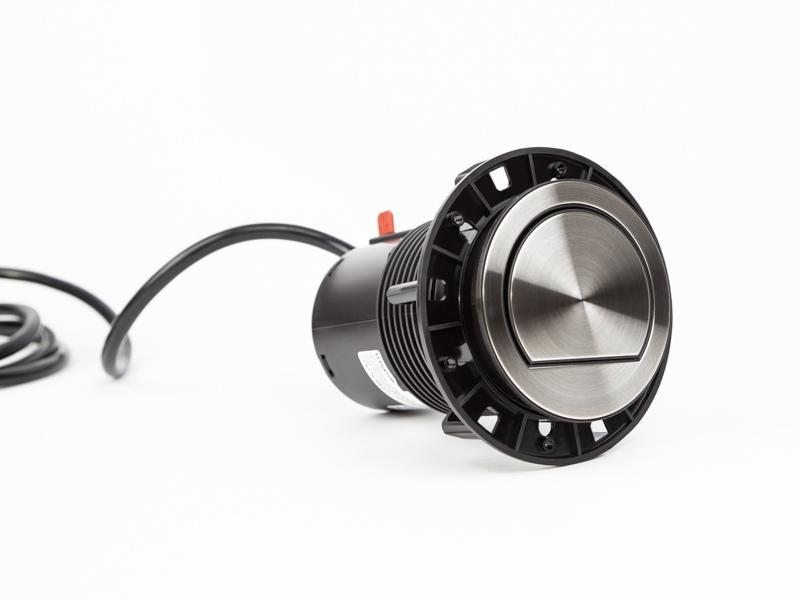

Installation is incredibly simple. Bachmann ELEVATOR is placed in a cut-out 79 mm in diameter and secured to the desk or table top from below using a lock ring. The Bachmann Elevator can also be installed horizontally without any problems.
Key Features:

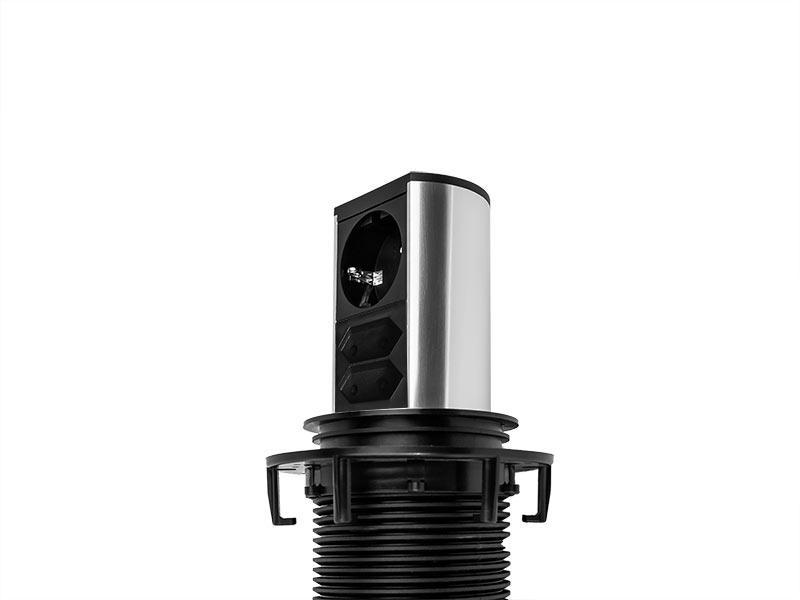

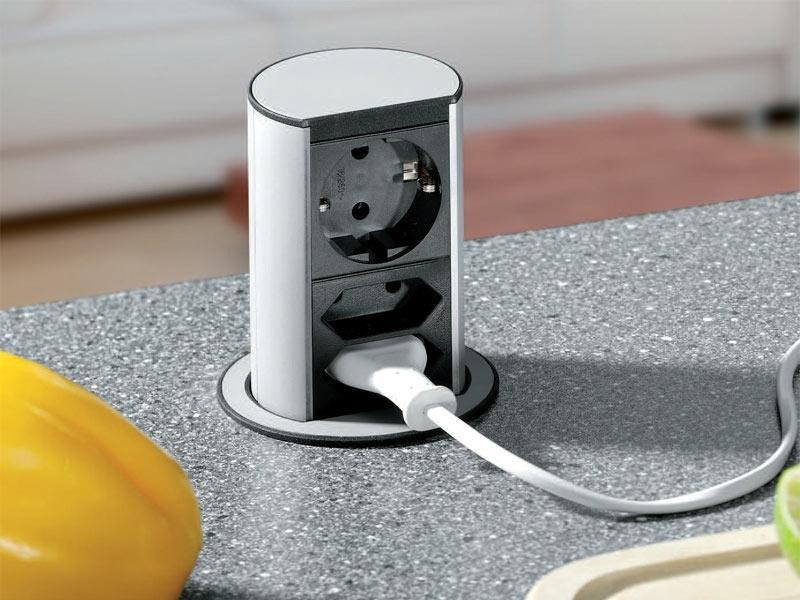

- 1x socket outlet with earthing contact, child-proof, black, set at 35°
- 2x Euro socket outlets, child-proof, black
- Stainless steel look aluminium profile
- kitchen variant

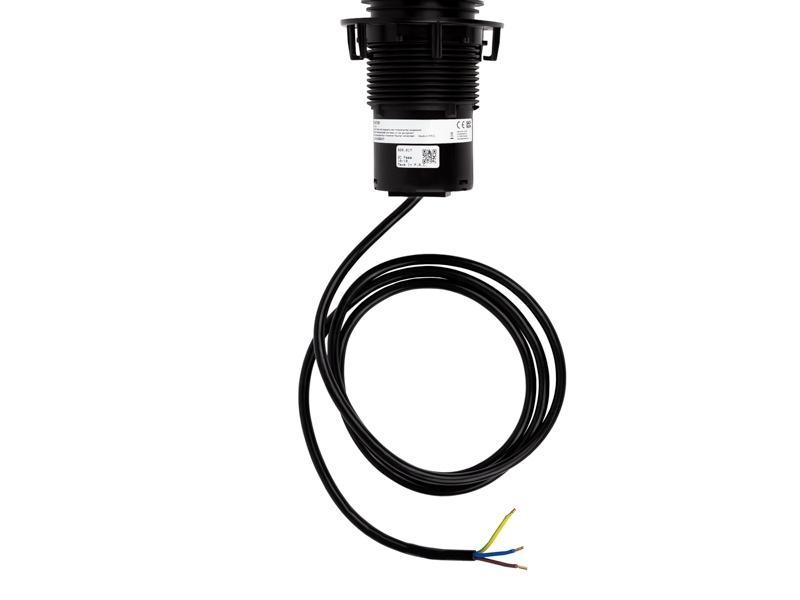

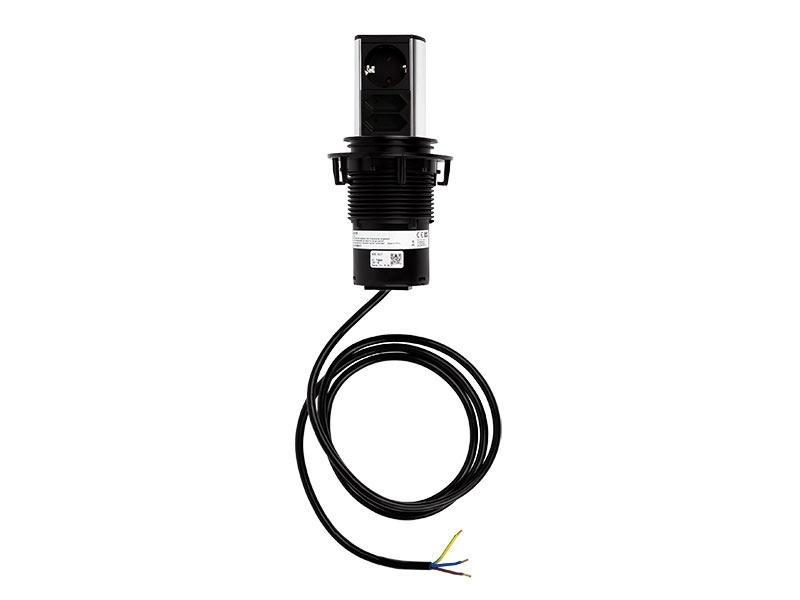

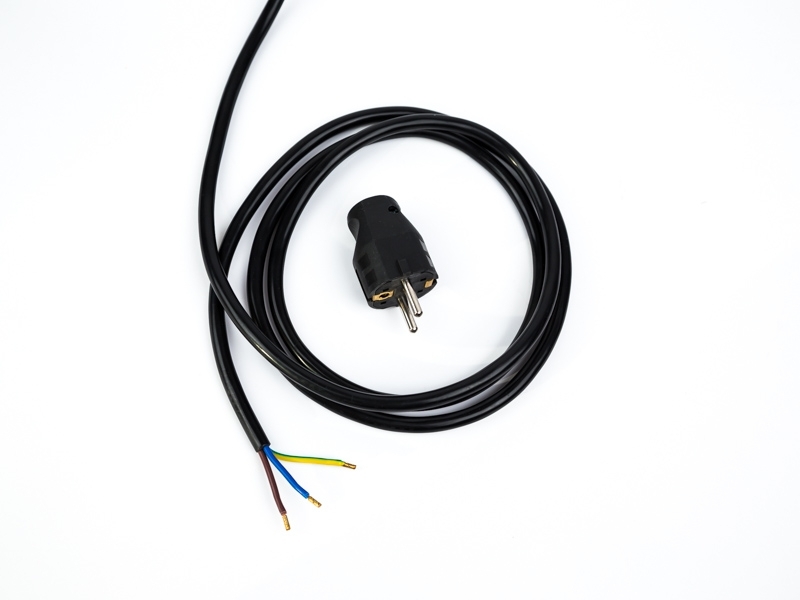

- power input: 2.0 m H05VV-F 3G 1.5 mm² with end
- sleeves and earthing contact mounting plug (included)
- cut-outs 79 mm in diameter
- Lift high 100mm
The Advantages at a glance:
- Press down with your thumb to raise
- 2 configurationsSuitable for Standard 79mm hole
- Quick and easy to install
- Suitable for retrofitting
- Aluminium nickel-plated, brushed
- Classic design
- For desk or table top thicknesses of 16 - 40 mm
| Product sheet: |  [pdf, 132 kb] |
|---|---|

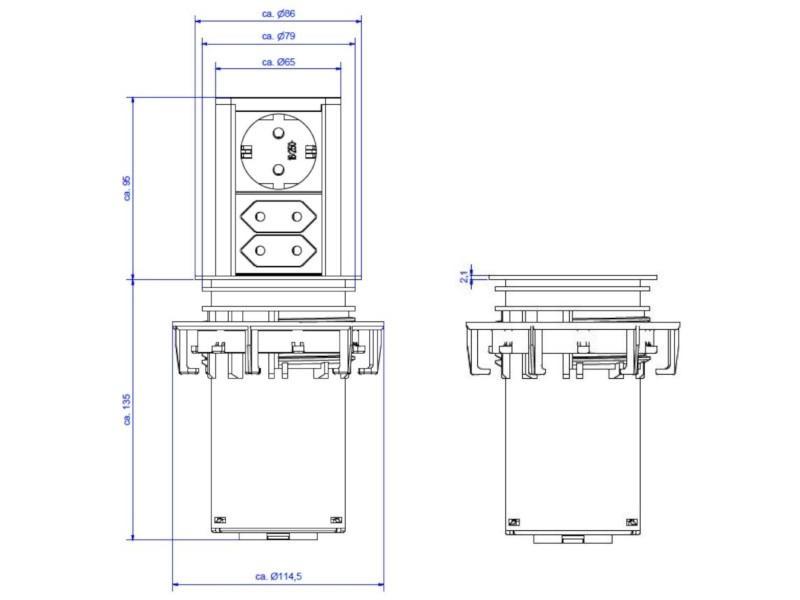

| Technical drawing: | [pdf, 143 kb] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf, 226 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Stainless Steel |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
