Bachmann ELEVATOR 1x power socket outlet 2x CAT6 (928.004)
The power strips Bachmann ELEVATOR 1x power socket outlet 2x CAT6 (928.004) is a tiny yet impressive powerhouse. Simply press down with your thumb to open ELEVATOR. It is simply lowered again after use.
Bachmann ELEVATOR 1x power socket outlet 2x CAT6 (928.004)

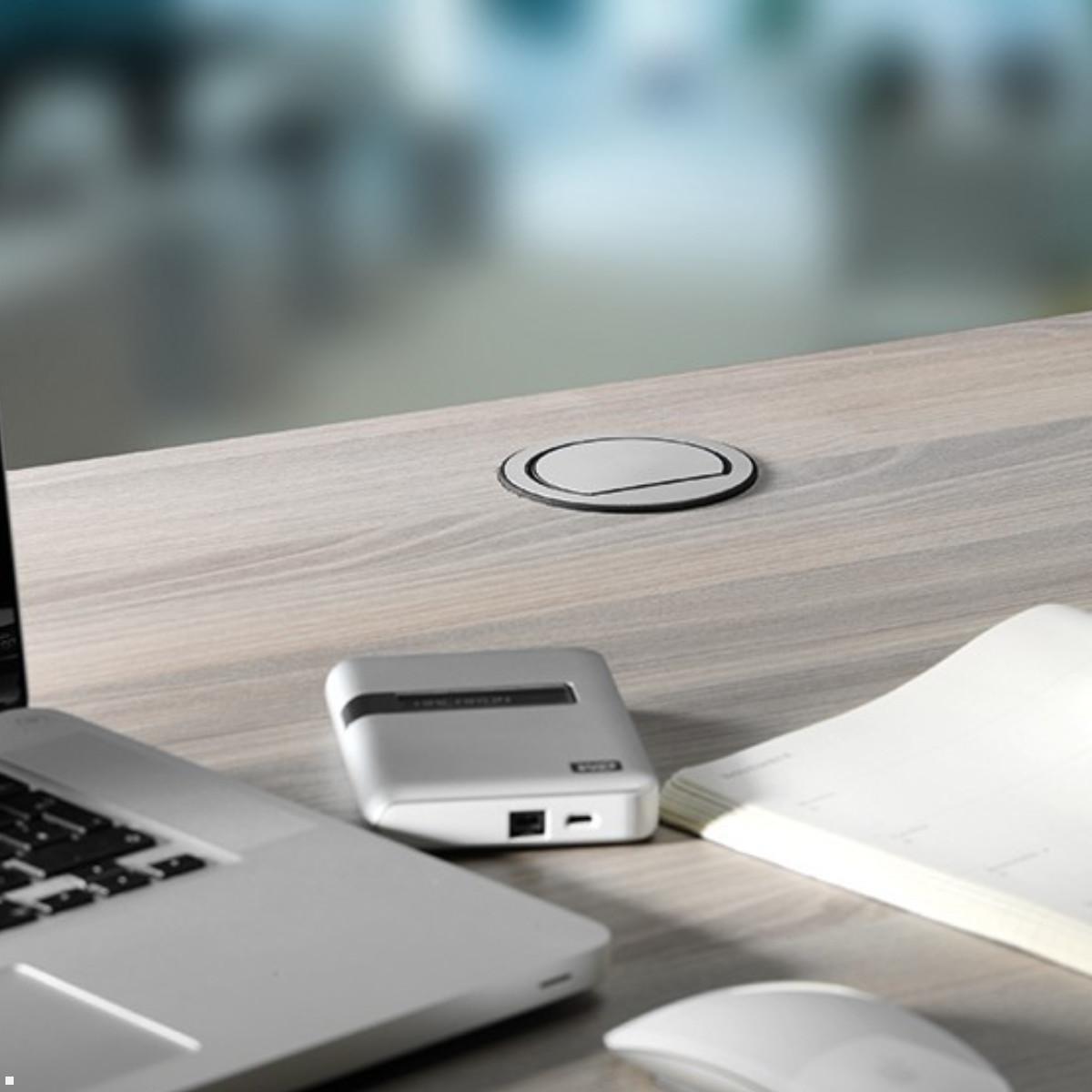

The Bachmann ELEVATOR power socket 928.004 fits perfectly in any working environment. At 79mm in diameter, Bachmann ELEVATOR is ideal for integrating power and data connections in tiny spaces. Simply press down with your thumb to raise and lower ELEVATOR.
The Installation is incredibly simple. Bachmann ELEVATOR power strip 928.004 is placed in a cut-out 79 mm in diameter and secured to the desk or table top from below using a lock ring. The Bachmann Elevator can also be installed horizontally without any problems.
Key Features Bachmann ELEVATOR 1x power socket outlet 2x CAT6 (928.004):
- 1x socket outlet with earthing contact, child-proof, black, set at 35°
- 2x CAT6 RJ45 with 3.0 m data cable and RJ45 plug
- Anodised aluminium profile E0EV01
- Office variant
- Power input: 0.5 m H05VV-F 3G1.5 mm² with GST18 plug
- Cut-outs: 79 mm in diameter
- Lift height: 100mm
The advantages of Bachmann ELEVATOR 928.004 at a glance:
- Press down with your thumb to raise
- 2 configurations
- Suitable for Standard 79mm hole
- Quick and easy to install
- Suitable for retrofitting
- Aluminium nickel-plated, brushed
- Classic design
- For desk or table top thicknesses of 16 - 60 mm
| Product sheet: |  [pdf, 132 kb] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 928.004 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Chrome matt |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
