Bachmann DUE socket, USB-A double charger, cover, black (929.040DB)

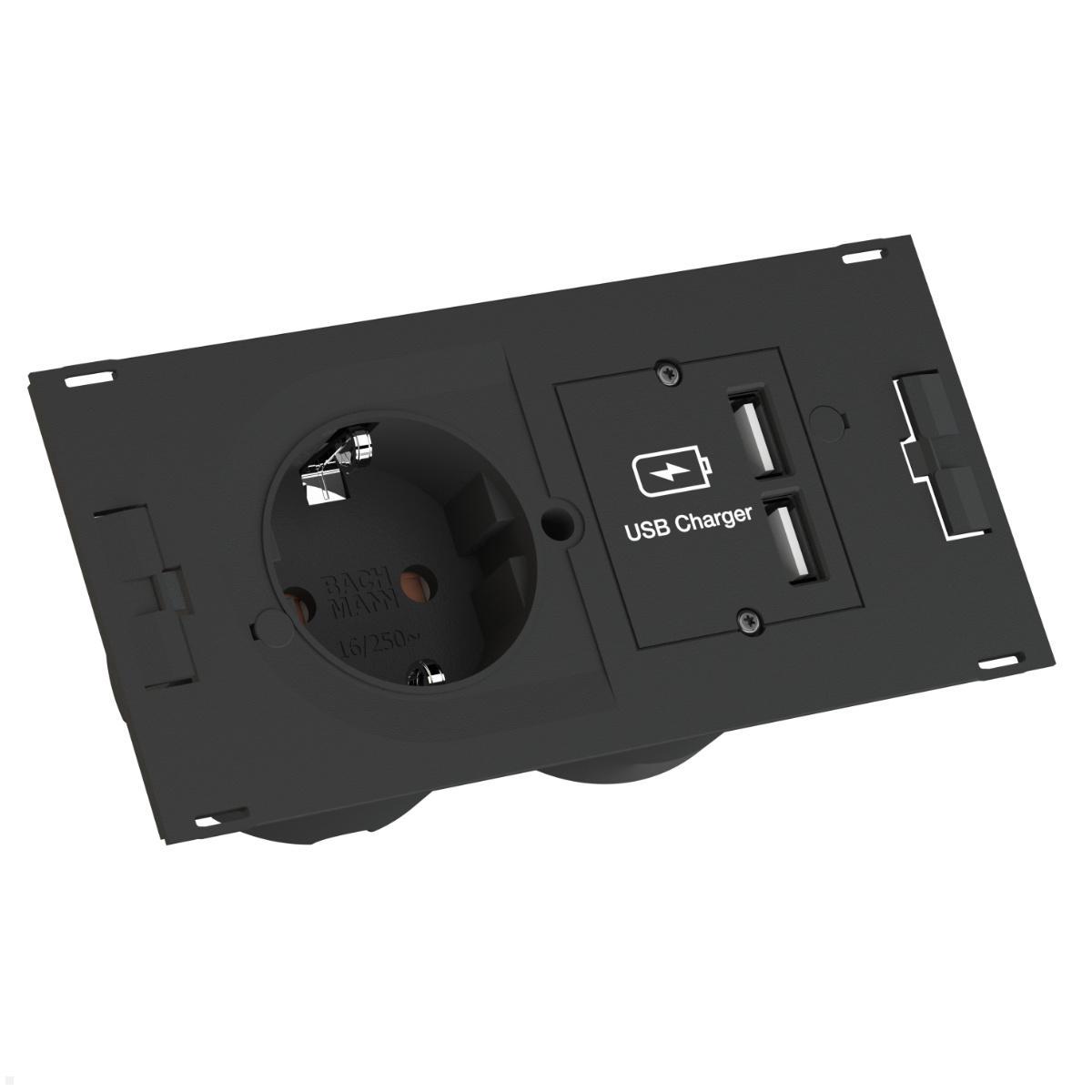

Built-in socket with USB-A and cover
The Bachmann DUE (929.040DB) power strip is recessed into a tabletop or wall to save space. Offices, kitchens and other places of use are provided with a stylish power connection by the built-in socket with USB-A and cover. With an installation depth of just 45 mm, it can be integrated into kitchen worktops, desks as a table connection panel and above drawers, for example. Bachmann DUE also cuts a perfect figure when installed in walls. The power strip is equipped with an earthed socket outlet and a USB-A double charger, which can be used to charge smartphones, tablets and other devices. Thanks to the two-part cover in elegant black, the built-in socket convinces in terms of design and can be opened flexibly. Since the cover is easily replaceable, it is also possible to make color adjustments after installation.
Key features Bachmann DUE 1x socket, 1x USB-A charger with black cover (929.040DB)
- 1x protective contact socket outlet
- 1x USB-A dual charger 2,4A 5V DC
- 1x cover (two-part)
- Sockets with child protection, rotated 90 degrees
- Space-saving even when open
- Cover with integrated water drain
- Dimensions of power strip (WxHxD): 139.2 x 47.9 x 67 mm
- Dimensions cover (WxHxD): 141.2 x 4.65 x 71.1 mm
- Installation depth without cable: 45 mm
- Table mounting plate thickness: 10 - 40 mm
- Power input: 0.2 m cable with GST18i3 plug incl. T-distributor
- Protection class: IP20
- Color socket: black, similar to RAL 9005
- Color cover: black, similar to RAL 9005
- Material: plastic
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | 1x DUE power strip 929.040 | 1x mounting template | 1x T-distribution block GST18i3 | 1x device supply cable | 1x DUE cover 929.101 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Black |
| USB-Charger: | USB A/A |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
