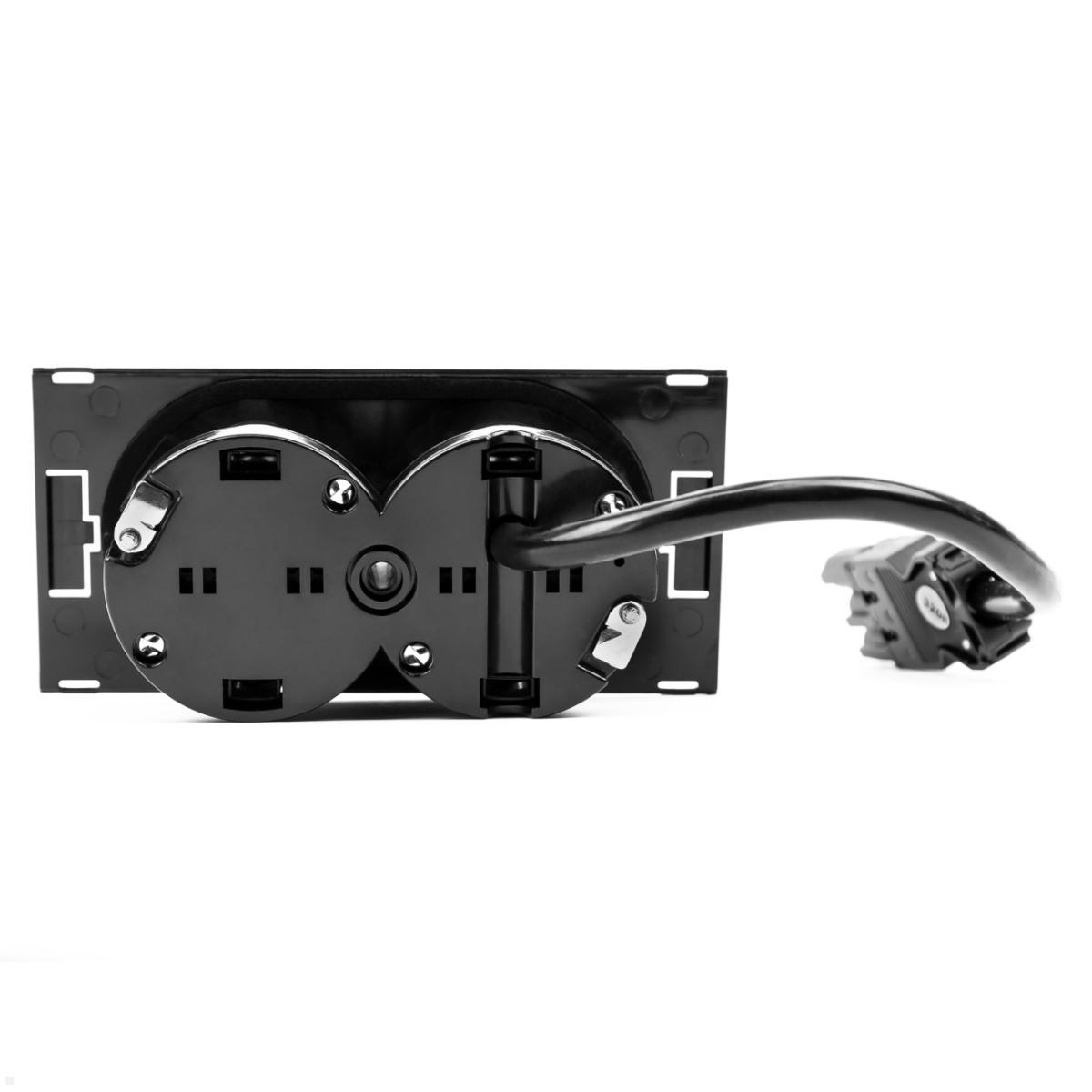

Bachmann DUE 2-fold socket with GST18 supply line, cover white (929.000DW)
2-way built-in socket with cover
The Bachmann DUE (929.010DW) power strip provides an elegant power connection for offices, kitchens and many other places of use. With its low installation depth of only 45 mm, the 2-way built-in socket with cover enables space-saving integration in kitchen countertops, in desks as a table connection panel as well as installation above drawers. As a wall-mounted unit, Bachmann DUE also fits ideally into different environments. Thanks to the supplied two-part cover in white, the multiple socket outlet can be slid on flexibly and also scores with its stylish design during use. Even after installation, there is the option of using replaceable covers to individually adapt the appearance to the ambience in terms of color or to deliberately set new highlights.
Key features Bachmann DUE 2-fold double socket with GST18 plug including white cover (929.000DW)
- 2x protective contact socket outlet including cover
- Sockets with child protection, rotated 90 degrees
- Space-saving even when open
- Cover with integrated water drain
- Dimensions of power strip (WxHxD): 139.2 x 50.9 x 67 mm
- Dimensions cover (WxHxD): 141.2 x 4.65 x 71.1 mm
- Installation depth without cable: 45 mm
- Table mounting plate thickness: 10 - 40 mm
- Power input: 0.2 m cable with GST18i3 plug
- Color socket: black, similar to RAL 9005
- Color cover: white, similar to RAL 9010
- Material: plastic
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | 1x DUE power strip 929.010 | 1x drilling template | 1x mounting instructions | 1x DUE cover 929.102 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | White |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
