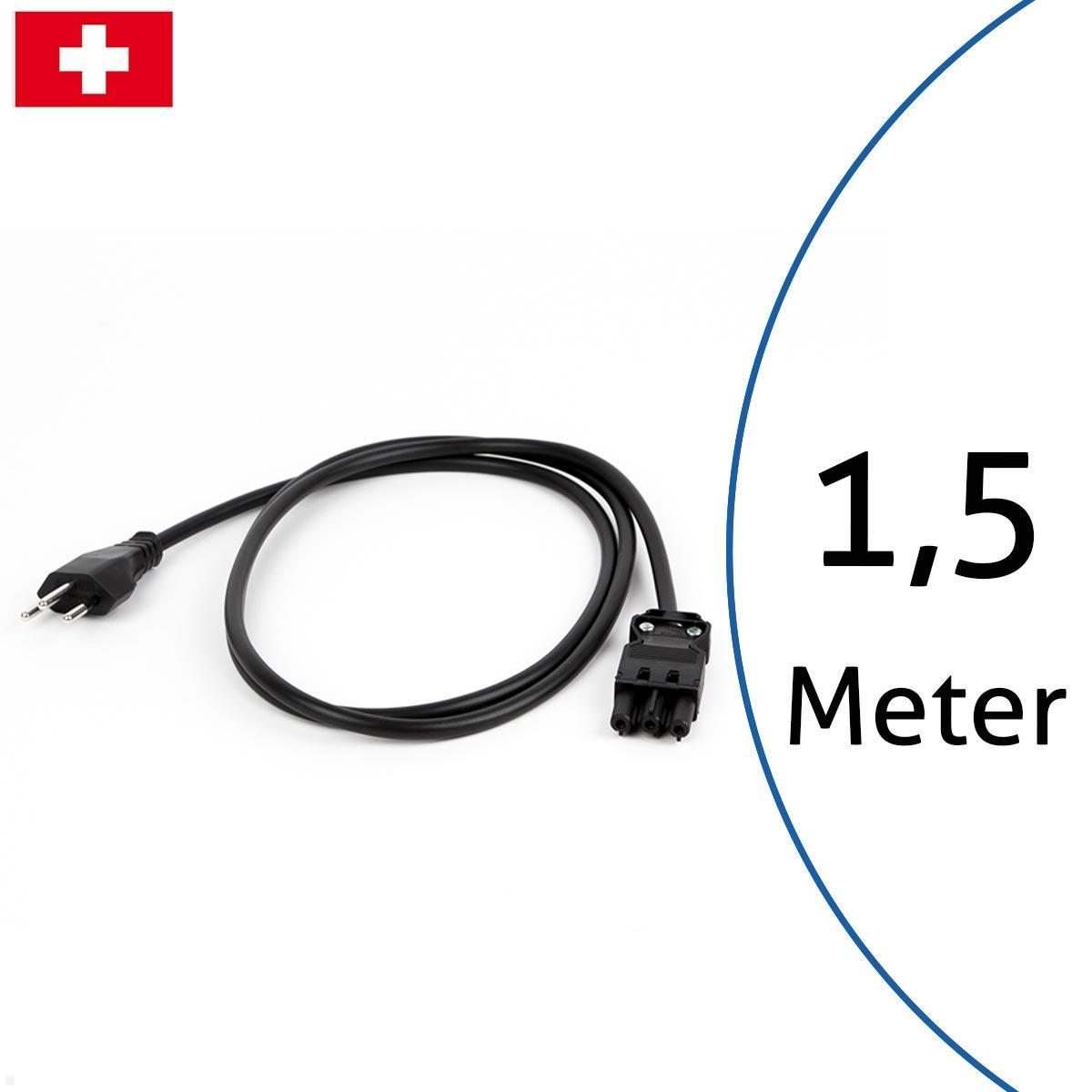

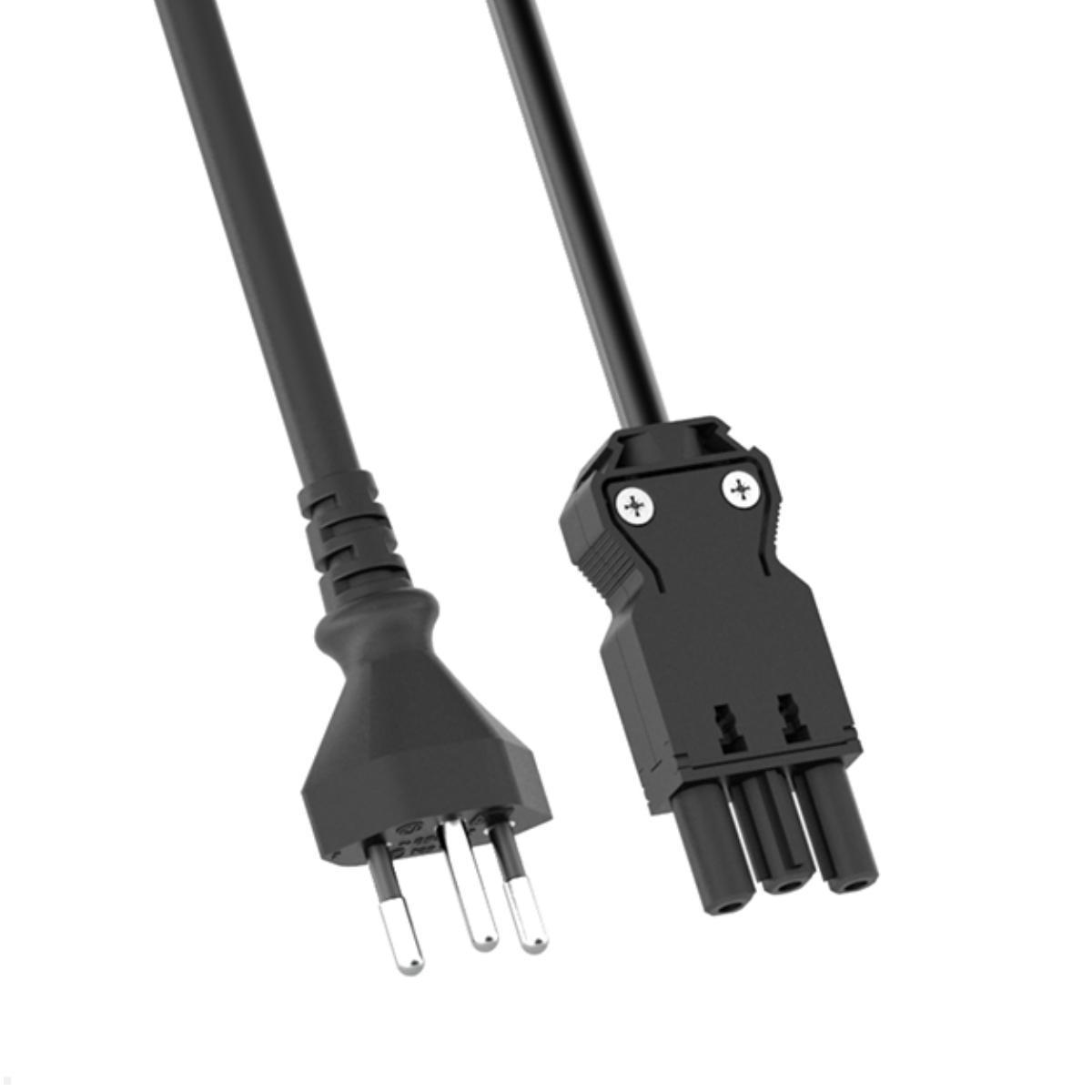

Bachmann device supply cable CH Switzerland GST18 1.5m (375.016)
Device supply cable CH GST18 1.5m
Cables such as the Bachmann device supply cable CH Switzerland GST18 1.5m (375.016) are available for the power connection of many Bachmann products. The advantages of these cables with connectors used worldwide are flexibility in length, interchangeability for other length requirements, availability for different countries. Even power forwarding GST18 cable to other Bachmann socket units is not a problem and is usually done without tools.
Key features Bachmann device supply GST18 cable 1.5m 375.016 Switzerland
- Colour: black
- Swiss device cable
- Supply cable: 1.5 meters
- Cable: H05VV-F 3G 1.00 mm²

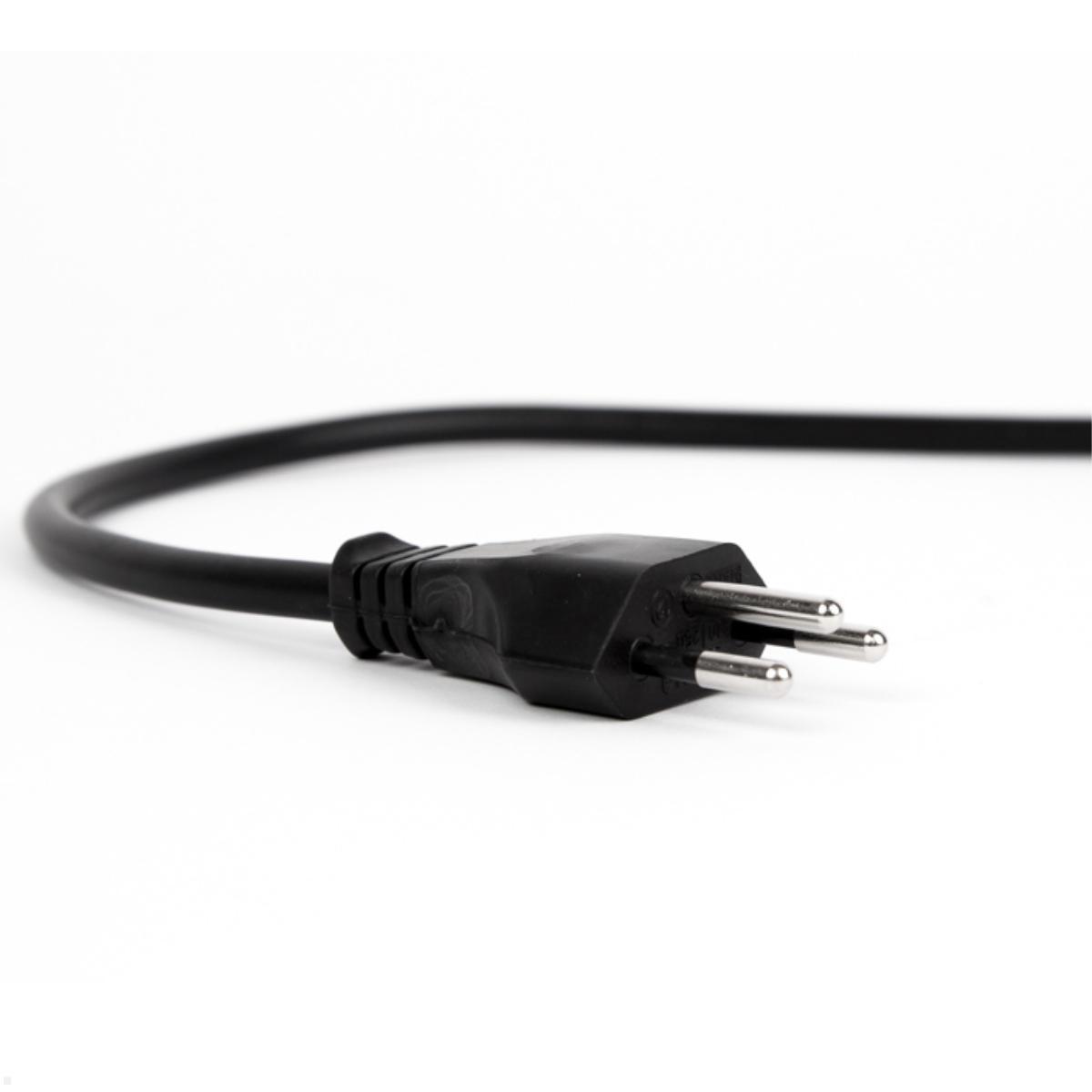

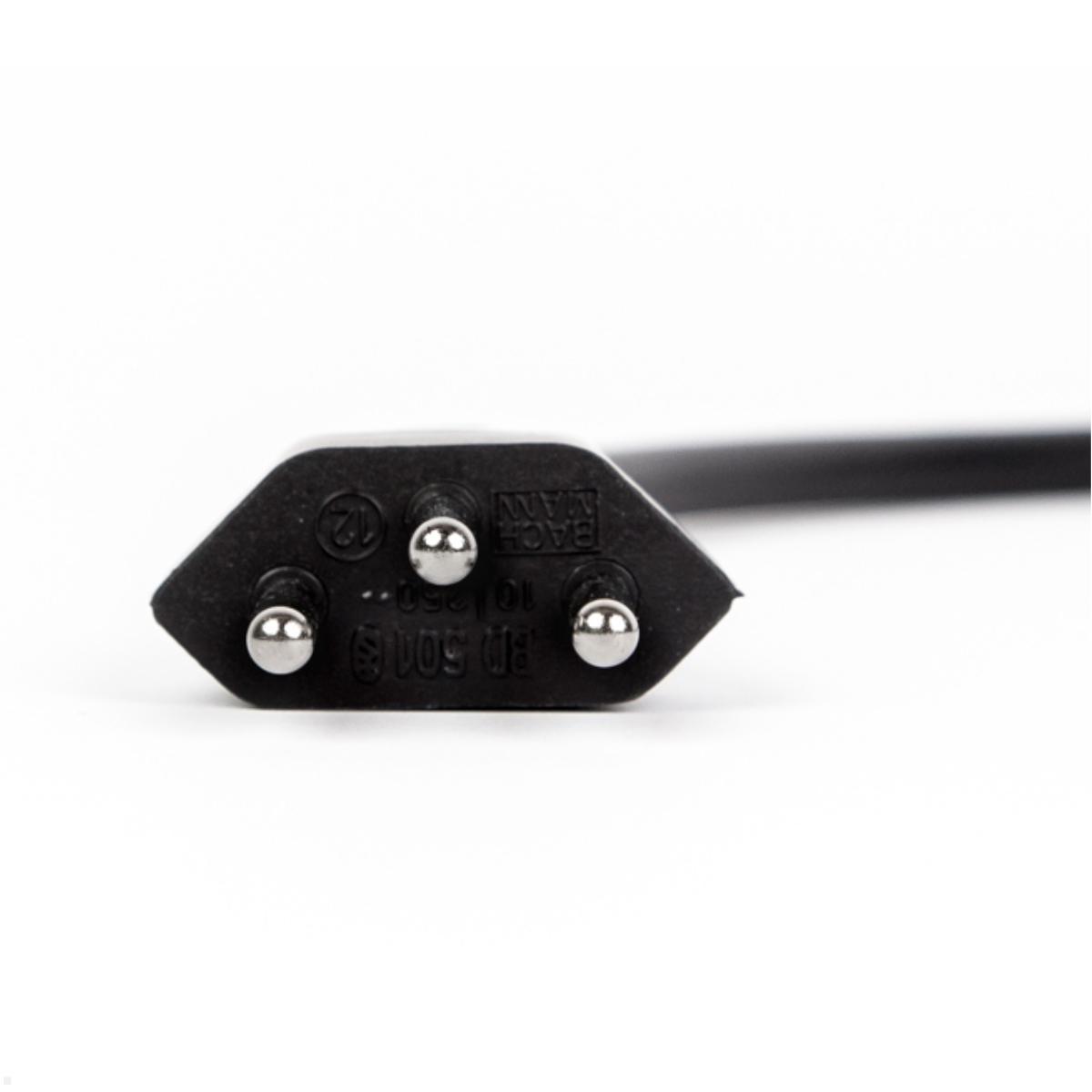

- Side 1: CH/Switzerland plug

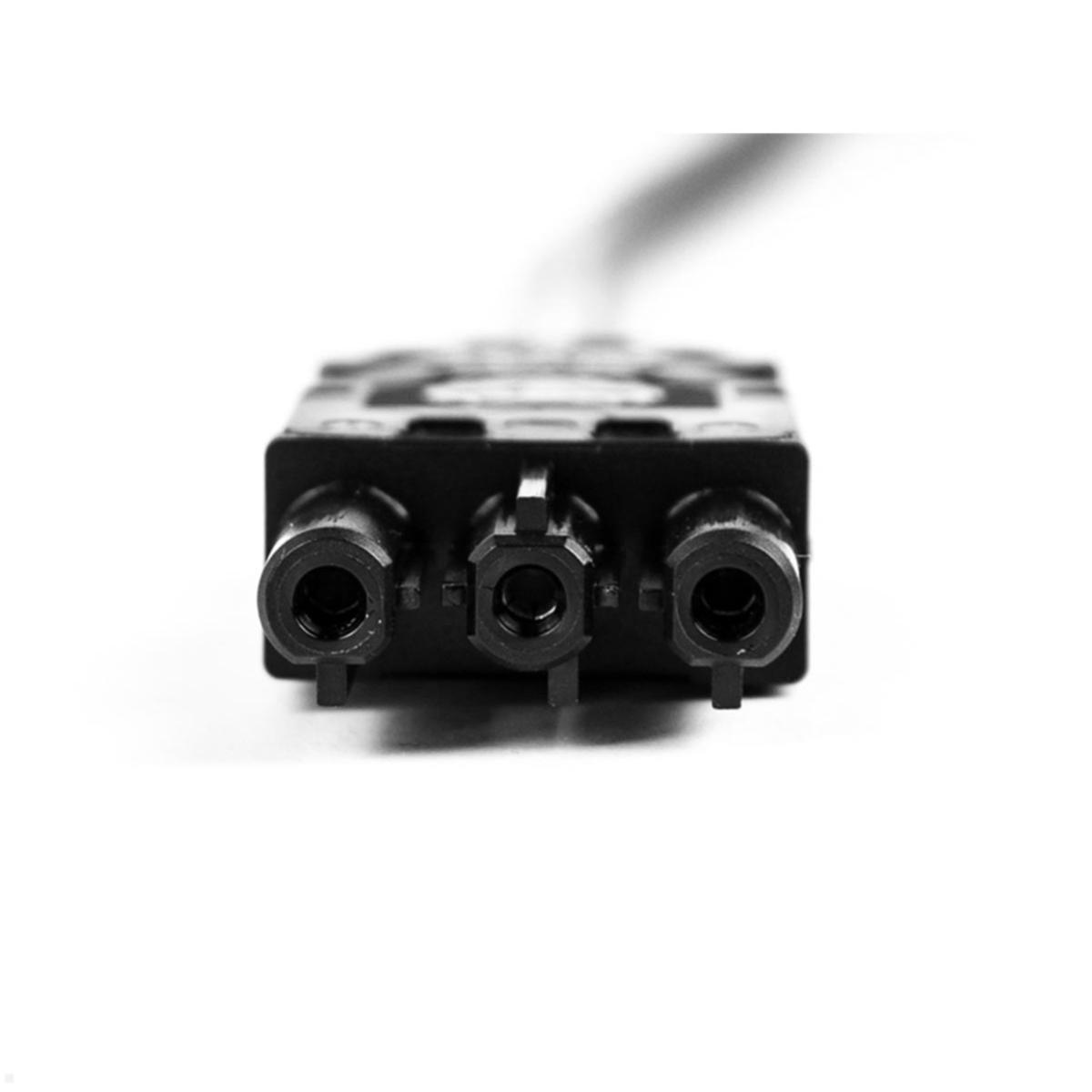

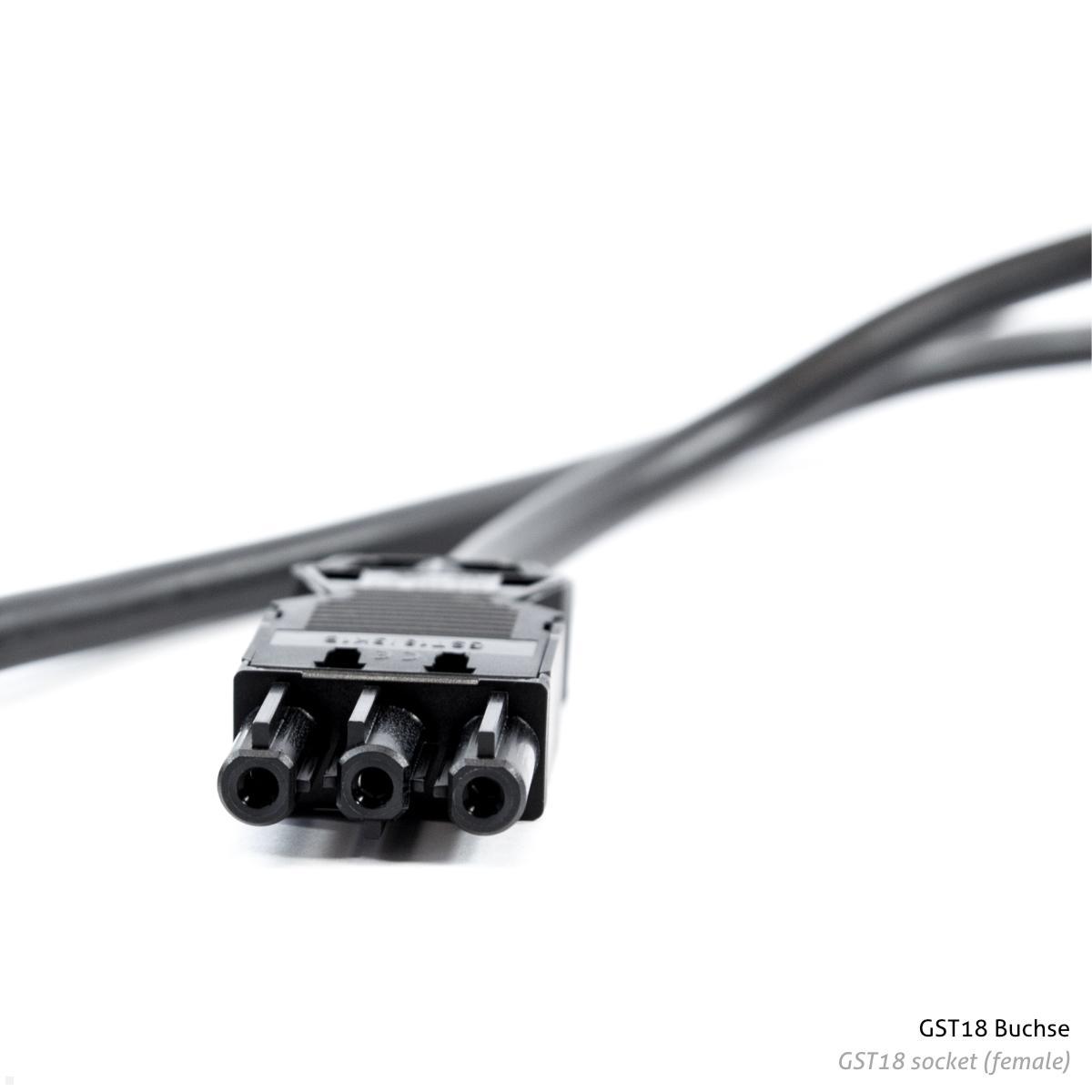

- Side 2: Wieland GST18i3 socket (female)
| Product sheet: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| Land: | Switzerland |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
