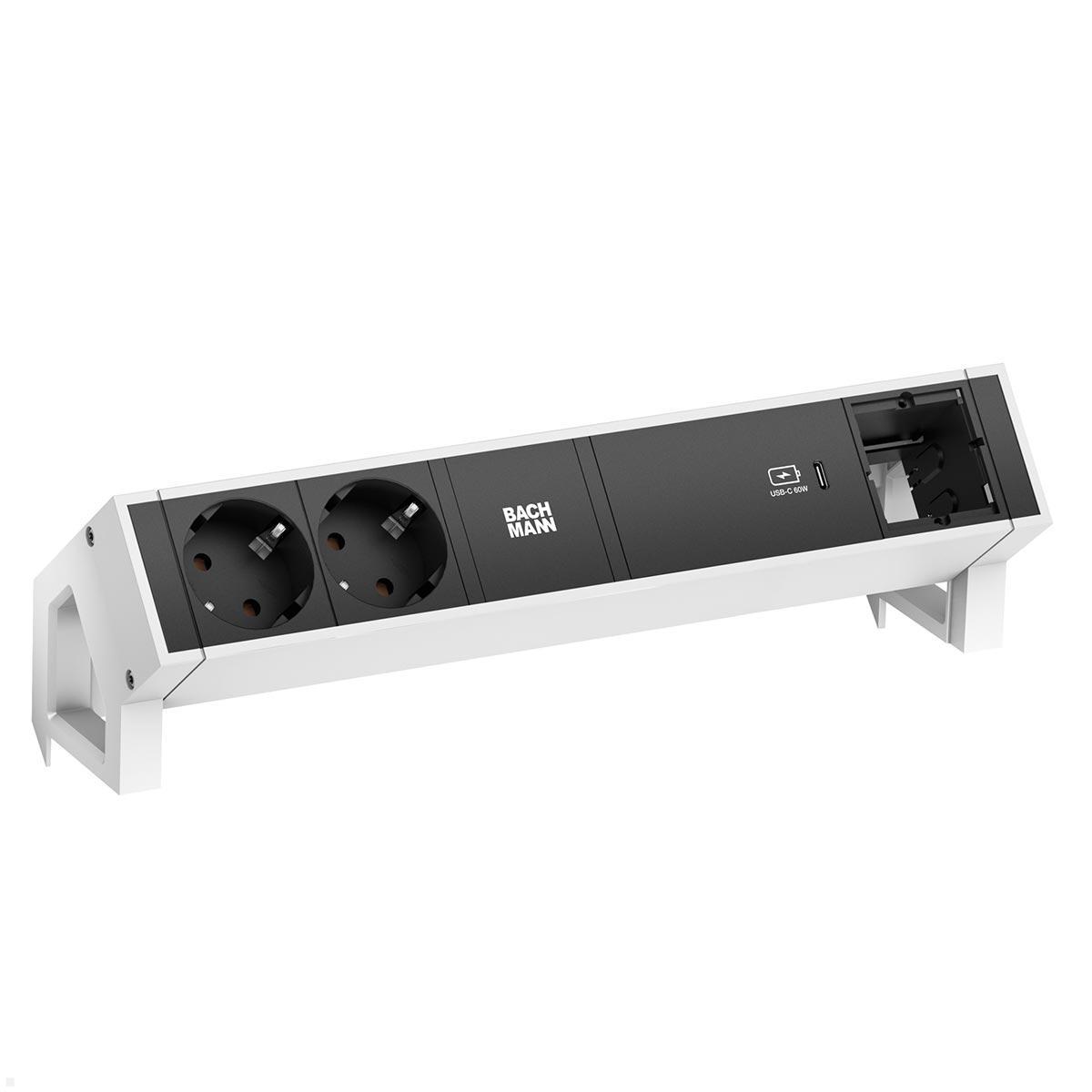

Bachmann DESK 2 2x socket 1x USB-C charger 60W 1x CM (902.937), white
The Bachmann 902.937 DESK 2 multiple socket outlet is equipped with two protective contact sockets, a freely configurable empty field / custom module (CM) and a USB charger (type C) 60W. The multiple socket outlet can be quickly and easily mounted on the edge of a table with a set of mounting brackets.
Socket outlet with USB C
The Bachmann DESK 2 902.937 Socket outlet with USB C connection as a charging station is quickly and easily mounted on the edge of the table with the bracket set without damage. The configurable Socket strip with two CEE 7/3 sockets with earthing contact, an empty field or custom module (CM) and a USB-C 60W charger enables easy access to power outlets for different devices (smartphones, tablets, laptops).
The clear and simple design has already earned the Bachmann DESK 2 the red dot design award and the IF Product Design Award. High-quality and durable materials are used in this power strip. If several DESK 2 desk connection panels are to be installed next to each other and looped through via a GST18 connection, a distribution block (e.g. 375.102, 375.105, etc.) facilitates the connections and distribution of the cables. Please note a max. load of 16A! Available on request in over 200 different RAL colours.
Key features Bachmann DESK 2 socket strip (937. 302)
- Size (WxHxD): 293.7 x 85 x 100 mm
- Colour: White; ähnlich RAL9010
- 2x black socket outlets with earthing contact, 35° rotated
- 1x USB-C Charger 60W (85mm)
- 1x empty field / custom module (CM) for configuration
- Cable: 0.2m H05VV-F3G1.5mm² black with GST18i3 plug
- Includes bracket set
- Construction: table top thickness 10 - 40 mm
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 325 x 140 x 150 |
| Scope of delivery: | 1x socket strip | 1x bracket set |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | White |
| USB-Charger: | USB C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
