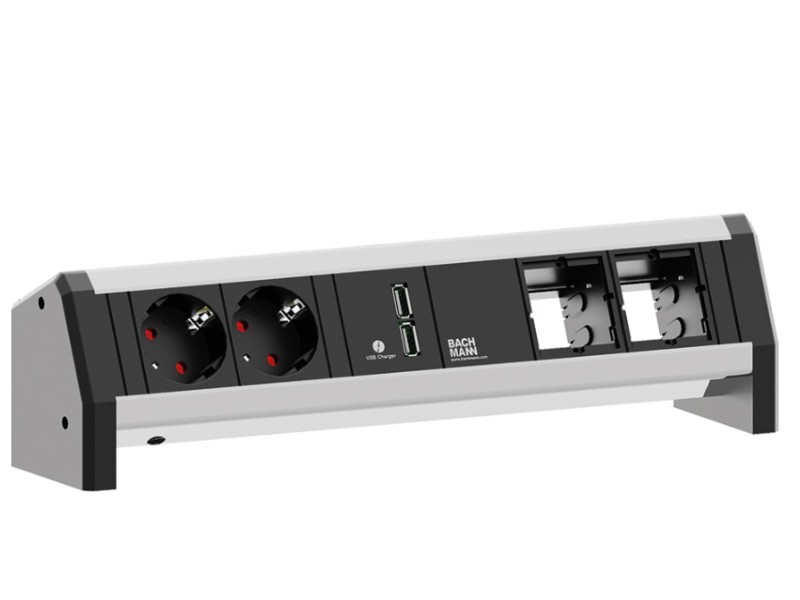

Bachmann DESK 1 USB charger 2x socket 2x CM (902.0183)
The Bachmann DESK 1 USB charger 2x socket 2x custom module (902.0183) socket strip can be quickly and easily mounted on the edge of the table using a bracket set. Bachmann Desk1, daß perfect table connection field!
Bachmann DESK 1 1x USB 2x socket 2x custom module 902.0183
The table connection panel Bachmann DESK1 can be quickly and easily mounted on the edge of the table with a mounting bracket set. A size 4 Allen key is required for assembly in order to tighten the internal screw on the mounting bracket. The table top is not damaged by the attachment.
Key features Bachmann DESK1 table connection field 902.0183:
- Length 323.8 mm
- Anodised aluminum profile
- USB charger (5.2V/2.15A) 2x USB-A socket for charging e.g. smartphones, tablets
- 2x socket outlets with earthing contact black, 35° turned
- 2x custom module
- Power input: GST18
- Power output: GST18
- No mounting brackets and screws included< li>Dimensions (L x W x H): approx. 323.8 x 73 x 88 mm
- Power lines and custom modules are available separately
Plug connection as standard
The standard power connection is designed with a Wieland connector built into the profile on the back and offers the option of safe power supply and at the same time flexibility in terms of the length of the Line. The lines can be changed if necessary, e.g. B. to use longer or shorter power supply lines. As standard, we use the GST18 connector from Wieland, which is used all over the world. The plug-in connection has a prescribed latch and can be unlocked again if necessary. The contact connections of the plug-in connection are safe to touch.
A power output socket offers the option of passing power on to the next module.
Bachmann DESK 1 plus Bachmann STEP in combination
The ideal solution for individual office workstations is the combination of Bachmann DESK 1 and Bachmann STEP power strip. Bachmann DESK 1 offers easy access to power and data connections for various devices (laptop, mobile phone, USB, etc.), while the Bachmann STEP socket unit below the table top provides permanently installed devices such as PCs, monitors , printers, etc. powered. The Bachmann STEP socket unit is screwed under the table top or positioned in an under-table channel.
With the integrated Wieland plug-in system, several socket units can be connected one behind the other in accordance with the standard.
| Product sheet: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Tische mit einer Stärke von 10 mm bis 40 mm |
| Accessories: | Bachmann Desk 1 Haltewinkel Bachmann Custom Modul USB Buchse Bachmann Custom Modul CAT Buchse Bachmann Custom Modul VGA Buchse |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver/Black |
| USB-Charger: | USB A/A |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
