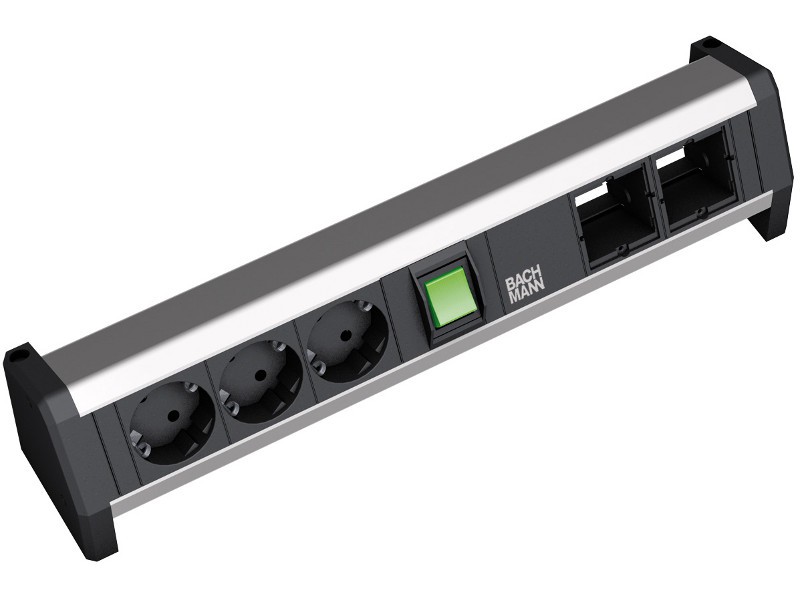

Bachmann DESK 1 2x Custom module 3x Power socket 1x switch (902.018)
The Bachmann 902.018 DESK1 socket unit with three sockets, an illuminated switch and two custom modules offers a flexible power supply for the workplace. Easily set up or mounted with the optional bracket set, it ensures neat and versatile use.
Socket unit with switch

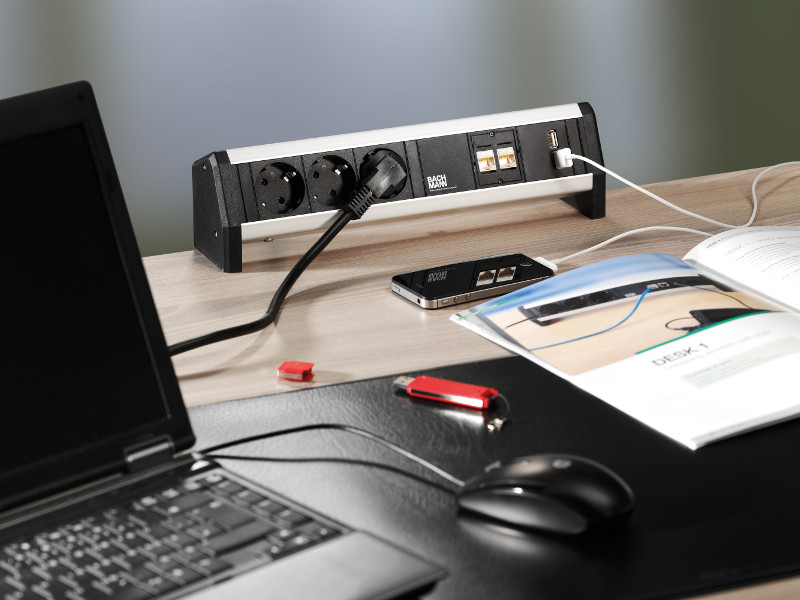

The Bachmann 902.018 DESK 1 Socket unit enables easy power supply in the workplace and offers the ability to connect a variety of devices - from PCs to desk lamps. This power strip is equipped with three sockets, a 2-pole illuminated switch and two fillable custom modules. The DESK1 power strip can be set up freely or mounted on the edge of the table using the optionally available bracket set (bracket set not included). A significant advantage of this mounting method with the bracket is that the table top is not damaged during the assembly process. This means that the surface of the table remains intact and undamaged, while the DESK is securely and stably attached. This multiple socket creates optimal conditions for data, media and energy management, everywhere where these connections are used flexibly. For example, at home, in meeting rooms, in the home office or during desk sharing. The modular structure of DESK enables adaptable integration into different environments and work areas.
Key featuresBachmann DESK 1 multiple power strip 902.018
- 6- compartment Socket unit
- Length 366.1 mm
- Anodized aluminum profile
- 2x custom module
- 3x black protective contact sockets, 35° rotated
- Power input: GST18
- Power output: GST18
- 1x switch, 2-pole illuminated
- Dimensions (L x W x H): approx. 366.1 x 73 x 88 mm
- Mounting brackets, power cables and custom modules are available separately
Plug connection as standard
< p>The standard power connection is designed with a Wieland connector built into the rear of the profile and offers the possibility of safe power supply and at the same time flexibility in terms of the length of the cable. The cables can be exchanged if necessary, for example B. to use longer or shorter power feed lines. As standard, we use the worldwide GST18 connector from Wieland. The plug connection has a proper locking mechanism and can be unlocked again if necessary. The contact connections of the plug-in connection are touch-safe.A power output socket offers the possibility of forwarding power to the next module.
Bachmann DESK 1 plus Bachmann STEP in combination
The ideal overall solution for every single office workplace is the combination of Bachmann DESK 1 and Bachmann STEP socket unit. Bachmann DESK 1 offers easy access to power and data ports for various devices (laptop, cell phone, USB, etc.), while the Bachmann STEP socket unit below the table top accommodates permanently installed devices such as PCs and monitors , printer, etc. powered. The Bachmann STEP socket unit is screwed under the table top or positioned in an under-table channel.
With the integrated Wieland plug-in system, several socket units can be connected one after the other in accordance with standards
| Product sheet: |  [pdf, 1,5 MB] |
|---|---|
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver/Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
