Bachmann custom module 1x XLR 5-pin socket (917.101)

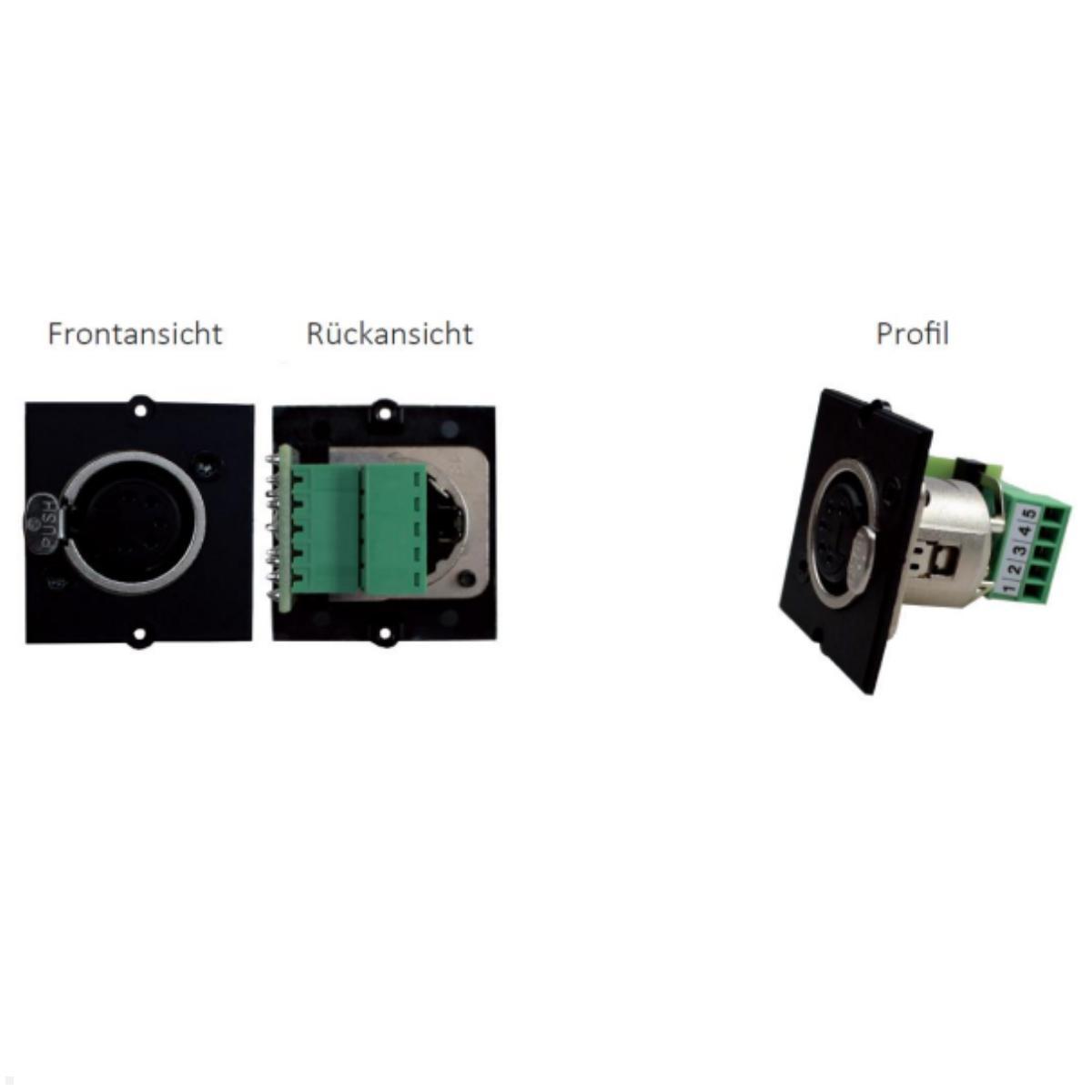

The Bachmann custom module 1x XLR 917.101 is suitable for the individual assembly of the socket units of the Bachmann facility products. It has a specific configuration consisting of a 1x XLR female 5-pin with rear screw connection.
Custom module XLR 5-pin
The Bachmann custom module XLR 917.101 is a high-quality and versatile module for integration into socket units of Bachmann facility products. The custom module 1x XLR 5-pin with screw connection on the back makes it possible to integrate XLR connections into the socket unit. XLR stands for "eXternal Line Connector" and is a standard connection type for professional audio applications. Each of the five pins in the socket has a specific function for the transmission of audio and control signals.
Key features 917.101
- Custom module (CM)

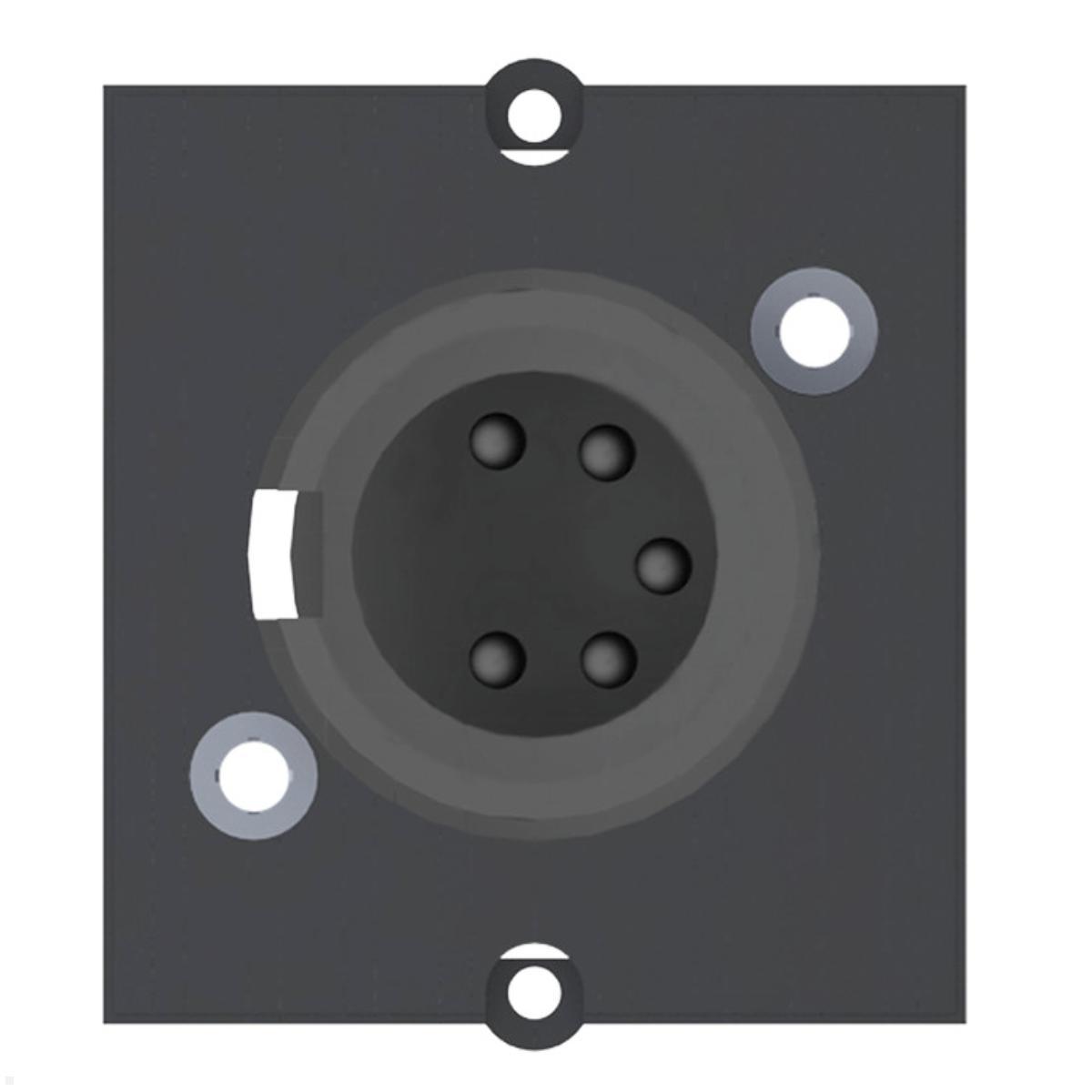

- Front: 5-pin XLR socket

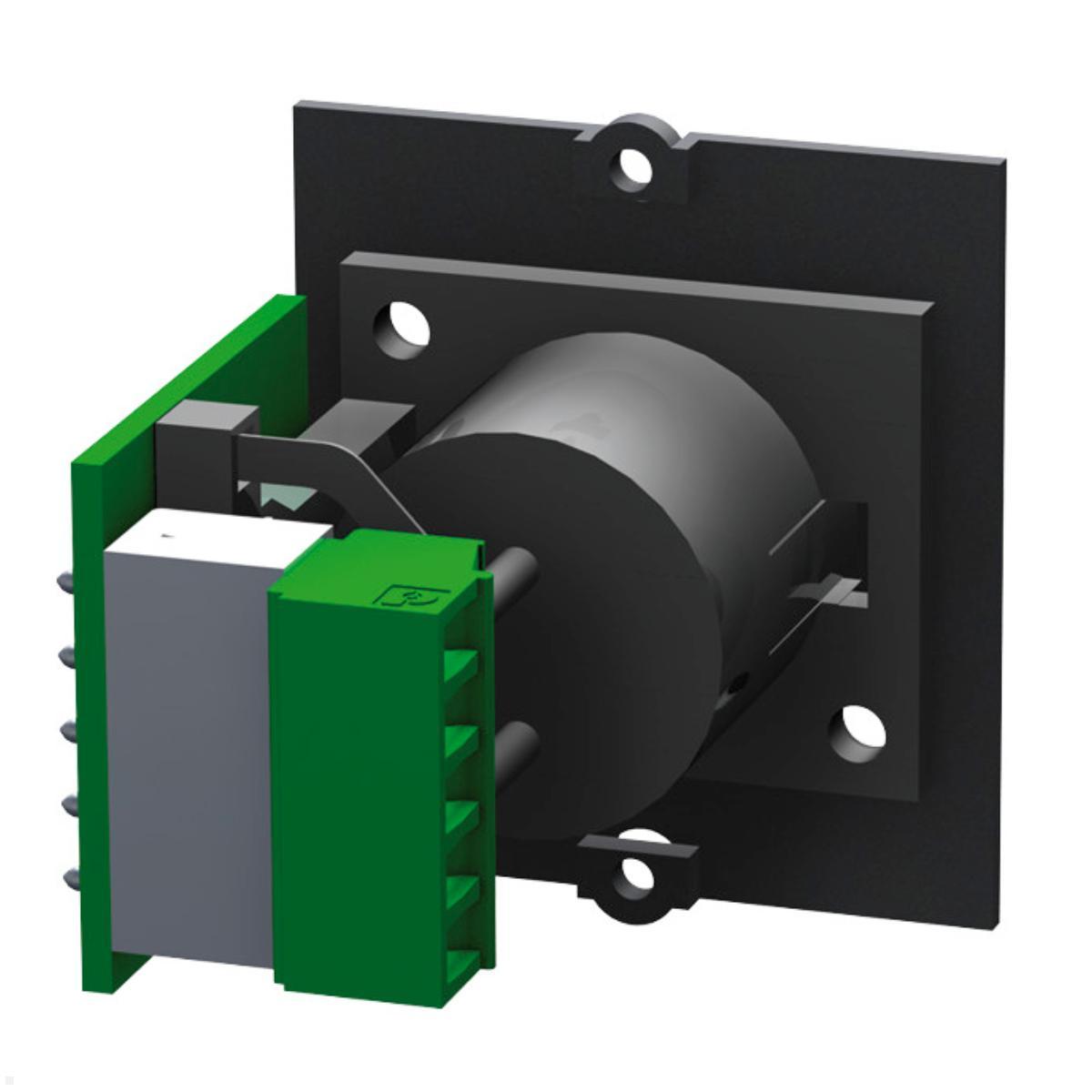

- Rear: 5-pin screw connection
- Can be integrated into socket units from Bachmann Facility products
- Dimensions: device width: 37 mm / height: 40.2 mm / depth: 40 mm
- 2 screws included in delivery
- Facility systems, rack installations and electrical installations
- Material: Plastic
- Colour: Black
| Product sheet: |  [pdf] |
|---|---|

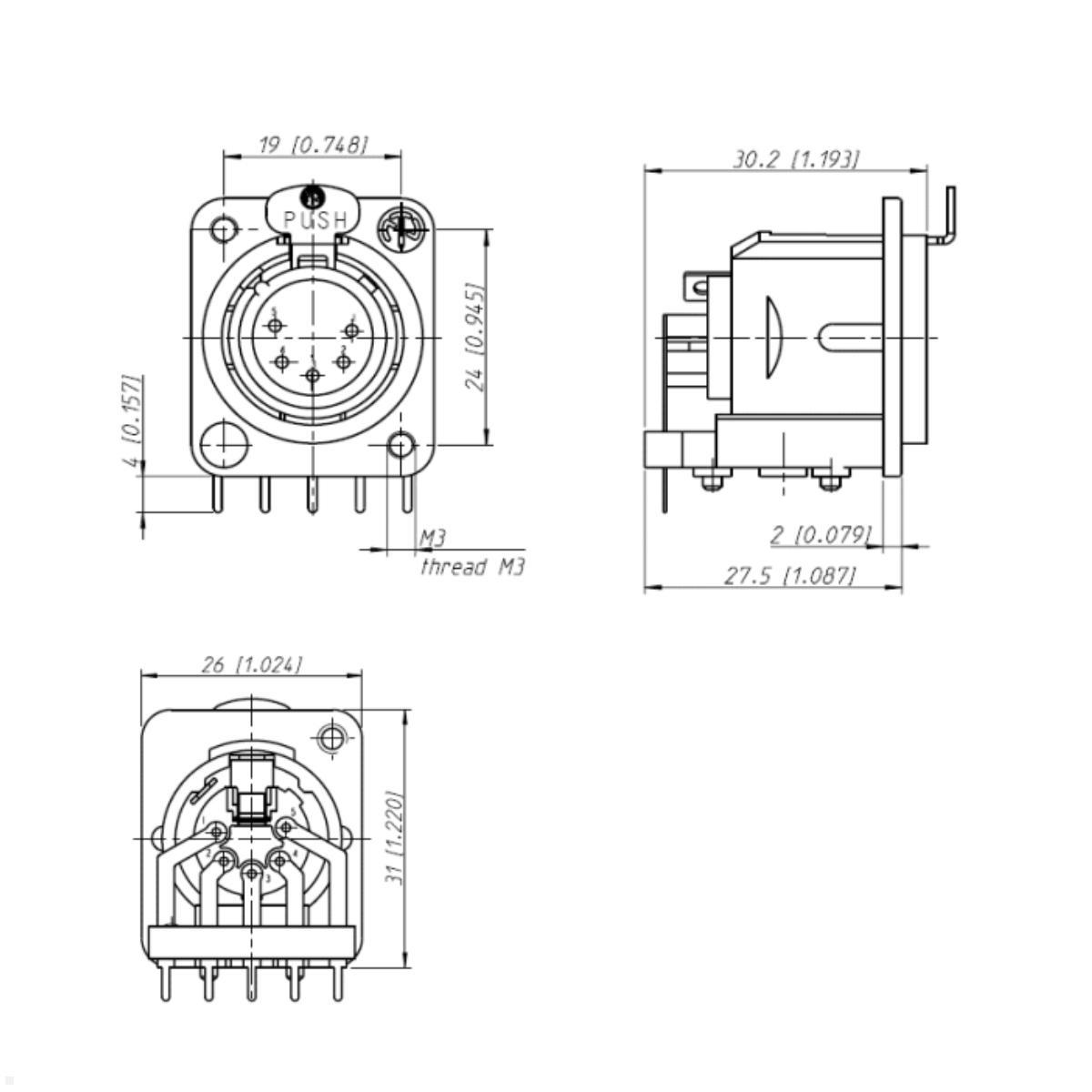

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann socket strips with CM insert |
| Packaging dimensions (LxWxH in mm): | 160 x 150 x 40 |
| Scope of delivery: | 1 x custom module XLR 5-pin and 1 x TRX screws |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
