Bachmann custom module data cable bushing (917.032)
Bachmann custom module data cable bushing (917.032) - Module with drill hole and 2-part cable bushing for data cables up to 11 mm in diameter.

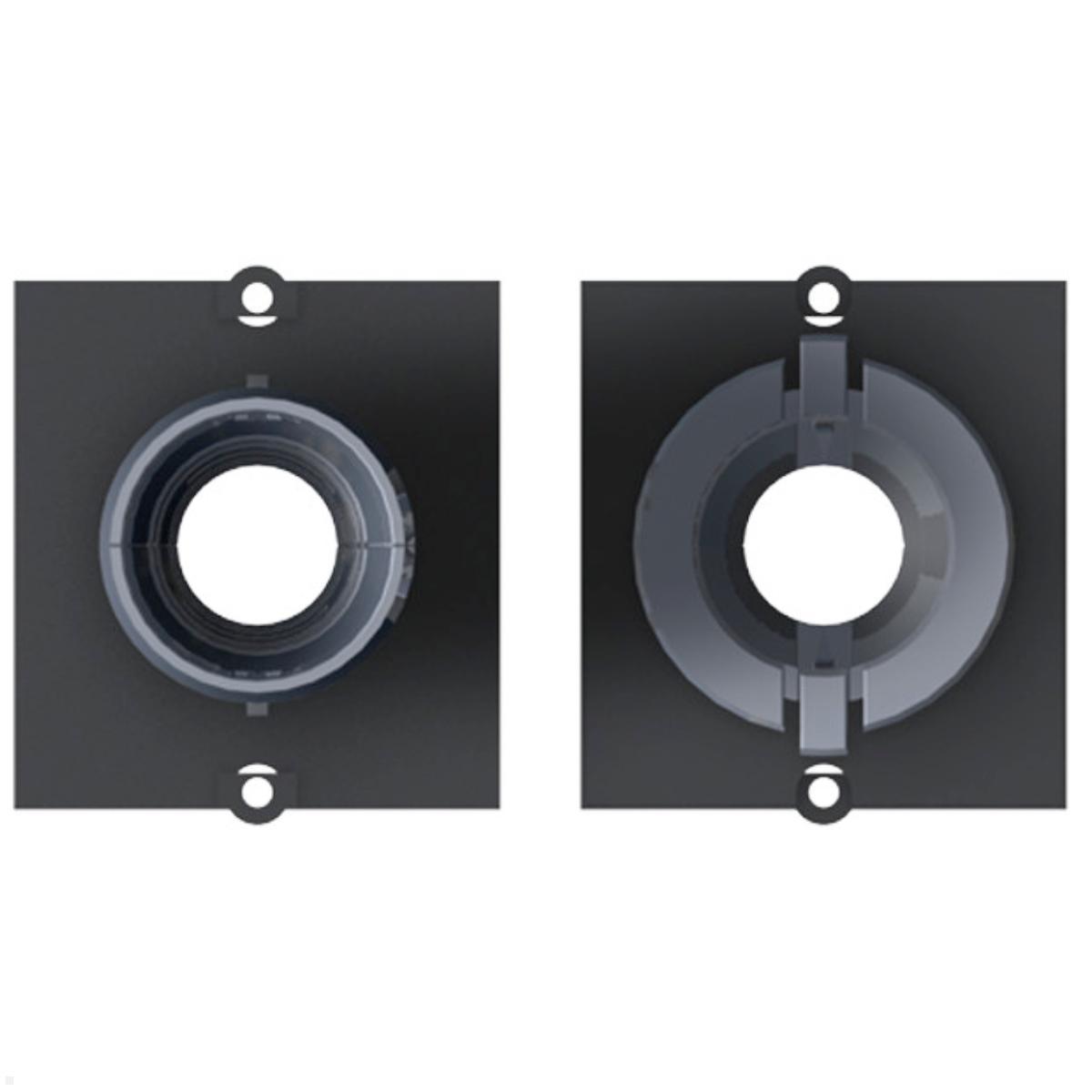

Custom module cable bushing
The Bachmann 917.032 custom module with bore and 2-piece cable bushing is a high-quality product for safe and orderly wiring in various applications. The module has been specially designed to allow cable passage with a diameter of 11mm. Bachmann Custom Modules are the central building blocks for video, audio and network connections. Due to their structure, they enable you to install them easily and flexibly in the areas of facility systems, rack and electrical installations. The versatile custom modules make Bachmann FACILITY SOLUTIONS even more flexible. Bachmann CUSTOM MODULES can be retrofitted or replaced quickly and with minimal effort. They offer a high level of of flexibility and future security in the dynamic world of data and media connections.
Key features Bachmann Custom Module 917.032:

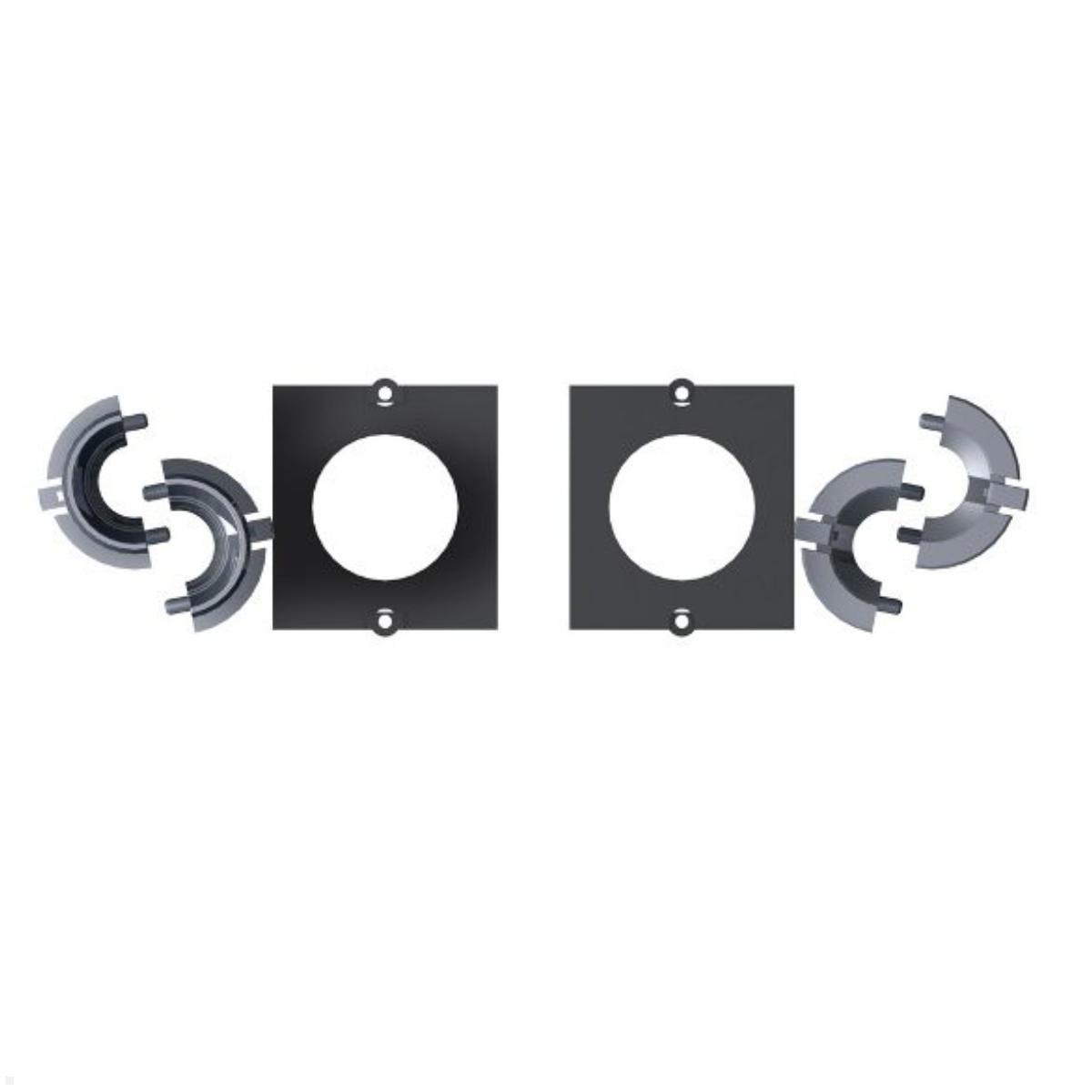

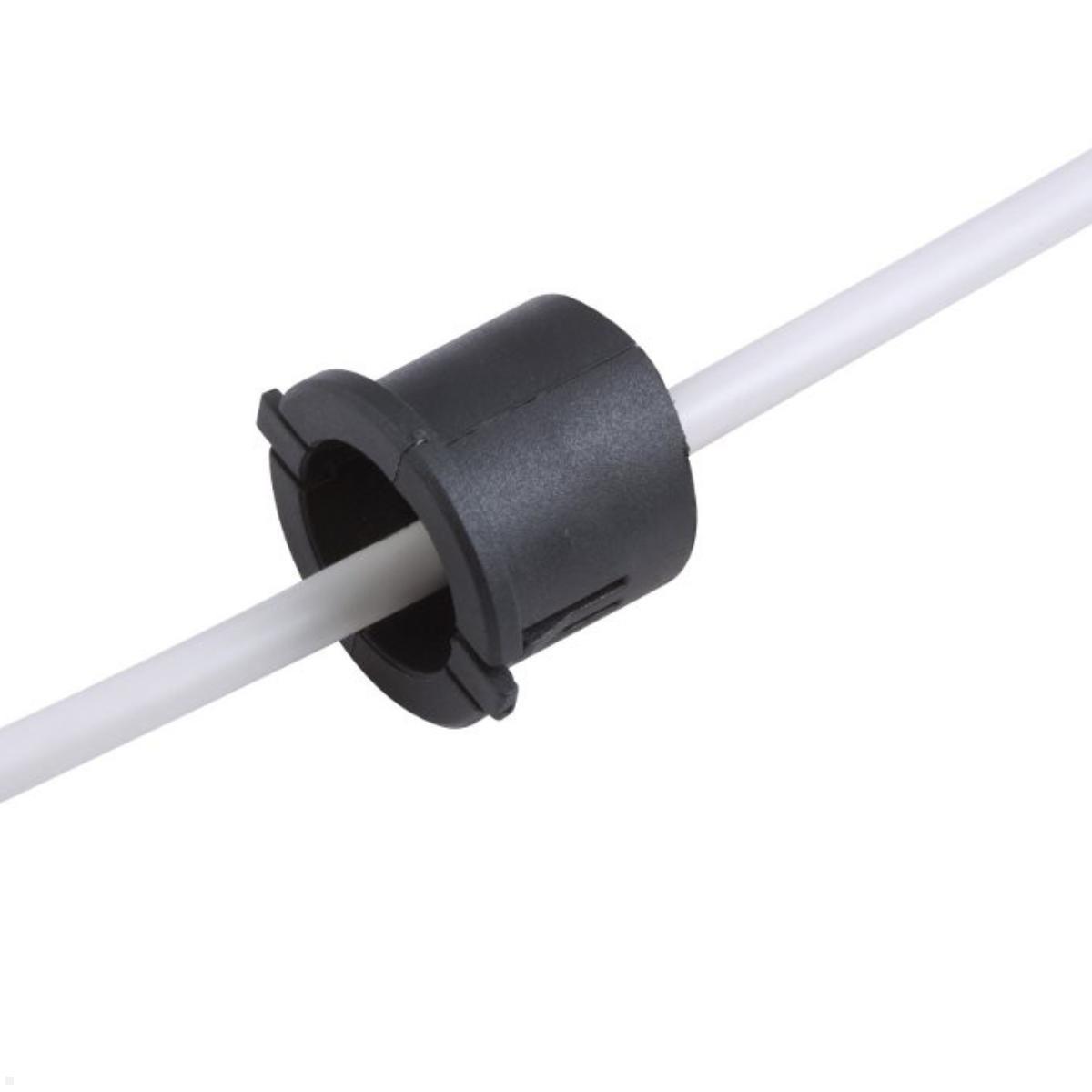

- Module with bore and 2-part cable bushing for data lines up to Ø 11 mm

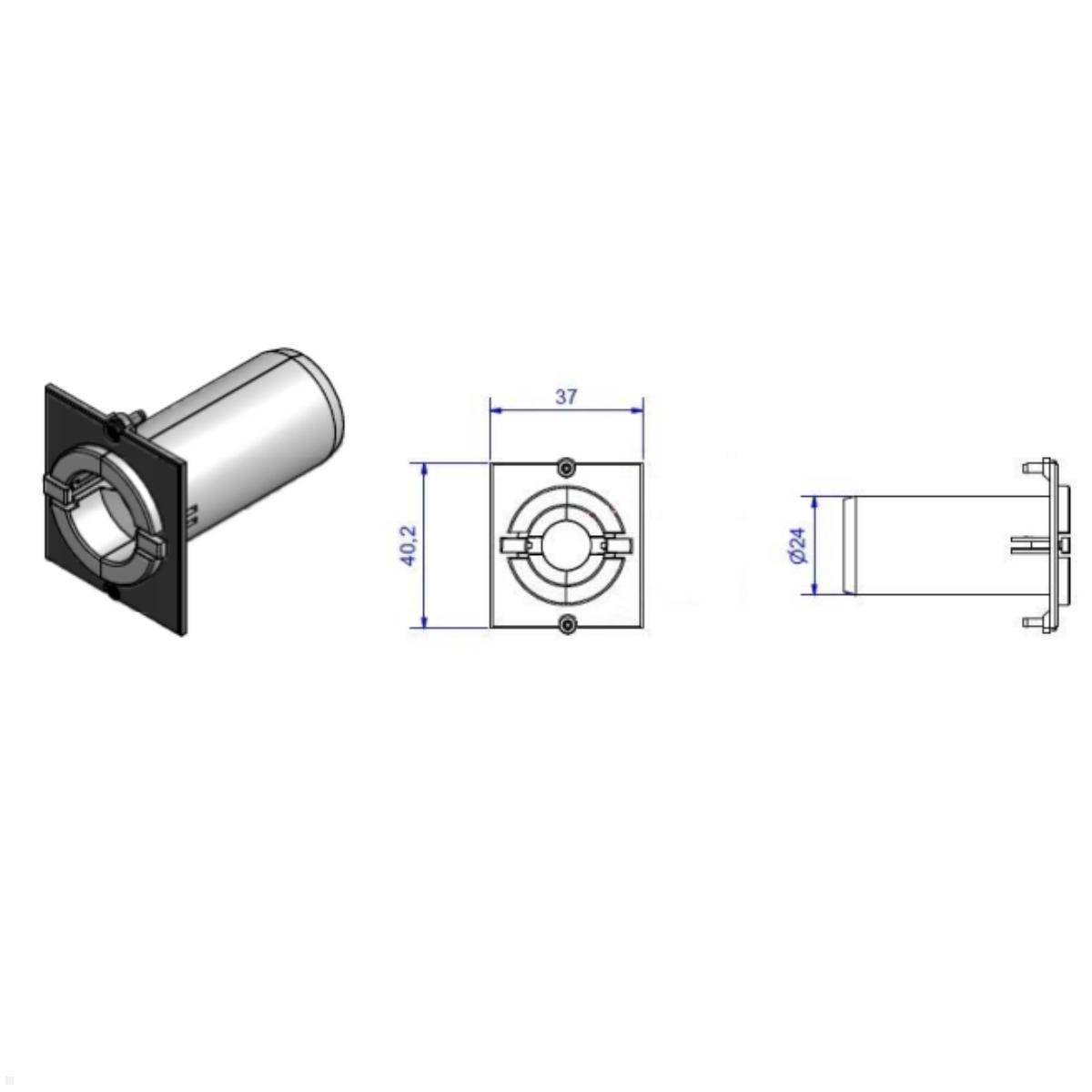

- Device width: 37 mm, height: 40.20 mm, depth: 50 mm
- ETIM 8.0: insert/cover for communication technology (EC000018)< /li>
- Material: Polyamide PA6 GF 30
- Colour: Black
- Incl. 2 T6 Torx screws
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
