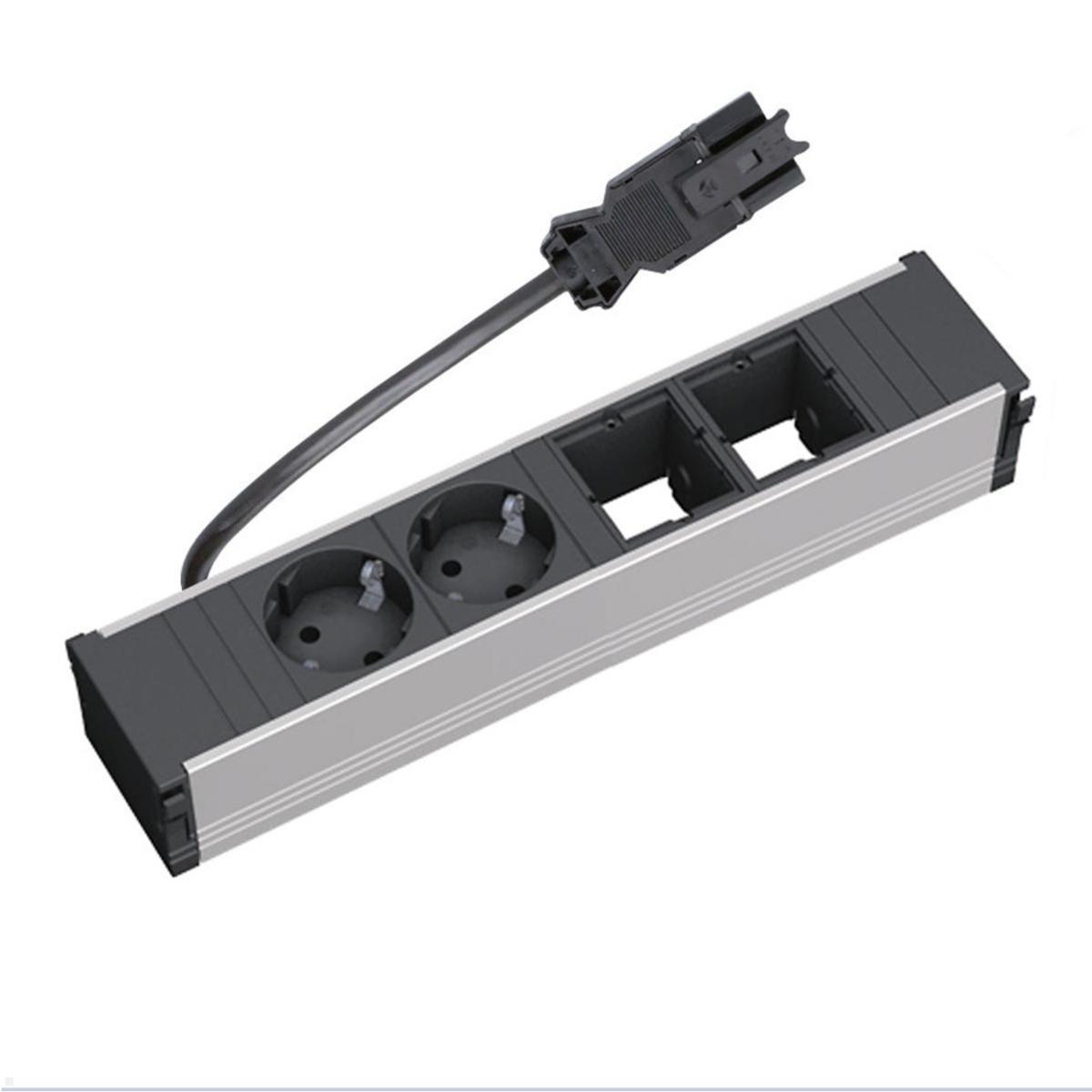

Bachmann CONI module support 4-fold, 2x socket outlets, 2x CM (912.027)
The Bachmann 912.027 CONI 4-way power strip with two power socket outlets and two freely configurable custom modules is suitable for desk installation using a Bachmann CONI installation frame. When closed, the desk and the desk connection panel form a flat surface.
4-way power strip Bachmann
The CONI module rack 4-way power strip from Bachmann with two sockets and two custom modules (CM) provides free access to the power supply, media supply and data supply on the desk in the office or home office. The modular built-in socket outlet brings flexibility to the workplace, for example in conference rooms and training rooms. The desk connection panel, which can be retracted into the desk, can be closed even when cables are plugged in. At the same time, no cables are pinched thanks to the integrated brush insert. The harmonious appearance of a flat desk is preserved.
Built-in power strip for desks
The discreet socket strip for desk installation is integrated into the desk surface when closed and still offers absolute legroom under the desk thanks to its minimal installation depth. The different surface designs of the CONI built-in frames also provide the necessary design freedom. The configuration of the data connections with the so-called CM (custom modules) can be freely selected. In addition, the respective power strip can be replaced quickly and without tools at any time.
Key features CONI 912.027 multiple socket outlet
- 2x socket outlet with earthing contact
- 2x custom module empty
- Dimensions (LxWxH): 259.5 x 52 x 44 mm
- Power input: H05VV-F 3G1 / 5 mm² in black
- Wieland GST18/3 plug-in connector
- Can be integrated into the table surface
- Table thickness: 10 - 35 mm
- CONI frame installation depth (without mounting kits): 56 mm
- Free choice of configuration
- Quick replacement of the complete power strip
- Retrofitting possible
- Can be combined with Bachmann CONI installation frame
- Material: plastic, aluminium
- Finish: Black
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | CONI COVER |
| Accessories: | Bachmann custom moduls Bachmann Coni Cover Cover Frame long Bachmann Coni Bracket high Bachmann Coni Mounting Frame long |
| Packaging dimensions (LxWxH in mm): | 405 x 75 x 70 mm |
| Scope of delivery: | 1x power strip CONI 912.027 |
| Contains installation material: | - |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Silver/Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
