Bachmann CONI DUO mounting frame short, 2x triple (911.047) black
The black Bachmann CONI DUO 6-way installation frame 911.047 with hinged covers offers space for two 3-way CONI socket units or module carriers. Easy and free access to power, media and data connections is provided from two opposite sides.
Installation frame for retractable table sockets

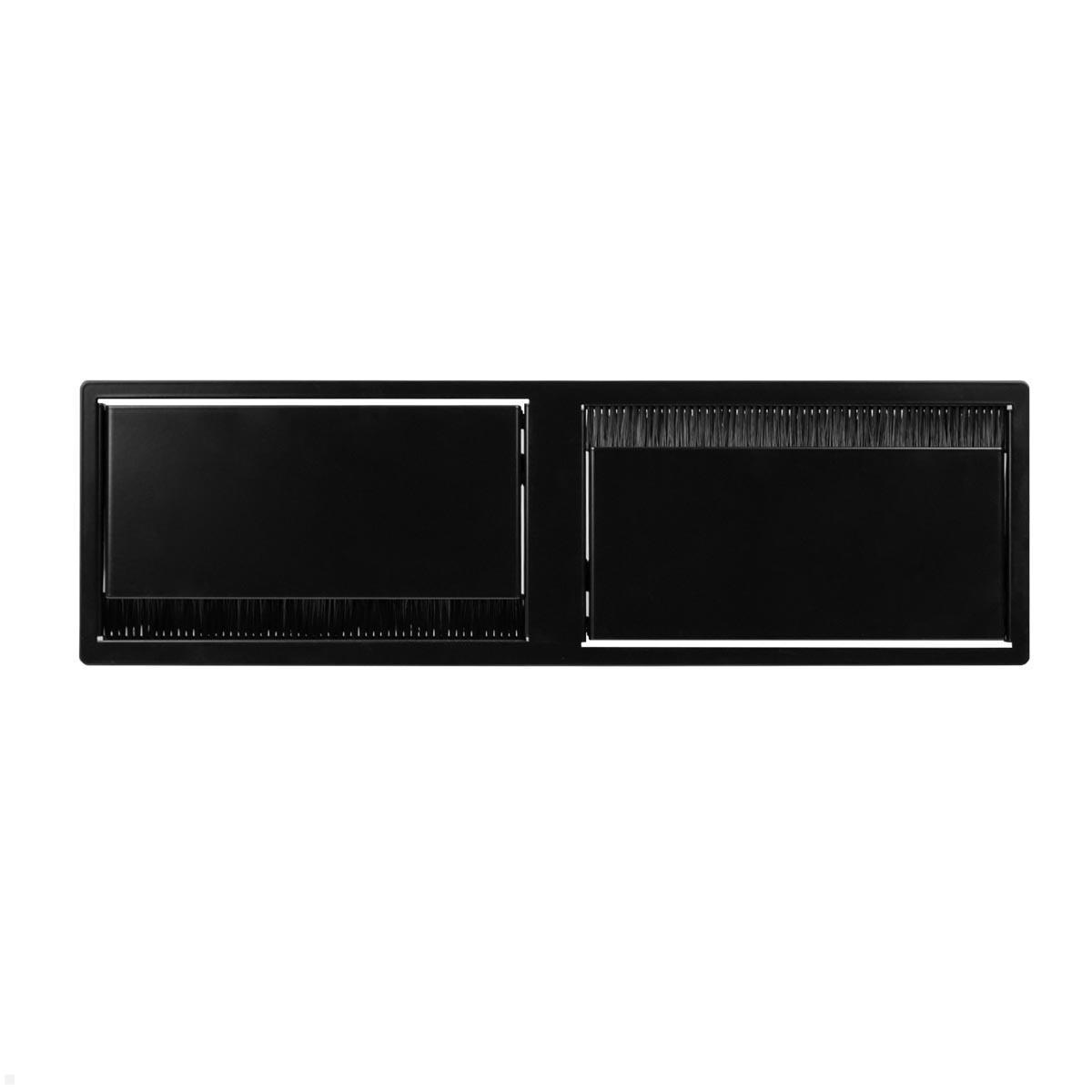

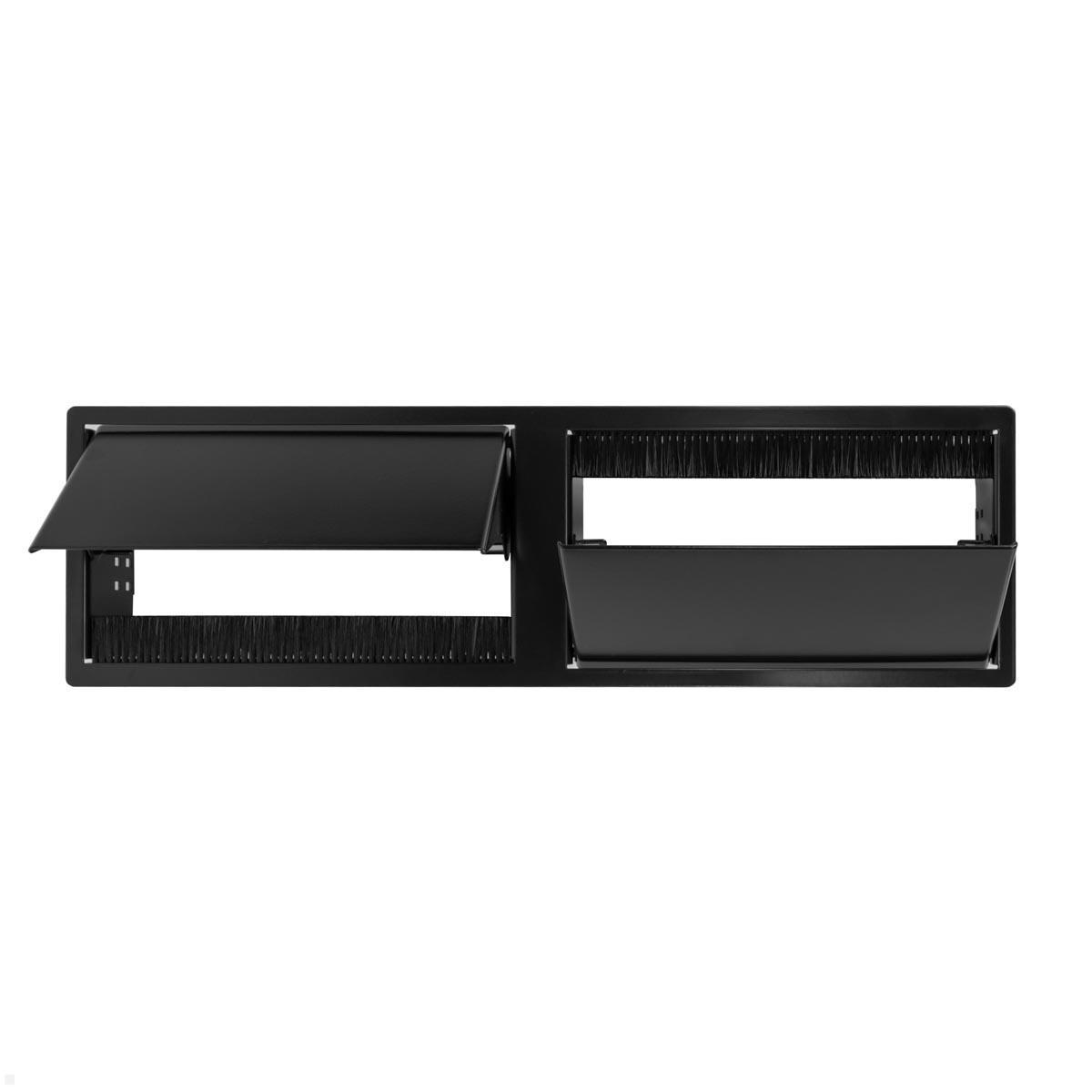

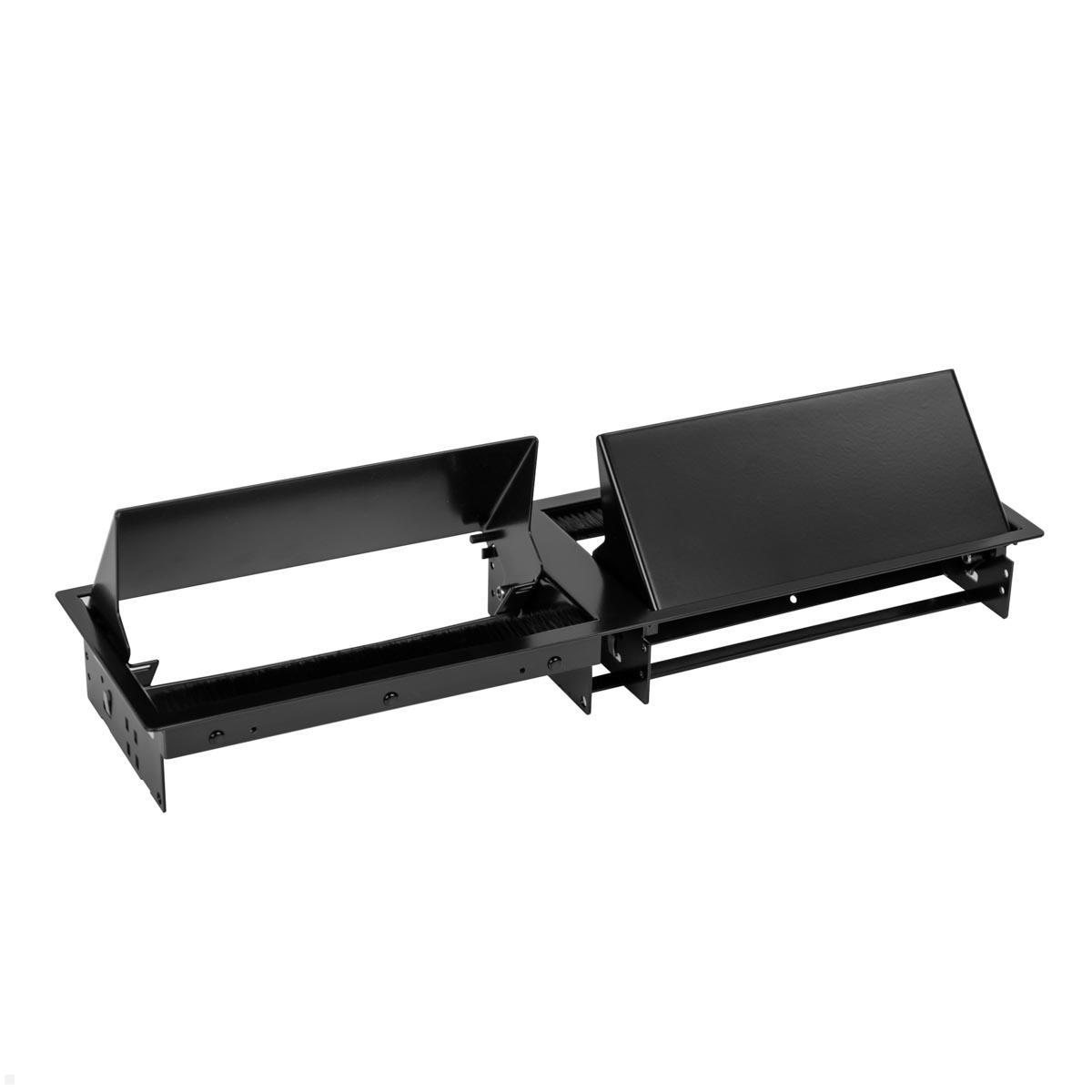

When closed, the Bachmann CONI DUO installation frames are fully integrated into the table surface. The harmonious appearance of a "flat" table is thus preserved. The lid is hinged with an end stop and placed together asymmetrically. Thanks to the brush insert, no cables are pinched, even when closed. Two triple module carriers or socket units can be integrated into the Bachmann CONI DUO installation frame. Various CONI module carriers are available, which either only consist of power connections or are provided with empty fields in which so-called custom modules can be installed. The socket units can be replaced quickly and without tools. Integrated functionality and maximum flexibility not only for the present, but also for all future developments.

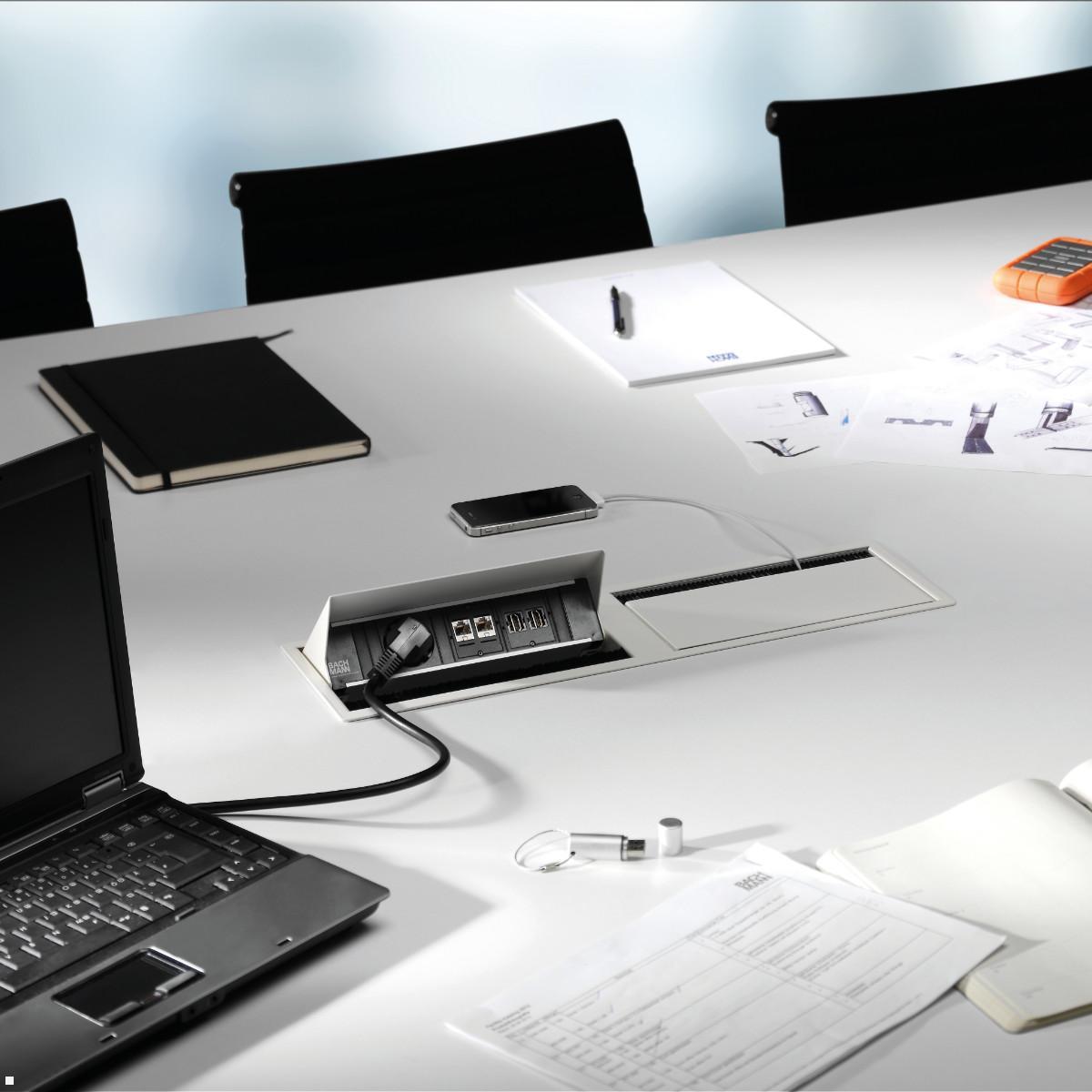

The CONI DUO installation frame for retractable table sockets is ideal for narrow conference tables and training tables, but can also be used in any living and working environment. CONI DUO allows easy and free access to power, media and data connections on the table from two sides. In addition, there is absolute legroom under the table. This black Coni Duo mounting frame is available in different sizes and colors.
Key features Bachmann CONI DUO installation frame, 2 x 3-way 911.047
- CONI DUO installation frame, short, 2 x 3-way
- External dimensions: approx. 505 x 151 mm
- Black similar to RAL9005
Advantages of the Bachmann CONI DUO installation frame
- Access from 2 opposite sides
- Only one table cut-out required
- Completely integrated into the table surface

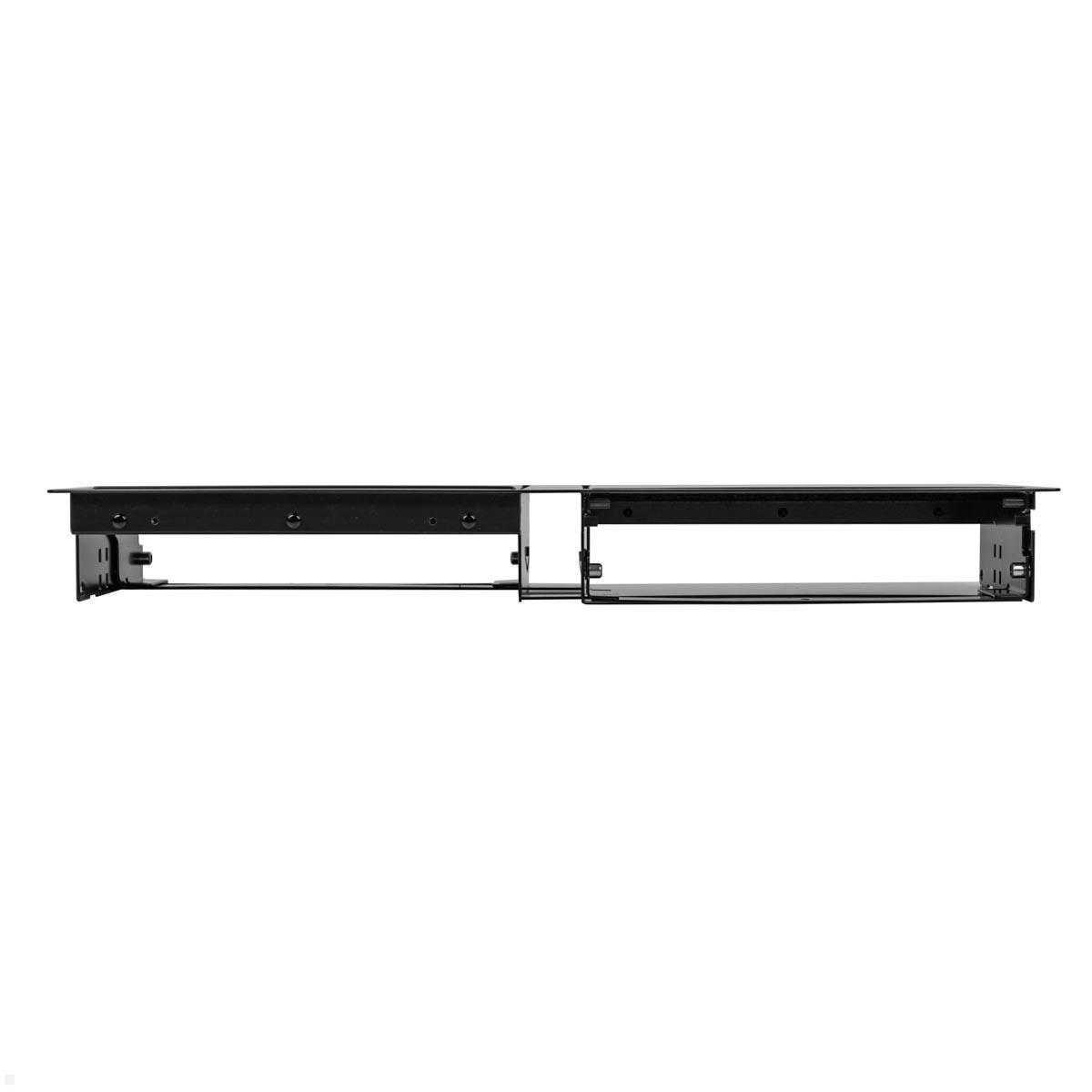

- Minimal installation depth, robust Type of frame

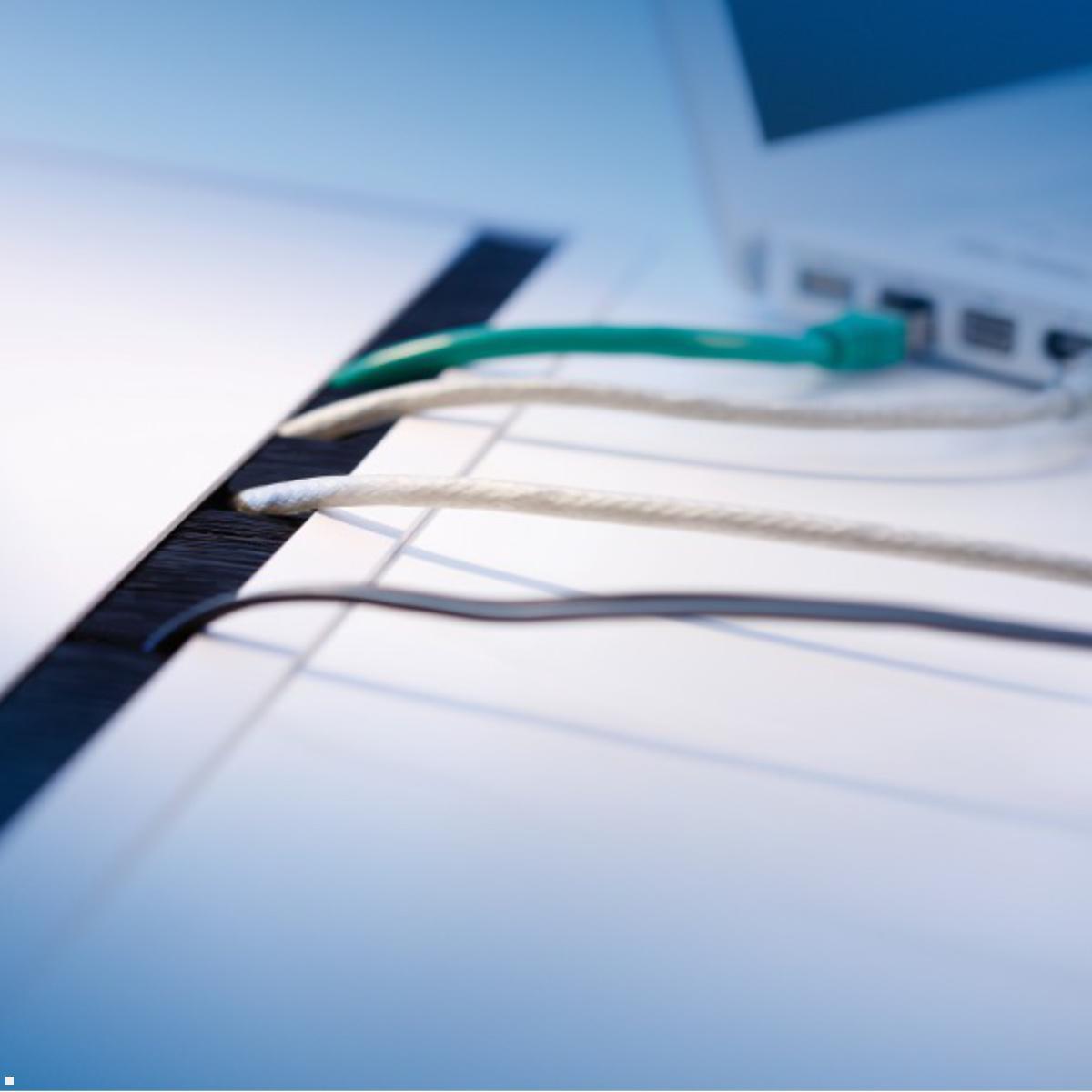

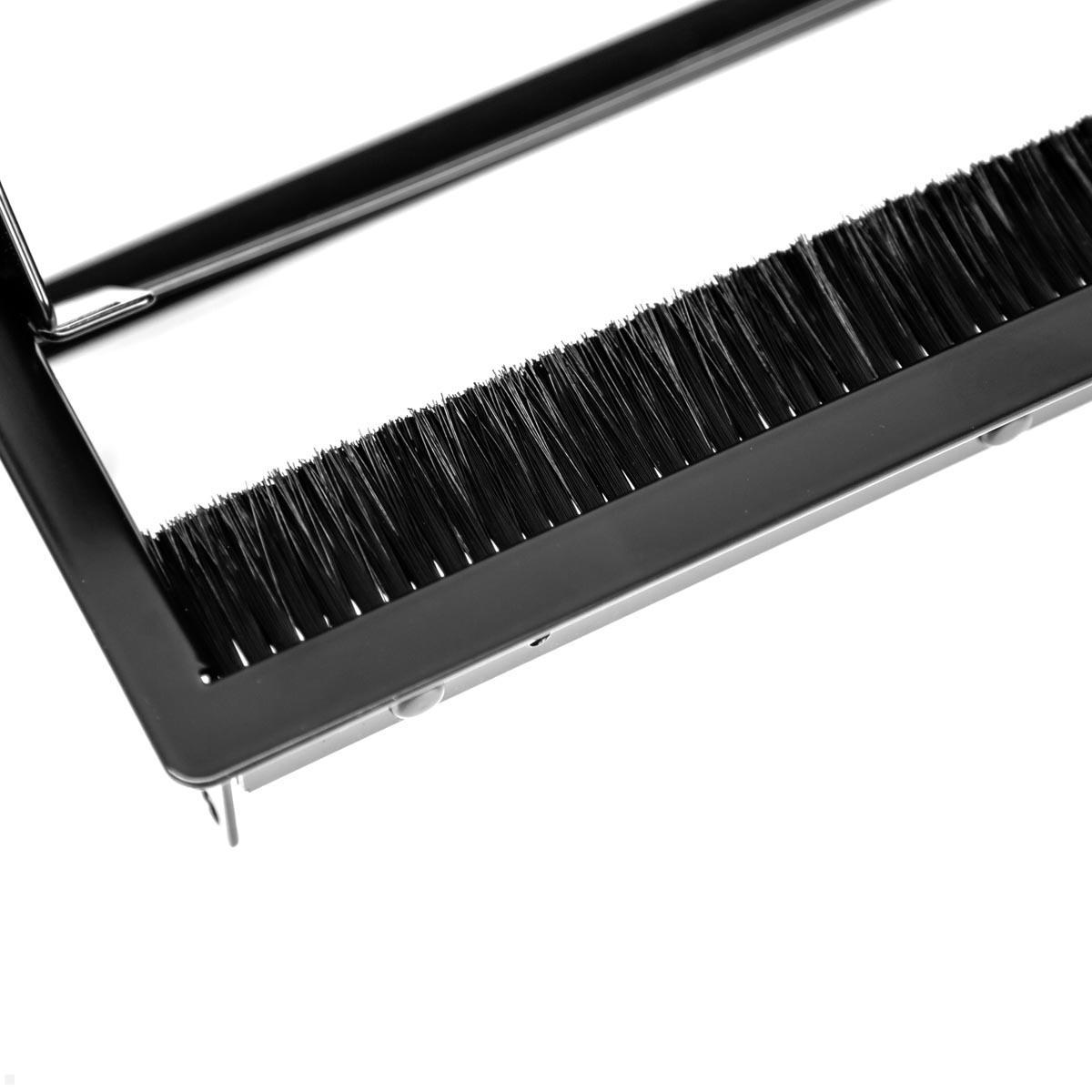

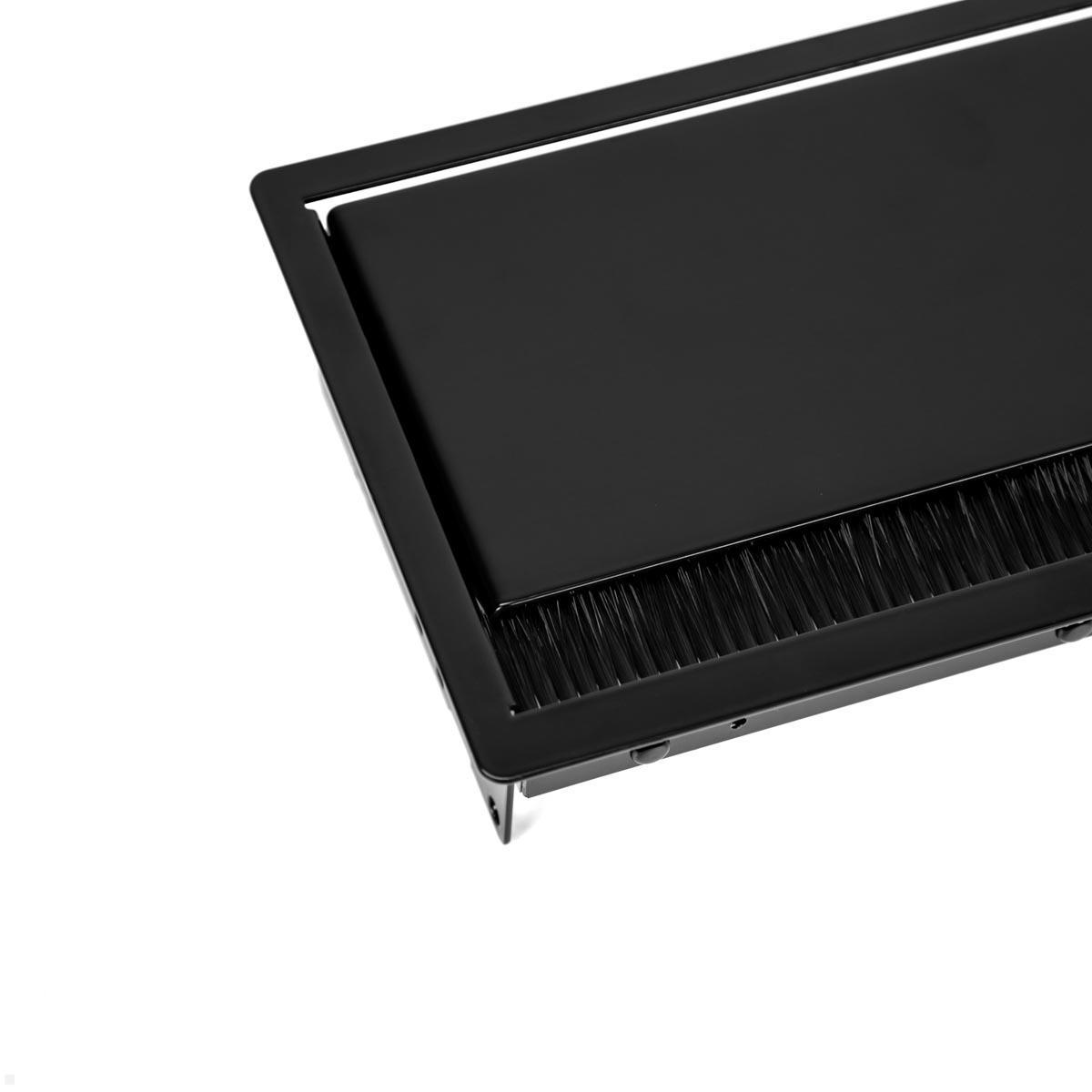

- Integrated brush insert to close when cables are plugged in
- Free choice of configuration
- Quick replacement of the entire socket unit
Does your Bachmann Coni table end panel fit?
We would be happy to check whether your Bachmann product is suitable for your application. Simply send us your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you whether the Bachmann socket strip fits completely and if not, the team will get in touch with you.
| Product sheet: |  [pdf, 178 kb] |
|---|---|

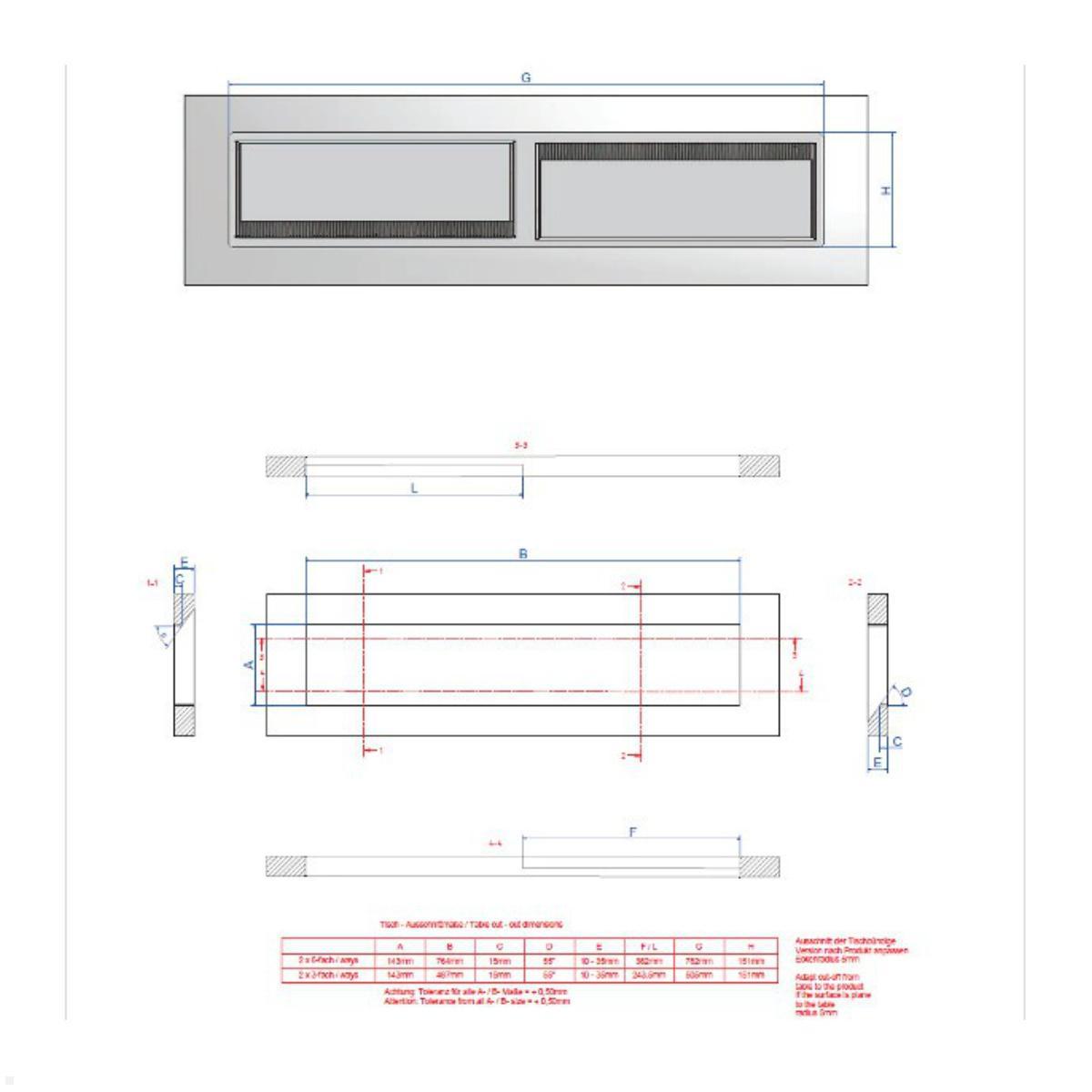

| Technical drawing: | [pdf, 82 kb] |
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf, 253 kb] |
| Warning/safety instructions: | [pdf] |
| Accessories: | Bachmann socket units Bachmann custom Module Bachmann power supply lines |
| Packaging dimensions (LxWxH in mm): | 570 x 230 x 140 |

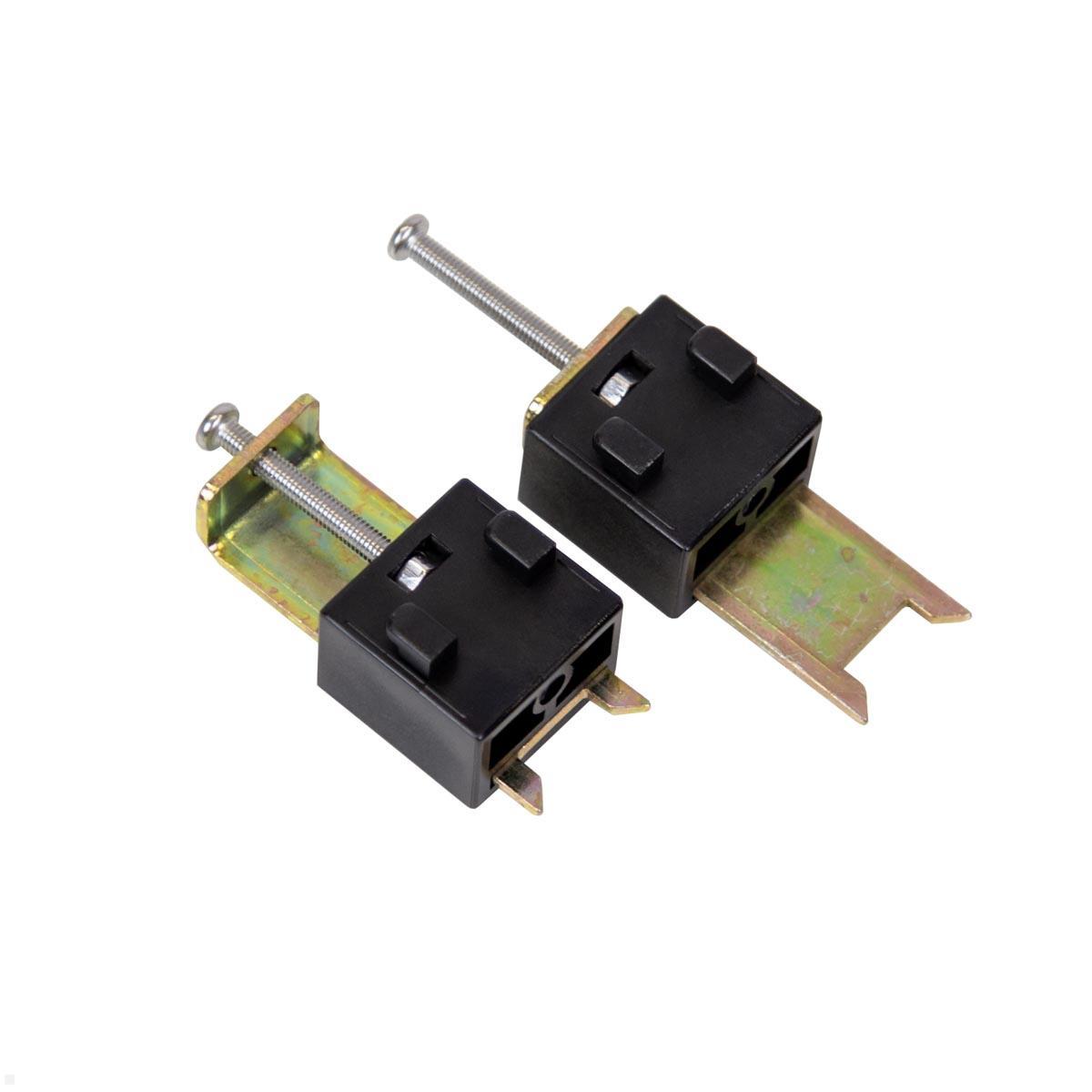

| Scope of delivery: | 1x mounting frame including installation material |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
