Bachmann CONI DUO built-in frame short in silver: CONI twin pack. Designed especially for use with small meeting tables, which have energy and data connections on opposite sides.

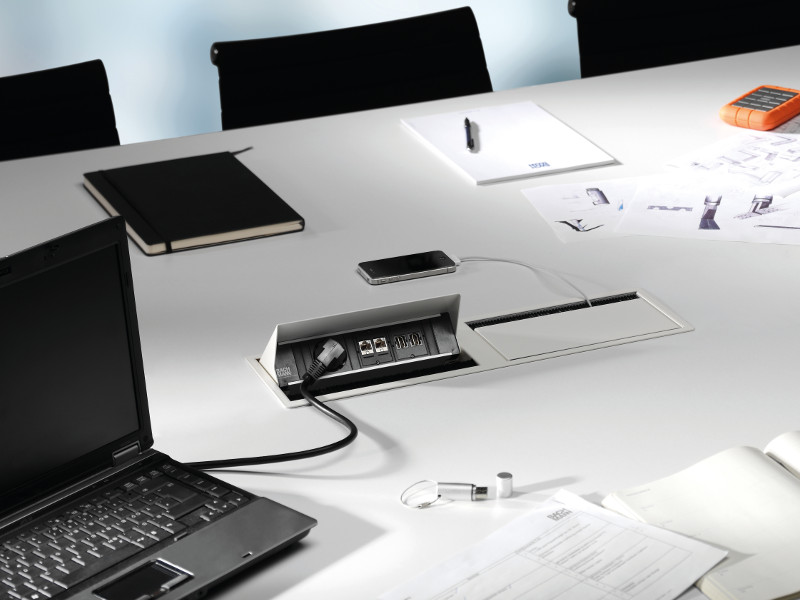

CONI DUO is ideal for narrow conference and training desks and tables. CONI DUO provides simple and unimpeded access to power, media and data connections on the table or desk from two sides. There is no reduction in leg room under the desk or table.
Bachmann CONI DUO built-in frame short 2x 3-way 911.026 in silver
When not in use, CONI DUO built-in frame integrates fully into the surface of the desk or table. When you need power, data or media, simply open one of the two covers, plug into the desired socket and close the cover again. The brush insert prevents the cables from jamming. The harmonious appearance of an "even" table is retained.
Coniguration of Bachmann CONI DUO data connections can be freely selected (see custom modules). Power strips can also be interchanged quickly, and at any time, without the need for tools. Integrated functionality and maximum lexibility not just for today but also for the advances of tomorrow.
Key features Bachmann CONI DUO built-in frame 6-way 911-026
- CONI DUO built-in frame long 6-way: 2 x 3-way
- Dimensions: approx. 505 x 151 mm
- Silver grey, similar to RAL9006
Advantages Bachmann CONI DUO built-in frame
- Access from 2 opposite sides
- Just one desk or table cut-out needed
- Integrated into your desktop or tabletop
- Minimum built-in depth, robust frame design

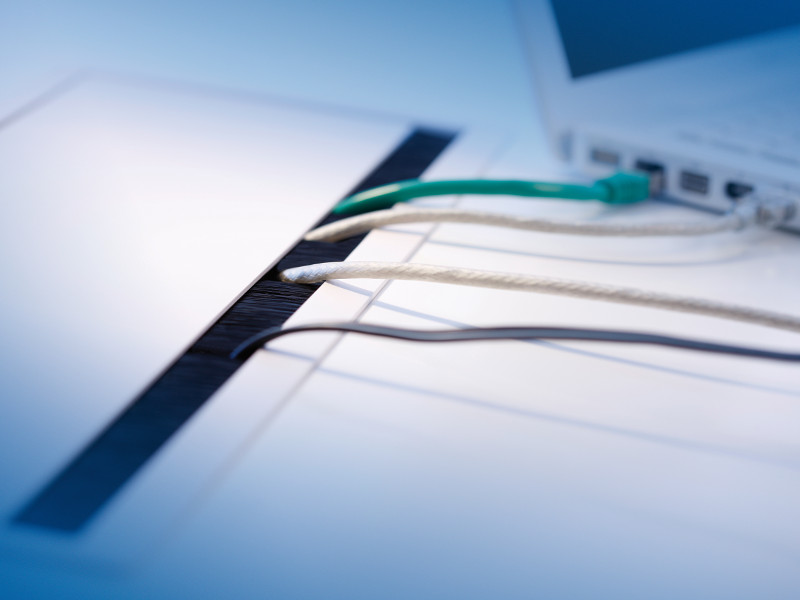

- Integrated brush insert for closing once cables have been plugged in
- Free choice of configuration
- Quick replacement of the entire power strip
Does your Bachmann Coni table circuit box fit?
We will gladly check if your Bachmann product is suitable for your application. Simply send us at the end of the ordering process in the comment box your model (Manufacturer + model no.). We then check for you whether the Bachmann power strip fits completely and if not, we will contact the team for you.
Product sheet: | [pdf, 178 kb] |
---|---|

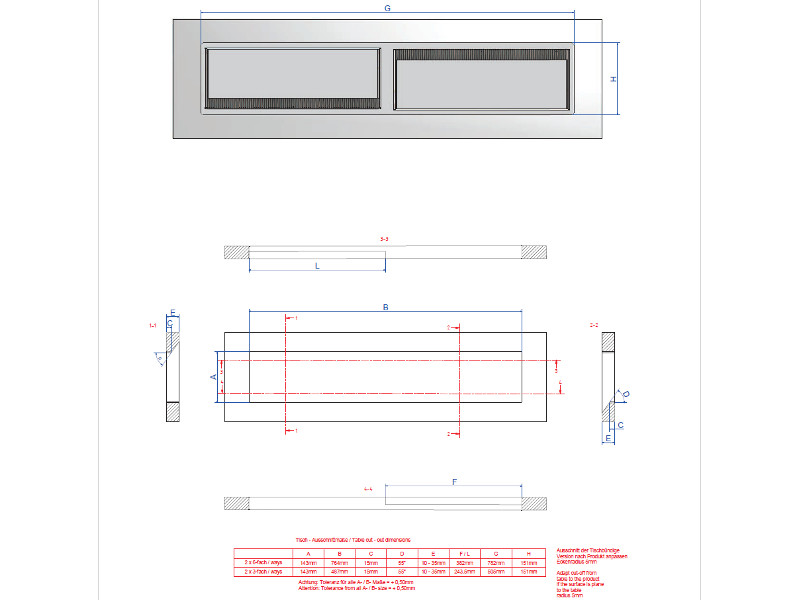

Technical drawing: | [pdf, 82 kb] |
RoHS / REACH: | [pdf, 110 kb] |
Installation manual: | [pdf, 253 kb] |
Warning/safety instructions: | [pdf] |
Accessories: | Bachmann power strips Bachmann custom modules Bachmann power spply |
Contains installation material: | + |
Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
color: | Silver |
Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
