Bachmann CONI built-in frames, large, anthracite (338.0206)
The Bachmann CONI built-in frames large anthrazite (338.0206) is of the table frame series Bachmann CONI.
Bachmann CONI built-in frames, large in anthracite (338.0206)
Bachmann CONI built-in frames are available in short and long versions. The installation depth is 56 mm, suitable for panel thicknesses from 10 mm. The brush strips can easily be replaced with color and brush strips. For this purpose, only the expansion of the mounting frame of the tabletop and the release of three reusable Kunsttoffnieten is necessary. The R5 corner radius facilitates flush mounting in desks or tables.
Key features Bachmann CONI built-in frames large 338-0206

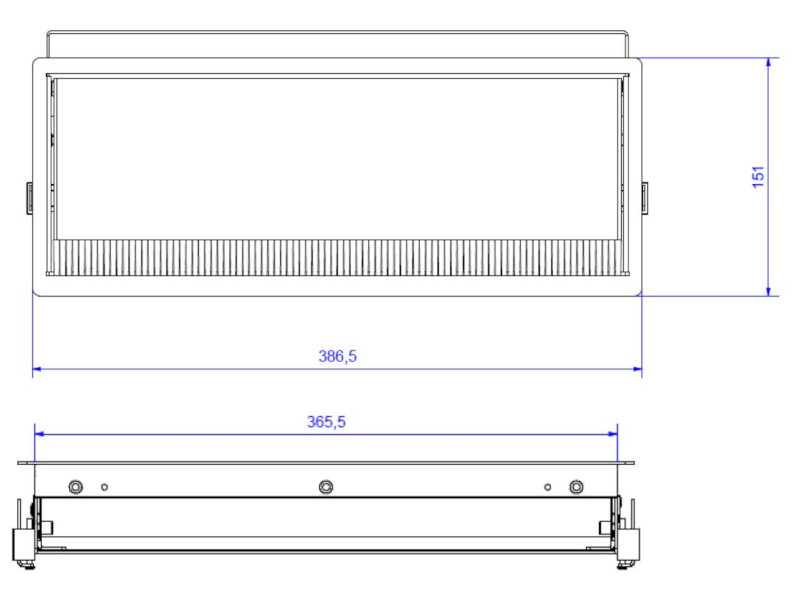

- Outer dimensions: 386,5 x 151 mm
- Finish: Anthracite, similar to RAL 7016
- Built-in depth: 56 mm
- Desk or table top thicknesses: up 10 mm
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
