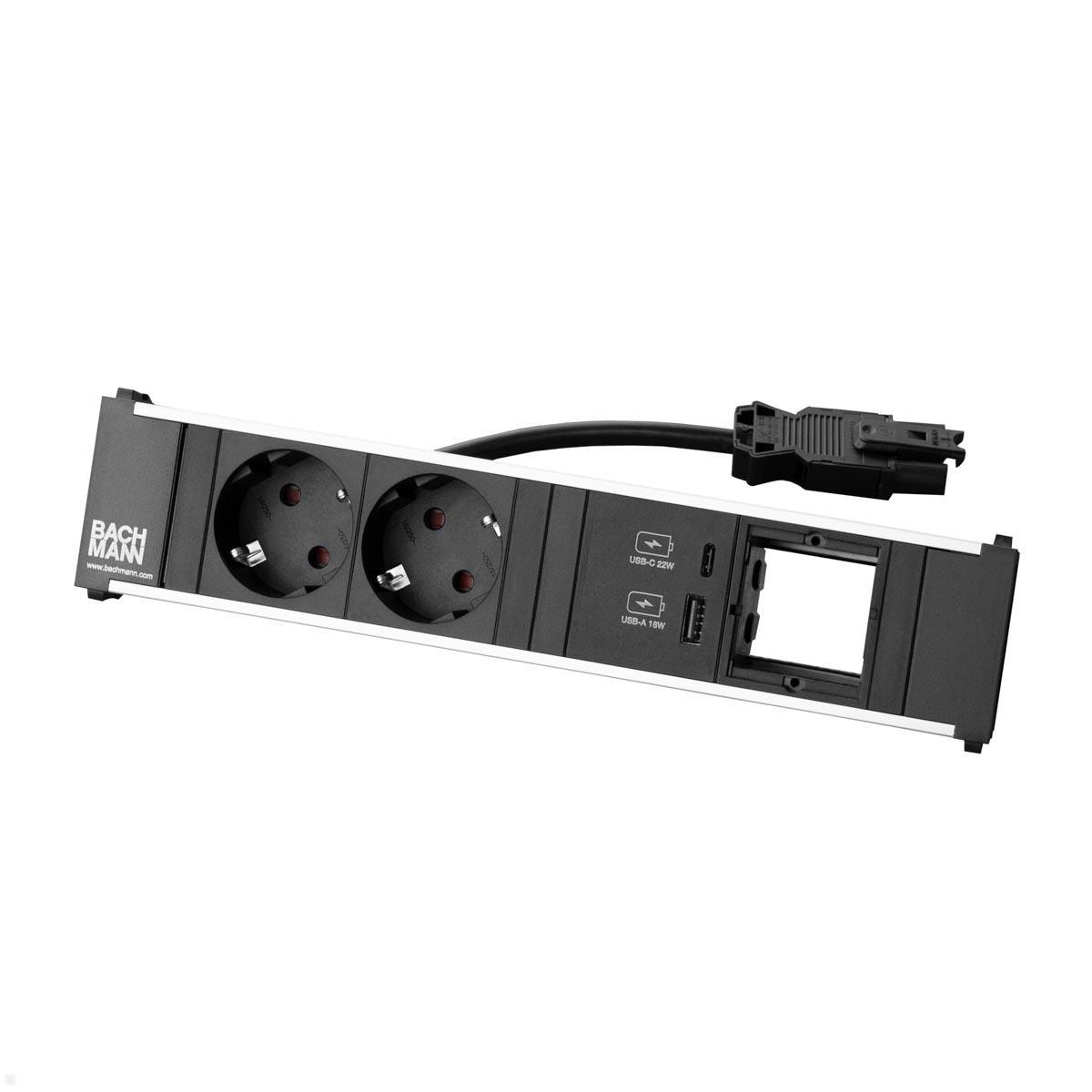

Bachmann CONI 4-way power socket unit 2x socket 1x USB A/C 1x CM (912.08730)
The Bachmann CONI 4-way socket unit for table installation with 2x sockets, 1x USB charger A/C and 1x custom module carrier (912.08730) is suitable for the Bachmann CONI installation frame.

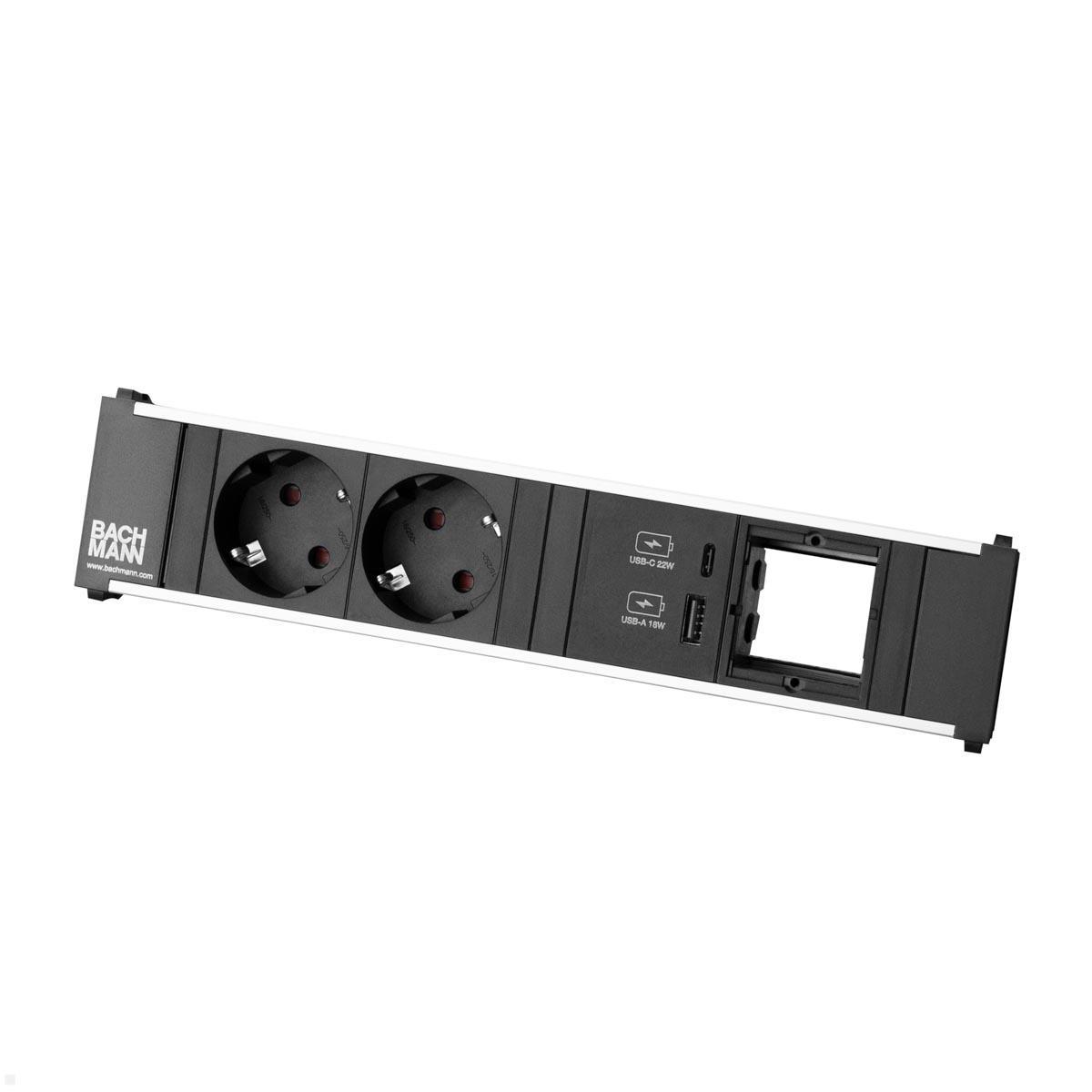

Bachmann CONI 4-way built-in socket with USB charger A/C
The Bachmann CONI 4-way built-in power strip (912.08730) is equipped with two sockets, one fillable custom module carrier and one USB C and one USB A access. With its thoughtful design, it is the ideal choice for use in homes, offices, conference rooms and other environments. Thanks to its minimal installation depth, the powerstrip provides enough space, even when installed close to the edge. The Bachmann CONI table connection panel with USB A/C is for table installation and can be combined with various installation frames (CONI installation frame, CONI DUO, CONI COVER, TWOFOLD COVER). The configurations offer various installation options. All installation frames are integrated into furniture surfaces. The harmonious appearance of a “flat” table is preserved. This socket unit has a Wieland GST18i3 plug and a 0.2 m long supply cable, which ensure easy installation and a secure connection.
Key features Bachmann multiple socket CONI 912.08730
- 4-way socket unit with 2x socket, 1x CM, 1x USB A/C charger
- Length: 260 mm
- 1x custom module (CM) empty
- 2x socket, 2-pin, CEE 7/3 (Type F)
- 1x USB charger A&C (22 W)
- Rated current/rated voltage: 16 A / 250 V
- Frequency: 50 Hz
- Supply line: 0. 2 m, H05VV-F, 3G1.5 mm²
- Color: Black

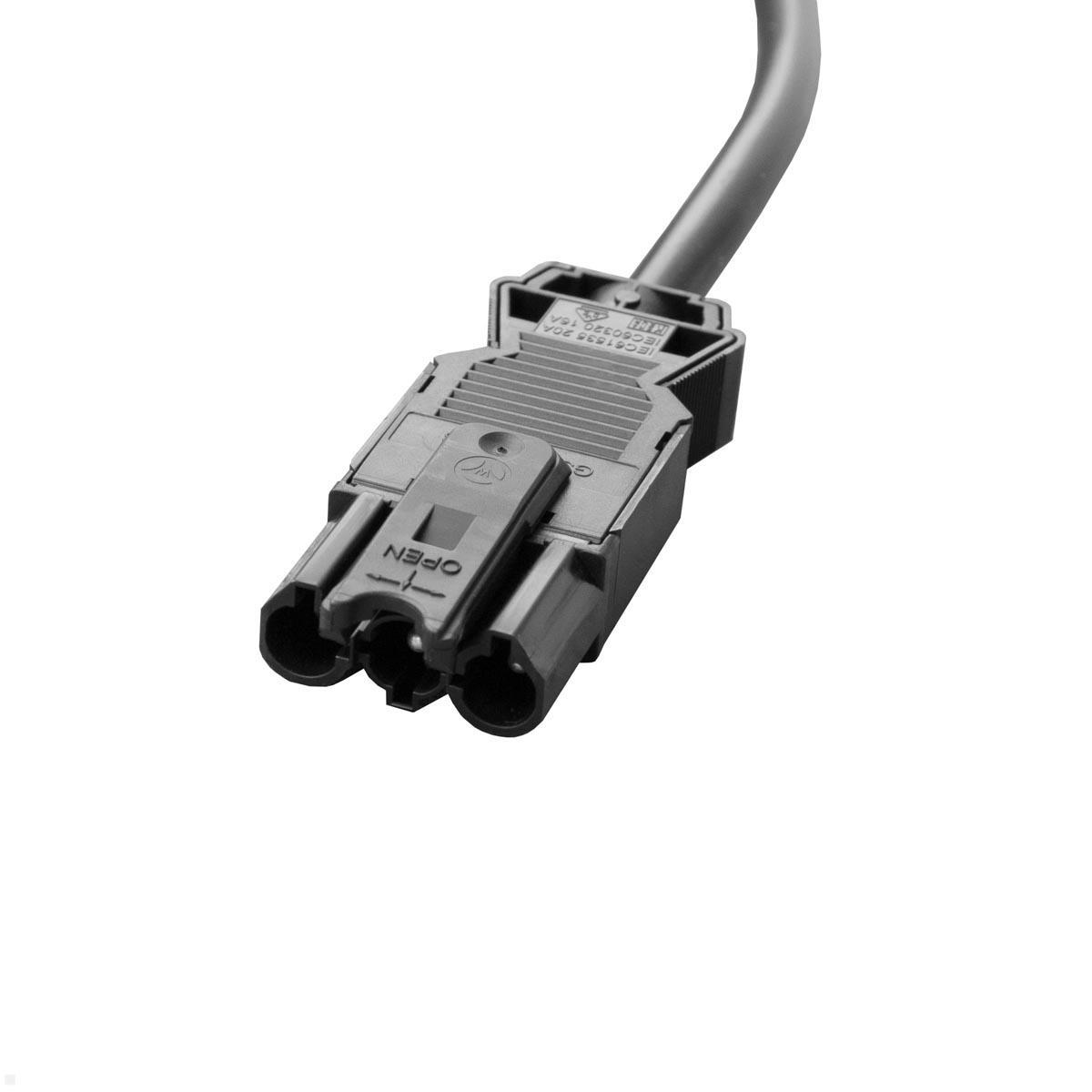

- Plug: Wieland GST18i3
- Material: aluminum, anodized
| Product sheet: |  [pdf] |
|---|---|

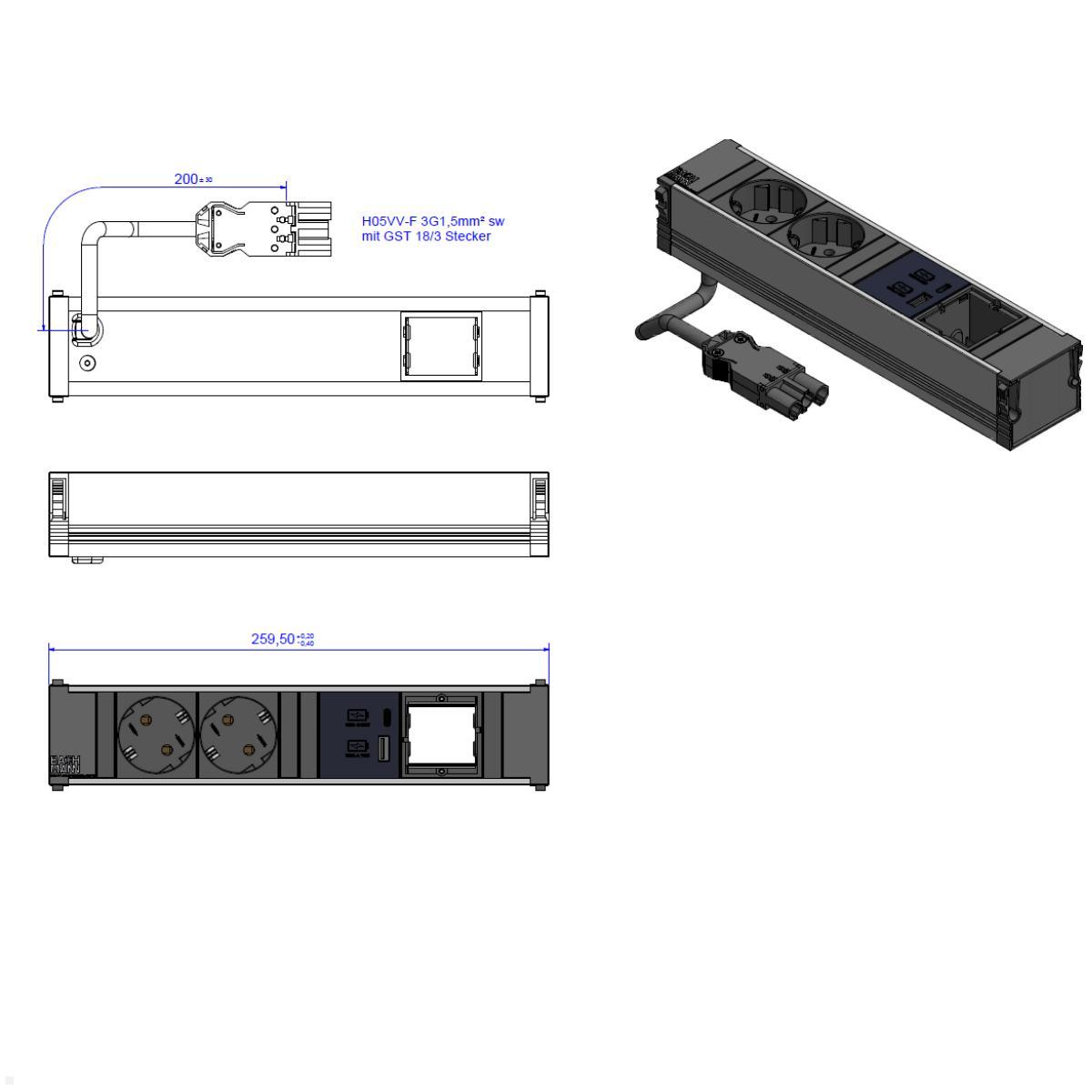

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | 1 x Bachmann Coni 4-way power strip with supply cable and plug |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Black |
| USB-Charger: | USB A/C |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
