Bachmann CONEO set installation socket 4-way 4x socket (900.423)

4x built-in socket, CONEO Bachmann, table connection panel

The Bachmann CONEO built-in multiple socket (900.423) is equipped with 4x protective contact sockets . The power strip is a quick and easy solution for elegantly integrating power and data connections into furniture. The set consists of a mounting frame and a four-way power strip.

Multiple socket for table mounting

The built-in socket from Bachmann guarantees great flexibility through the use of custom modules. Thanks to the minimal installation depth, installation close to the edge is also possible. Installation is quick and easy using a special double-sided adhesive tape. All cables can be used perfectly even when closed.

Technical details Bachmann CONEO power strip

• Colour: gray metallic (powdered, similar to RAL 9006) li>

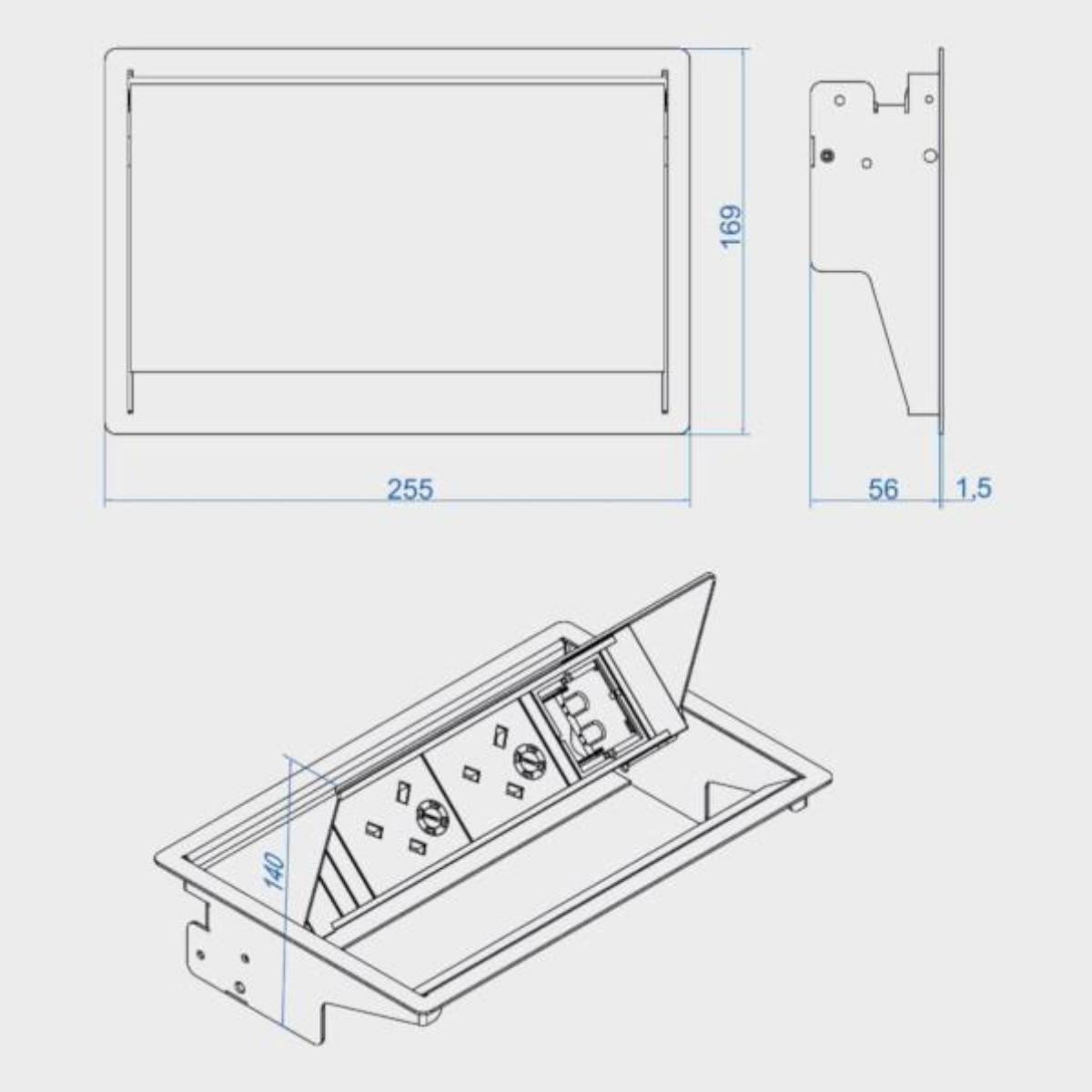

• Dimensions (WxHxD): 256 x 169 x 58 mm
• 4x protective contact socket - 35° rotated
• 2-pole sockets with protective contact
• Power input: 0.2m cable and GST18 plug
• Installation depth frame: 56 mm
• Plate base ;strength: all thicknesses - product is glued
• Installation frame material: sheet steel
• Socket material: plastic aluminum
• End caps: riveted, cannot be reconnected< /li>
• Hungable cover with end stop and locking point
