Bachmann 19 inch power strip BlueNet BN0500 24x C13, 6x C19, 6x sockets (800.2402)
The Bachmann power strip 800.2402 is an IT PDU 19 inch power strip with one height unit 1U aluminium profile for power distribution in the data centre and use in the IT server rack. The power distribution unit contains 24x C13 appliance sockets, 6x C19 mains sockets and 6x earthed sockets and is equipped with the BlueNet technology BN0500. BlueNet PDUs collect consumption and power data and provide the user with relevant data and control options for modern energy management.
Power strip inch rack

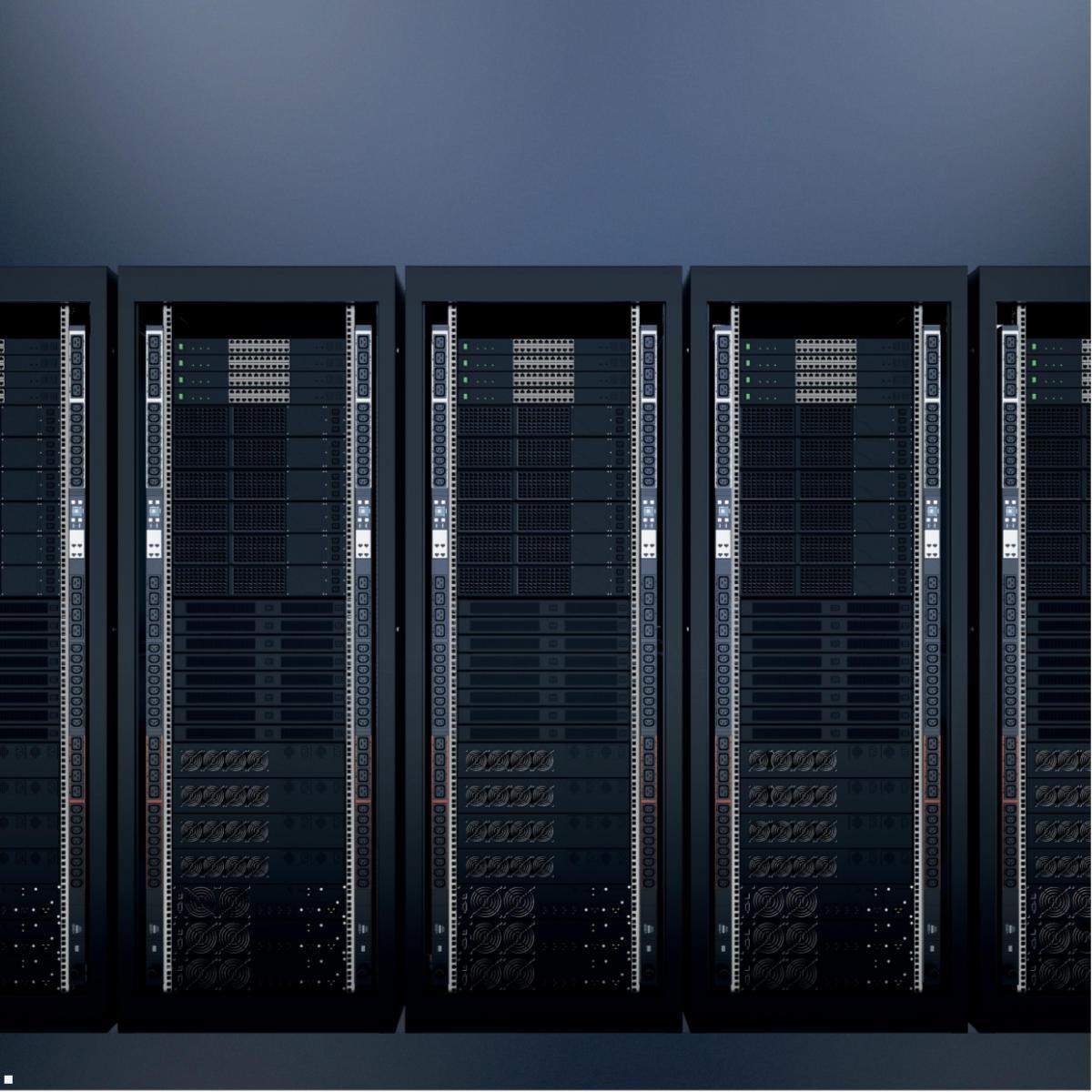

The power strip 19 inch rack 800.2402 from Bachmann is an IT PDU with one height unit 1 U for server racks with which energy costs can be easily monitored. For this purpose, all consumption data as well as performance data are shown via software and display. The loads can be distributed in such a way that failures due to overloaded circuits are excluded and automatic messages are triggered by means of adjustable threshold values. Restarts via web connection additionally increase availability and flexibility. In addition, the integration of BlueNet technology into higher-level software solutions is easily possible due to the extensive, integrated interfaces.
Multi-outlet power strip with integrated measuring function 800.2402

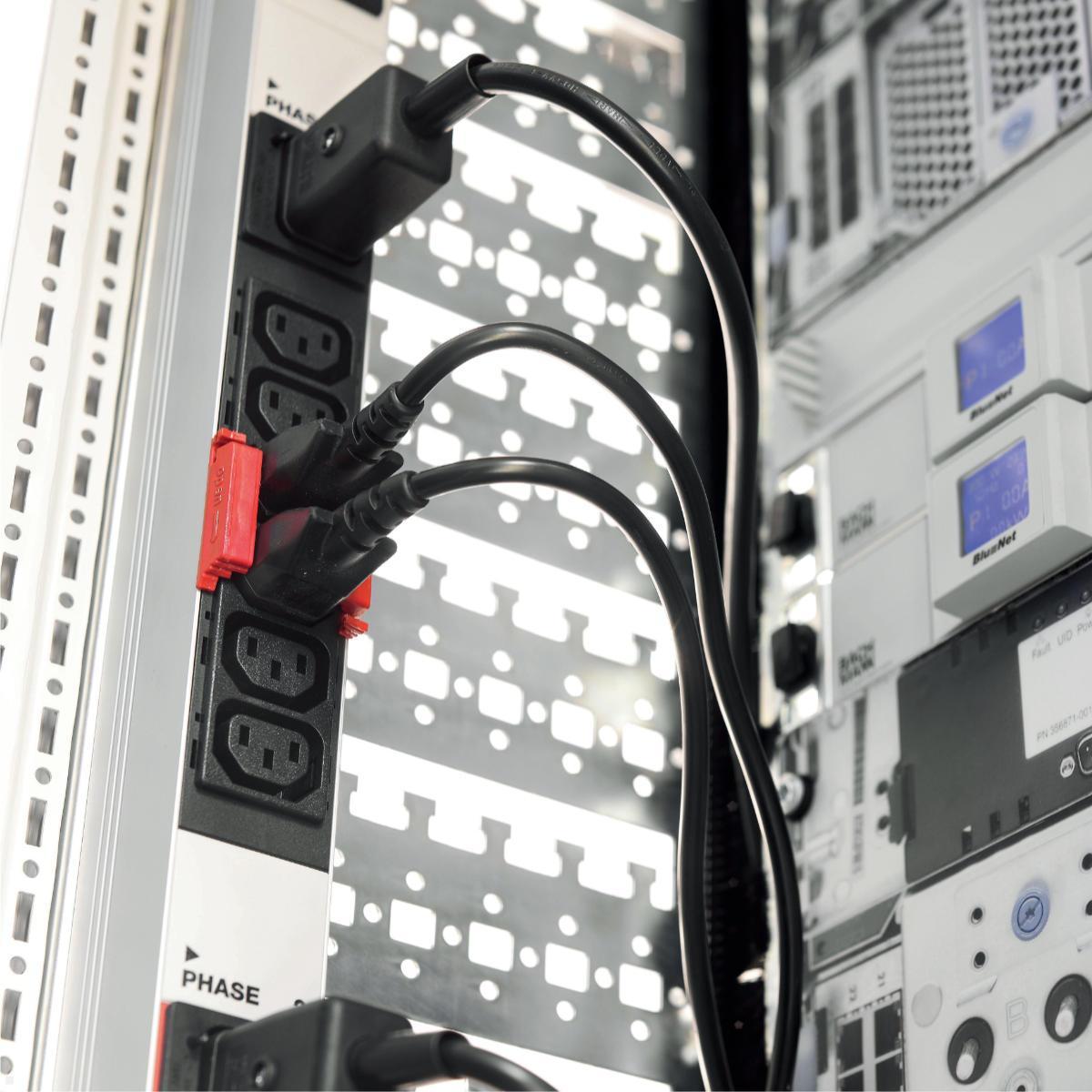

Overall, the 19" power strip BN0500 800.2402 convinces with easy handling. The 36-way PDU has 24 C13 sockets, 6x C19 sockets and 6x protective contact sockets type F. An integrated current, power and energy measurement provides a clear overview of the capacity utilisation of the power supply to your IT server racks. The IT PDU multiple socket outlet with illuminated LC display shows the most important information about the power supply via display on the integrated LC display directly in the IT rack.
Technical details Bachmann 19 inch socket strip BlueNet (800. 2402)
- PDU 1U with 3 phases
- Phases colour-coded (red, black, grey)
- Per phase: 8x C13, 2x C19, 2x CEE7/3
- 19 inch rack compatible
- Structure of the BN0500 PDU:
- 24x IEC320 C13 sockets
- 6x C19 sockets
- 6x earthing contact sockets CEE7/3
- Input voltage: 230V AC 50Hz
- Display on illuminated LC display
- Integrated measurement of current (A), active power (kW), voltage (V), frequency (Hz), phase angle (°) and energy
- Resettable energy counter (value remains stored even without power supply)
- Cable: 3.0m H05VV-F 5G2.50mm² black with CEE 16A plug red
- Measure (WxHxD): 1787 x 44 x 47 mm
- Incl. Mounting bracket with screws
- Measuring accuracy +/- 2%
- Profile: ALU anodised, plastic parts black
- Space-saving and modularly expandable integration of the PDU into the server rack
Further information - fixed equipment DGUV V3 / Download
According to DGUV V3, operators or companies have to ensure that the PDU is installed in the server rack. According to DGUV V3, operators or companies must ensure that the testing of electrically fixed equipment and systems is carried out regularly (so-called repeat tests). Socket outlets are considered to be fixed equipment. Repeat testing of the equipment must be carried out every 4 years. The Association of Property Insurers recommends the monitoring of TN-S systems by residual current monitoring devices (RCM / VdS 2349-1) across all sectors. A major advantage of using an RCM is the elimination of insulation measurement. The servers no longer have to be shut down. Find out more about the legal requirements for operating a server room and how you can save costs with residual current monitoring in our Info-Center. There you will also find information on cascading sockets, for example. In the download area you can easily and quickly download the BlueNet catalogue, the Bachmann general catalogue or a flyer on the subject of „Modern energy management thanks to intelligent PDUs“.
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 2000 x 115 x 100 mm |
| Scope of delivery: | 1x BN0500 ALU 1U power strip, 2x mounting brackets |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 6 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
