Bachmann 19 inch power strip 1+4 Masterslave 1U (333.407)
The Bachmann Masterslave power strip 333.407 is a 19 inch PDU power strip with 1U Alu-Profile for an efficient power distribution in the datacenter, server rack, or network rack. The power distribution unit contains a Master socket outlet, 4x german type socket outlets with Slavefunction and a 2,0m power supply cable with right-angled earthing contact plug.
Bachmann 19" power strip 4+1 Master & Slave 1U (333.407)
With its IT PDU Basic BACHMANN provides a huge choice of PDUs in a high-quality aluminium profile. With their extremely compact size of just 1 height unit and 44 mm in depth the Bachmann PDU 333.407 can be easily integrated into your IT rack. Their multi-functional mounting brackets allow the units to be easily mounted in various ways (e.g. inwardly recessed).
Key features Bachmann 19inch 4+1 Masterslave power strip 1U (333.407)
- IT PDU Basic 1U (230V / 50Hz)
- Plug: right-angled earthing contact plug
- 4x german type socket outlets, 35° twisted, grey with Slavefunction
- 1x german type socket outlet, 35° twisted, grey with Masterfuntion
- Integral LED indicates switching state

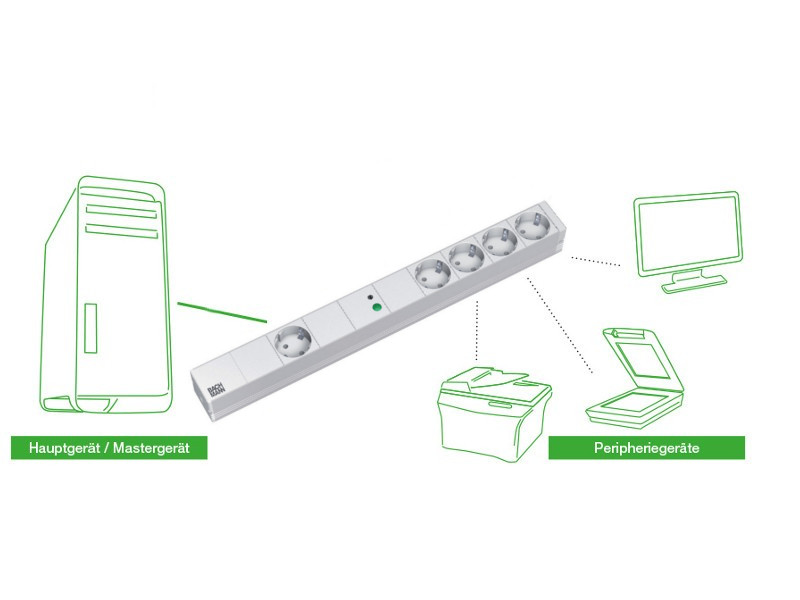

- Automatically isolates the master unit and all slave units from the mains supply once the master
unit is shut down/switched off - Automatically switches on master device and all slave devices once master device has been
switched on - Power supply: 2,0m H05VV-F 3G 1,50 mm²
- Rated voltage: 230V
- Dimensions (WxHxD): 438,5 x 43,7 x 44 mm
- Incl. 2x mounting metal flanges
- End caps riveted, non rewireable
- Finish profile: grey RAL 7035
